ILSCO®

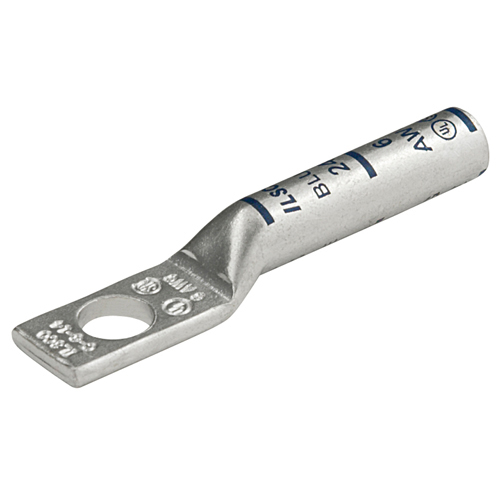

ILSCO® CLNS-3-38 SureCrimp® CLNS 1-Hole Compression Lug Without Sight Hole, 3 AWG, 3/8 in Stud, I-29, Copper
Custom_Product_Images_Illustration
ILSCO®
ILSCO® CLNS-3-38 SureCrimp® CLNS 1-Hole Compression Lug Without Sight Hole, 3 AWG, 3/8 in Stud, I-29, Copper
SKU520176
MFGR #CLNS-3-38
Your Cost: $13.09/ea
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CLNS, 3 AWG Conductor, Die Code: I-29, 600 VAC, 3/8 in Stud, 0.875 in L x 0.593 in W Tongue, 2.255 in Overall Length, Long, 1-1/8 in L Barrel, 90 deg C, Copper, White, 0.275 in ID x 0.375 in OD
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CLNS, 3 AWG Conductor, Die Code: I-29, 600 VAC, 3/8 in Stud, 0.875 in L x 0.593 in W Tongue, 2.255 in Overall Length, Long, 1-1/8 in L Barrel, 90 deg C, Copper, White, 0.275 in ID x 0.375 in OD
ARRA Compliant C Barrel Size 0.275 in ID x 0.375 in OD x 1.125 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number CLNS-3-38 Color White Country of Origin US Currency USD Dimensions 0.532 in W EU RoHS Indicator C Gross Weight Per Pack 0.0340 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.38 in Height [Metric] 0.9525 cm Length 2.26 in Length [Metric] 5.7277 cm Mounting Hole Size 0.406 in Overall Length 2.255 in Series CLNS Specifications 1.187 in L Wire Strip Standards ARRA CompliantBuy American Act CompliantNEBS Level 3UL 467UL 486A-486B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 0.875 in L x 0.532 in W x 0.1 in THK Type 1-Hole UNSPSC 39121448 UPC 11 78366963174 UPC 12 78366963174 Voltage Rating 600 VAC to 35 kV VAC Width 0.53 in Width [Metric] 1.3513 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 6 to 3 AWG Conductor Type Flex Copper Die Code ILD-29 Material Tin Plated Copper Stud Size 3/8 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die Manufactured from high strength seamless copper tubing, electro-tin plated Color coded Offers maximum conductivity and excellent crimping characteristics Provides low contact resistance For easy conductor insertion Identifies the proper compression die Application versatility Reduces inventory requirements Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used 1 mounting hole 4 AWG flexible alternate conductor size Without sight hole Electro-tin plated Long barrel length with chamfered entry 8 AWG to 500 kcmil, 8 to 2 AWG solid UL467 listed for grounding and bonding applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.275 in ID x 0.375 in OD x 1.125 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | CLNS-3-38 |
| Color | White |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.532 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0340 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.38 in |
| Height [Metric] | 0.9525 cm |
| Length | 2.26 in |
| Length [Metric] | 5.7277 cm |
| Mounting Hole Size | 0.406 in |
| Overall Length | 2.255 in |
| Series | CLNS |
| Specifications | 1.187 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act CompliantNEBS Level 3UL 467UL 486A-486B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 0.875 in L x 0.532 in W x 0.1 in THK |
| Type | 1-Hole |
| UNSPSC | 39121448 |
| UPC 11 | 78366963174 |
| UPC 12 | 78366963174 |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Width | 0.53 in |
| Width [Metric] | 1.3513 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 6 to 3 AWG |
| Conductor Type | Flex Copper |
| Die Code | ILD-29 |
| Material | Tin Plated Copper |
| Stud Size | 3/8 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Manufactured from high strength seamless copper tubing, electro-tin plated |
| Color coded |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| 1 mounting hole |
| 4 AWG flexible alternate conductor size |
| Without sight hole |
| Electro-tin plated |
| Long barrel length with chamfered entry |
| 8 AWG to 500 kcmil, 8 to 2 AWG solid UL467 listed for grounding and bonding applications |
