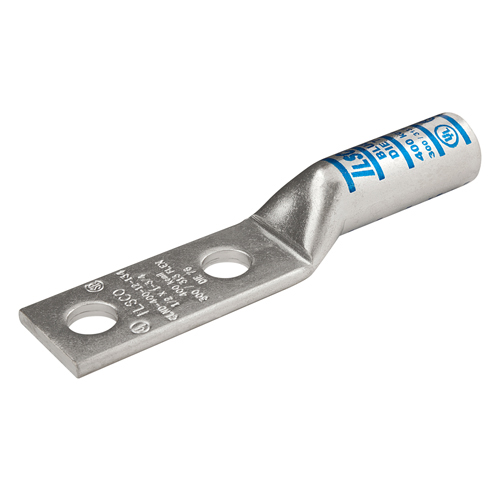

ILSCO® CLND-650-12-134 CU CMP NO SYT
SKU956697
MFGR #CLND-650-12-134
$/ea
ILSCO CU CMP 650 KCMIL 9/16-1-3/4 TUL CSA LONG BARREL, NO SIGHT
ILSCO CU CMP 650 KCMIL 9/16-1-3/4 TUL CSA LONG BARREL, NO SIGHT
ARRA Compliant C Barrel Size 2.687 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number CLND-650-12-134 Color Pink Country of Origin US Currency USD Dimensions 0.958 in ID x 1.217 in OD EU RoHS Indicator C Gross Weight Per Pack 0.9130 lb Gross Weight per Pack Metric 0.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 1.26 in Height [Metric] 3.2055 cm Length 6.56 in Length [Metric] 16.6522 cm Mounting Hole Size 0.562 in Dia Overall Length 6.556 in Specifications 2.749 in L Strip, 1-3/4 in Mounting Hole Spacing Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 486A/486B/453G File No. E6207CSA File No. LR29601NEBS3PROP65: it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 3 in L x 1.764 in W x 0.259 in THK Type 2-Hole Type CLND UNSPSC 39121448 UPC 11 78366964810 UPC 12 78366964810 Voltage Rating 600 VAC Width 1.76 in Width [Metric] 4.4806 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 350 to 650 kcmil Conductor Type Flex Copper Die Code 99 Material Copper Stud Size 1/2 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 2.687 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | CLND-650-12-134 |
| Color | Pink |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.958 in ID x 1.217 in OD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.9130 lb |
| Gross Weight per Pack Metric | 0.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 1.26 in |
| Height [Metric] | 3.2055 cm |
| Length | 6.56 in |
| Length [Metric] | 16.6522 cm |
| Mounting Hole Size | 0.562 in Dia |
| Overall Length | 6.556 in |
| Specifications | 2.749 in L Strip, 1-3/4 in Mounting Hole Spacing |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 486A/486B/453G File No. E6207CSA File No. LR29601NEBS3PROP65: it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 3 in L x 1.764 in W x 0.259 in THK |
| Type | 2-Hole Type CLND |
| UNSPSC | 39121448 |
| UPC 11 | 78366964810 |
| UPC 12 | 78366964810 |
| Voltage Rating | 600 VAC |
| Width | 1.76 in |
| Width [Metric] | 4.4806 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 350 to 650 kcmil |
| Conductor Type | Flex Copper |
| Die Code | 99 |
| Material | Copper |
| Stud Size | 1/2 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
