ILSCO®

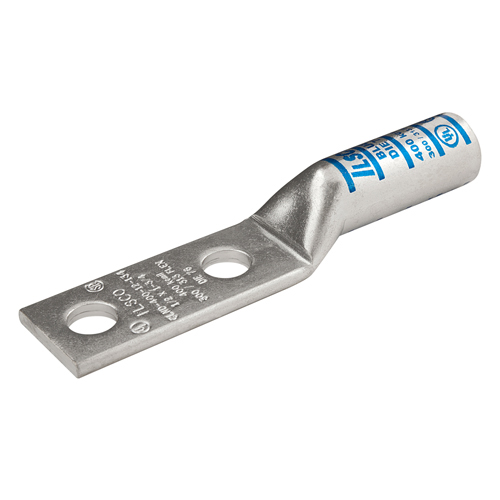

ILSCO® CLND-6-38-1 SureCrimp® CLND 2-Hole Compression Lug Without Sight Hole, 6 AWG, 3/8 in Stud, I-24, Copper
Custom_Product_Images_Illustration
ILSCO®
ILSCO® CLND-6-38-1 SureCrimp® CLND 2-Hole Compression Lug Without Sight Hole, 6 AWG, 3/8 in Stud, I-24, Copper
SKU820256
MFGR #CLND-6-38-1
Your Cost: $23.38/ea
ILSCO® SureCrimp® Compression Lug, 2-Hole, Series: CLND, 6 AWG Conductor, Die Code: I-24, 600 VAC, 3/8 in Stud, 1.937 in L x 0.598 in W Tongue, 3.257 in Overall Length, Long, 1-1/8 in L Barrel, 90 deg C, Copper, Blue, 0.225 in ID x 0.32 in OD
ILSCO® SureCrimp® Compression Lug, 2-Hole, Series: CLND, 6 AWG Conductor, Die Code: I-24, 600 VAC, 3/8 in Stud, 1.937 in L x 0.598 in W Tongue, 3.257 in Overall Length, Long, 1-1/8 in L Barrel, 90 deg C, Copper, Blue, 0.225 in ID x 0.32 in OD
ARRA Compliant C Barrel Size 0.225 in ID x 0.312 in OD x 1.125 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number CLND-6-38-1 Color Blue Country of Origin IN Currency USD Dimensions 0.411 in W EU RoHS Indicator C Gross Weight Per Pack 0.0380 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.30 in Height [Metric] 0.7493 cm Length 3.26 in Length [Metric] 8.2728 cm Mounting Hole Size 0.406 in Overall Length 3.257 in Series CLND Specifications 1 in Mounting Hole Spacing, 1.1870 in L Wire Strip Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEBS Level 3UL 486A/486B/467 File No. E6207CSA LR-29601PROP65: it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 1.937 in L x 0.598 in W x 0.092 in THK Type 2-Hole UNSPSC 39121448 UPC 11 78366962982 UPC 12 78366962982 Voltage Rating 600 VAC Width 0.41 in Width [Metric] 1.0437 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 6 AWG Conductor Type Copper Die Code I-24 Stud Size 3/8 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die Manufactured from high strength seamless copper tubing, electro-tin plated Color coded Offers maximum conductivity and excellent crimping characteristics Provides low contact resistance For easy conductor insertion Identifies the proper compression die Application versatility Reduces inventory requirements Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used 6 AWG flexible, 6 solid alternate conductor size Without sight hole 0.406 in Dia Stud Hole
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.225 in ID x 0.312 in OD x 1.125 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | CLND-6-38-1 |
| Color | Blue |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 0.411 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0380 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.30 in |
| Height [Metric] | 0.7493 cm |
| Length | 3.26 in |
| Length [Metric] | 8.2728 cm |
| Mounting Hole Size | 0.406 in |
| Overall Length | 3.257 in |
| Series | CLND |
| Specifications | 1 in Mounting Hole Spacing, 1.1870 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEBS Level 3UL 486A/486B/467 File No. E6207CSA LR-29601PROP65: it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 1.937 in L x 0.598 in W x 0.092 in THK |
| Type | 2-Hole |
| UNSPSC | 39121448 |
| UPC 11 | 78366962982 |
| UPC 12 | 78366962982 |
| Voltage Rating | 600 VAC |
| Width | 0.41 in |
| Width [Metric] | 1.0437 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 6 AWG |
| Conductor Type | Copper |
| Die Code | I-24 |
| Stud Size | 3/8 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Manufactured from high strength seamless copper tubing, electro-tin plated |
| Color coded |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used |
| 6 AWG flexible, 6 solid alternate conductor size |
| Without sight hole |
| 0.406 in Dia Stud Hole |
