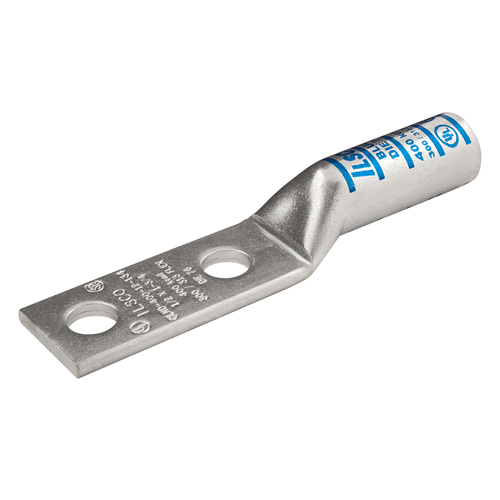

ILSCO® CLND-4/0-12-134 SureCrimp® CLND 2-Hole Compression Lug Without Sight Hole, 4/0 AWG, 1/2 in Stud, I-54, Copper
Custom_Product_Images_Illustration
ILSCO® CLND-4/0-12-134 SureCrimp® CLND 2-Hole Compression Lug Without Sight Hole, 4/0 AWG, 1/2 in Stud, I-54, Copper
SKU473066
MFGR #CLND-4/0-12-134
Your Cost: $29.94/ea
ILSCO® SureCrimp® Compression Lug, 2-Hole, Series: CLND, 4/0 AWG Conductor, Die Code: I-54, 600 VAC, 1/2 in Stud, 3 in L x 0.999 in W Tongue, 4.991 in Overall Length, Long, 1-1/2 in L Barrel, 90 deg C, Copper, Purple, 0.546 in ID x 0.687 in OD
ILSCO® SureCrimp® Compression Lug, 2-Hole, Series: CLND, 4/0 AWG Conductor, Die Code: I-54, 600 VAC, 1/2 in Stud, 3 in L x 0.999 in W Tongue, 4.991 in Overall Length, Long, 1-1/2 in L Barrel, 90 deg C, Copper, Purple, 0.546 in ID x 0.687 in OD
ARRA Compliant C Barrel Size 0.546 in ID x 0.687 in OD x 1.5 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number CLND-4/0-12-134 Color Purple Country of Origin MX Currency USD Dimensions 0.999 in W EU RoHS Indicator C Gross Weight Per Pack 0.2080 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.69 in Height [Metric] 1.7450 cm Length 4.99 in Length [Metric] 12.6771 cm Mounting Hole Size 0.562 in Overall Length 4.991 in Series CLND Specifications 1-3/4 in Mounting Hole Spacing, 1.562 in L Wire Strip Standards ARRA CompliantBuy American Act CompliantNEBS Level 3UL 453GUL 486A-486B File No. E6207UL 467CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 3 in L x 0.999 in W x 0.141 in THK Type 2-Hole UNSPSC 39121448 UPC 11 78366964054 UPC 12 78366964054 Voltage Rating 600 VAC to 35 kV VAC Width 1.00 in Width [Metric] 2.5367 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 1 to 4/0 AWG Conductor Type Flex Copper Die Code ILD-54 Material Tin Plated Copper Stud Size 1/2 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die Manufactured from high strength seamless copper tubing, electro-tin plated Color coded Offers maximum conductivity and excellent crimping characteristics Provides low contact resistance For easy conductor insertion Identifies the proper compression die Application versatility Reduces inventory requirements Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used 3/0 AWG flexible alternate conductor size 1 to 4/0 AWG expanded conductor size Without sight hole Electro-tin plated Long barrel length with chamfered entry
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.546 in ID x 0.687 in OD x 1.5 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | CLND-4/0-12-134 |
| Color | Purple |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 0.999 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2080 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.69 in |
| Height [Metric] | 1.7450 cm |
| Length | 4.99 in |
| Length [Metric] | 12.6771 cm |
| Mounting Hole Size | 0.562 in |
| Overall Length | 4.991 in |
| Series | CLND |
| Specifications | 1-3/4 in Mounting Hole Spacing, 1.562 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act CompliantNEBS Level 3UL 453GUL 486A-486B File No. E6207UL 467CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 3 in L x 0.999 in W x 0.141 in THK |
| Type | 2-Hole |
| UNSPSC | 39121448 |
| UPC 11 | 78366964054 |
| UPC 12 | 78366964054 |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Width | 1.00 in |
| Width [Metric] | 2.5367 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 1 to 4/0 AWG |
| Conductor Type | Flex Copper |
| Die Code | ILD-54 |
| Material | Tin Plated Copper |
| Stud Size | 1/2 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Manufactured from high strength seamless copper tubing, electro-tin plated |
| Color coded |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| 3/0 AWG flexible alternate conductor size |
| 1 to 4/0 AWG expanded conductor size |
| Without sight hole |
| Electro-tin plated |
| Long barrel length with chamfered entry |
