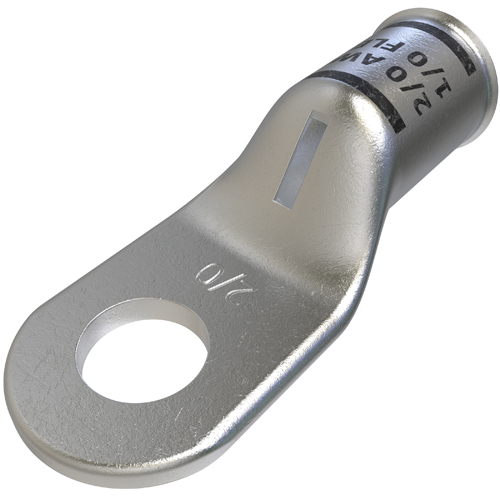

ILSCO® CCL-2/0-38 ClearChoice® CCL 1-Hole Light Duty Compression Lug, 2/0 AWG, 3/8 in Stud, Copper
Lug Compression Connectors
759837
MFG #: CCL-2/0-38
ILSCO®
14.70000
/ ea
ILSCO® ClearChoice® Compression Lug, 1-Hole Light Duty, Series: CCL, 2/0 AWG Conductor, 600 VAC, 3/8 in Stud, Solid Seamless Tongue, 0.929 in L x 0.815 in W x 0.11 in THK Tongue, 2.055 in Overall Length, 90 deg C, Copper, Black, 0.461 in ID x 0.571 in OD
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_CCL_1_0_12_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_JAC1GL7RQIES4U50.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_SBJ1E7N4926MZ3TX.pdf(Tech Drawing URL)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Features
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;Seamless barrel and tang for performance and strength;Flared end for added ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Electro-tin plated |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV |
| For copper conductor only |
| Provides low contact resistance |
| Visual inspection of proper cable insertion |
| For performance and strength |
| For high conductivity |
| Application versatility |
| Ease of wire insertion with flared end |
| 1/0 AWG flexible alternate conductor size |
| Manufactured from high strength seamless copper tubing |
| Color coded |
| Maximum conductivity and excellent crimping characteristics |
| Listed with ILSCO® MT-25 |
