ILSCO®

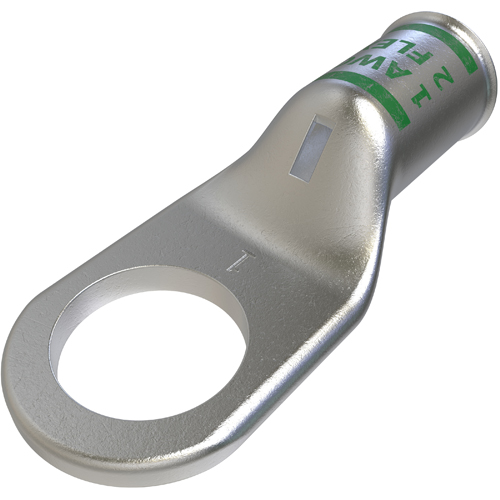

ILSCO® CCL-1-12 ClearChoice® CCL 1-Hole Light Duty Compression Lug, 1 AWG, 1/2 in Stud, Copper
Custom_Product_Images_Illustration
ILSCO®
ILSCO® CCL-1-12 ClearChoice® CCL 1-Hole Light Duty Compression Lug, 1 AWG, 1/2 in Stud, Copper
SKU926134
MFGR #CCL-1-12
Your Cost: $12.51/ea
ILSCO® ClearChoice® Compression Lug, 1-Hole Light Duty, Series: CCL, 1 AWG Conductor, 600 VAC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.102 in THK Tongue, 1.831 in Overall Length, 90 deg C, Copper, Green, 0.362 in ID x 0.461 in OD
ILSCO® ClearChoice® Compression Lug, 1-Hole Light Duty, Series: CCL, 1 AWG Conductor, 600 VAC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.102 in THK Tongue, 1.831 in Overall Length, 90 deg C, Copper, Green, 0.362 in ID x 0.461 in OD
ARRA Compliant C Barrel Size 0.362 in ID x 0.461 in OD Buy American Compliant C Catalog Number CCL-1-12 Color Green Country of Origin IN Currency USD Dimensions 0.752 in W EU RoHS Indicator C Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Overall Length 1.831 in Series CCL Standards ARRA CompliantBuy American Act CompliantUL 486A-486B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 0.858 in L x 0.752 in W x 0.102 in THK Tongue Type Solid Seamless Type 1-Hole Light Duty UNSPSC 39121448 UPC 11 78366903144 UPC 12 78366903144 Voltage Rating 600 VAC to 35 kV VAC Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 1 AWG Conductor Type Flex Copper Material Tin plated copper Stud Size 1/2 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;Seamless barrel and tang for performance and strength;Flared end for added ease of conductor insertion;Color coded ink marking signifies key details including correct die Electro-tin plated Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV For copper conductor only Provides low contact resistance Visual inspection of proper cable insertion For performance and strength For high conductivity Application versatility Ease of wire insertion with flared end 2 AWG flexible alternate conductor size Manufactured from high strength seamless copper tubing Color coded Maximum conductivity and excellent crimping characteristics Listed with ILSCO® MT-25
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.362 in ID x 0.461 in OD |
| Buy American Compliant | C |
| Catalog Number | CCL-1-12 |
| Color | Green |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 0.752 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Overall Length | 1.831 in |
| Series | CCL |
| Standards | ARRA CompliantBuy American Act CompliantUL 486A-486B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 0.858 in L x 0.752 in W x 0.102 in THK |
| Tongue Type | Solid Seamless |
| Type | 1-Hole Light Duty |
| UNSPSC | 39121448 |
| UPC 11 | 78366903144 |
| UPC 12 | 78366903144 |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 1 AWG |
| Conductor Type | Flex Copper |
| Material | Tin plated copper |
| Stud Size | 1/2 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;Seamless barrel and tang for performance and strength;Flared end for added ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Electro-tin plated |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV |
| For copper conductor only |
| Provides low contact resistance |
| Visual inspection of proper cable insertion |
| For performance and strength |
| For high conductivity |
| Application versatility |
| Ease of wire insertion with flared end |
| 2 AWG flexible alternate conductor size |
| Manufactured from high strength seamless copper tubing |
| Color coded |
| Maximum conductivity and excellent crimping characteristics |
| Listed with ILSCO® MT-25 |
