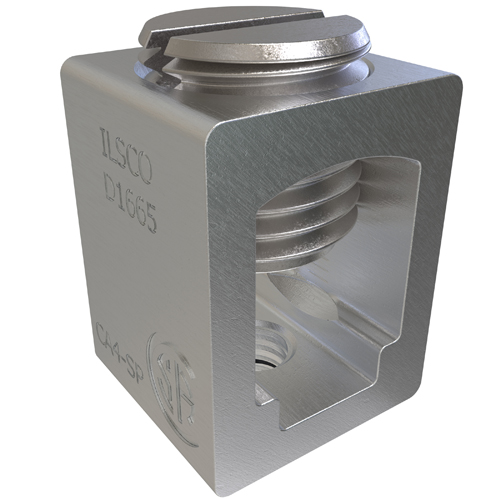

ILSCO® CA4SP CA Series Dual Rated Mechanical Terminal Lug, 14 to 2 AWG Aluminum/Copper Conductor, 1 Bolt Holes, Aluminum
Mechanical Terminal Lugs
665469
MFG #: CA4SP
ILSCO®
5.55000
/ ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: CA Series, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 1 Bolt Hole, 2000 VAC, Slotted Hex, #10-32 Boss Mounting Hole Tapped, 75 deg C, Aluminum, Electro-Plated Tin, 0.4688 in L x 0.5 in W x 0.7188 in H
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_5AP8H2DLM06RIUX7.pdf(Spec Sheet URL)
- Spec Sheet URL - CA.pdf(Spec Sheet URL)
- Tech Drawing 1 URL - ID-DRW-v1-D1666-22.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10975_OR3PKA1JHXV9BL4W.pdf(Tech Drawing URL)
- Tech Drawing URL - D1665-22.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Applications
- Features
| Box-Type Mechanical Lug |
| Suitable for use with either copper or aluminum conductors;Bossed mounting holes act as an anti-rotation device and prevent connector from turning;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used |
| Design includes bossed mounting holes act as an anti-rotation device and prevents connector from turning |
| Suitable for use with either copper or aluminum conductors |
| Parts with bossed hole allows anti-turn or mounting |
| Made of high strength 6061-T6 aluminum alloy |
| Electro-tin plated provides low contact resistance |
| Ensures reliability |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Application versatility |
| 0.229 in square style of boss |
| 14 to 2 AWG copper, 12 to 2 AWG aluminum conductor size |
| 2 - 14 AWG CU, 2 - 12 AWG AL |
| 100/Pack, Standard Package |
