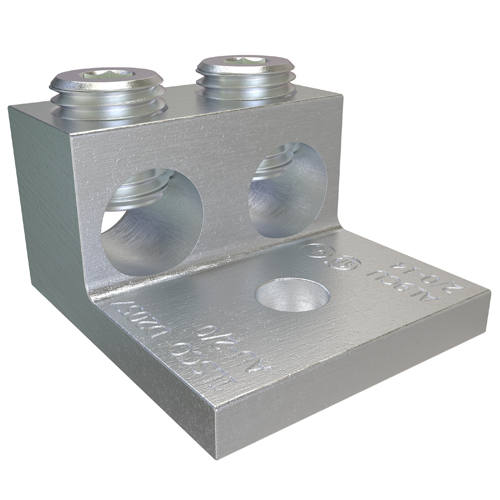

ILSCO® AU-2/0 AU Series Dual Rated Mechanical Terminal Lug, 14 to 2/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, 2 Bolt Holes
Lugs
93361
MFG #: AU-2/0
ILSCO®
11.62000
/ ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 2 Bolt Holes, 0.844 in L x 1.25 in W x 0.187 in THK Tongue, Straight Tongue, 2000 VAC, 3/16 in Hex, 90 deg C, Aluminum, Electro-Plated Tin, 1.4688 in L x 1.25 in W x 0.794 in H
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10975_AGHR5X3OBEUQD78M.pdf(Spec Sheet URL)
- Spec Sheet URL - AU.pdf(Spec Sheet URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Tech Drawing URL - D2057.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Tech Drawing URL - 10975_59321UWSHZ08JERC.pdf(Tech Drawing URL)
- Features
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Mounting hole spacing from side to side, hole to hole is 7/8 in |
| Electro-tin plated provides low contact resistance |
| Ensures reliability for copper or aluminum conductors |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Application versatility |
| 1-stud |
| 17/64 in mounting hole |
