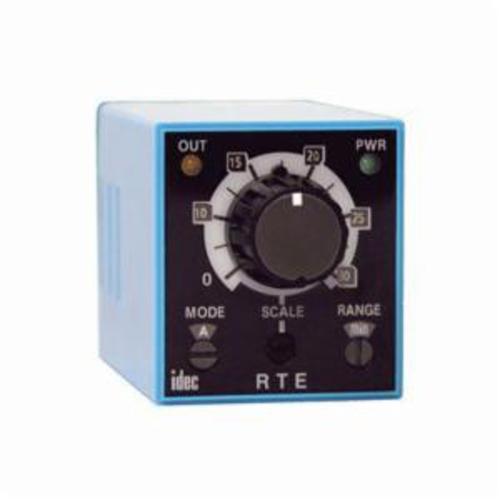

IDEC RTE-P1AF20 4-Modes Multi-Function Plug-In Timer, 100 to 120 VAC, DPDT Contact Form
Plug-In Timers
62272
MFG #: RTE-P1AF20
IDEC
64.93000
/ ea
IDEC Plug-In Timer, 4-Modes Multi-Function, Series: RTE, Operation Mode: On-Delay/interval/Cycle Off/Cycle On, 100 to 120 VAC, 10 A, DPDT, 100/240 VAC Coil, IP40, -20 to 65 deg C, Plug-In Mount, 77.9 mm L x 40 mm W x 36 mm D
- Features
| 20 time ranges and 10 timing functions |
| Time delays up to 600 hours |
| Space-saving package |
| High repeat accuracy of +/- 0.2% |
| ON and timing out LED indicators |
| Standard 8 or 11 pin and 11 blade termination |
| 2 form C delayed output contacts |
| 1 min, 10 min, 1 hrs, 10 hrs, 10 sec, 1 sec, 60 min, 30 min, 60 sec, 3 sec, 60 hrs, 30 hrs, 300 hrs, 3 hrs, 3 min, 30sec, 600 hrs, 100 hrs time range |
| 50/60 Hz frequency rating |
