Hubbell Wiring Device-Kellems

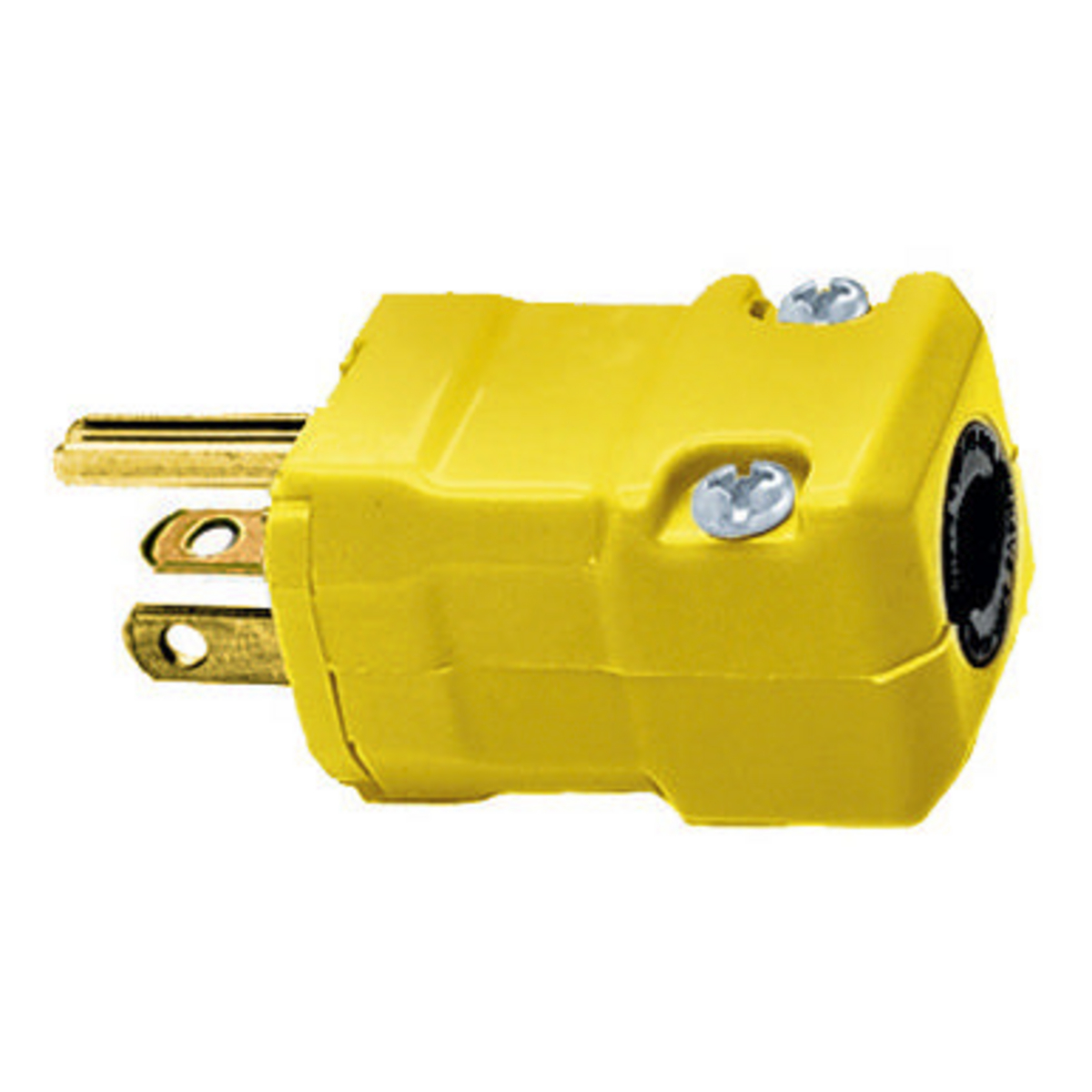

Hubbell Wiring Device-Kellems Valise® HBL5364VY Grounding Male Standard Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Valise® HBL5364VY Grounding Male Standard Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU26145
MFGR #HBL5364VY
Your Cost: $23.45/ea
Hubbell® straight blade Valise® plugs and connector bodies are ideal for OEMs because their superior performance will help your own products perform better. Valise® devices are designed to be easy to wire and quick to assemble. Yet, they provide superior cord gripping, impact- and crush resistance and a totally insulated body for added safety.
Hubbell® straight blade Valise® plugs and connector bodies are ideal for OEMs because their superior performance will help your own products perform better. Valise® devices are designed to be easy to wire and quick to assemble. Yet, they provide superior cord gripping, impact- and crush resistance and a totally insulated body for added safety.
Application Industrial/Commercial Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL5364VY Connection Terminal Screws Cord Diameter 0.22 to 0.66 in Cord Type All Portable Country of Origin US Currency USD Dimensions 1-7/8 in L x 1-1/2 in W Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.1000 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.60 in Height [Metric] 4.0640 cm Horsepower 1 hp Length 2.90 in Length [Metric] 7.3660 cm Material Polycarbonate Mounting Cord Mounted NEMA Rating 5-20P Number Of Poles 2 Phase 1 Returnable Y Size 1.87 in x 1.25 in x 1.87 in Standard CSA Certified to C22.2 No 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 Standards UL 498, File No. E1706 ListedCSA C22.2 No. 42, 280 Certified NEMA WD1/WD5/ WD6 Compliant Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Threaded Type Plugs UNSPSC 39121402 UPC 11 78358501316 UPC 12 783585013169 Wattage 2,000 W Width 1.70 in Width [Metric] 4.3180 cm Wire Size #18 AWG to #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Yellow Number of Wires 3 Voltage Rating 125 VAC Industrial/Commercial Grade Standard Product Hinged one-piece body design for easy assembly Powerful, off setting cord grips clamp on individual conductors Assembly screws are captive and will not fall out while wiring Noryl (polyphenylene oxide) cord clamp material 0.06 in brass contact blades 0.04 in copper alloy ground contact blade Steel (copper or nickel finish) terminal screw Steel (green finish) ground screw Withstands 2000 VAC dielectric voltage Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise Terminals identified in accordance with UL 498 (brass, white, green) 18 to 10 AWG stranded copper conductor terminal accommodation Permanent part of device product identification
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5364VY |
| Connection | Terminal Screws |
| Cord Diameter | 0.22 to 0.66 in |
| Cord Type | All Portable |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1-7/8 in L x 1-1/2 in W |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.1000 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.60 in |
| Height [Metric] | 4.0640 cm |
| Horsepower | 1 hp |
| Length | 2.90 in |
| Length [Metric] | 7.3660 cm |
| Material | Polycarbonate |
| Mounting | Cord Mounted |
| NEMA Rating | 5-20P |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.87 in x 1.25 in x 1.87 in |
| Standard | CSA Certified to C22.2 No 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Standards | UL 498, File No. E1706 ListedCSA C22.2 No. 42, 280 Certified NEMA WD1/WD5/ WD6 Compliant |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Threaded |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC 11 | 78358501316 |
| UPC 12 | 783585013169 |
| Wattage | 2,000 W |
| Width | 1.70 in |
| Width [Metric] | 4.3180 cm |
| Wire Size | #18 AWG to #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Industrial/Commercial Grade |
| Standard Product |
| Hinged one-piece body design for easy assembly |
| Powerful, off setting cord grips clamp on individual conductors |
| Assembly screws are captive and will not fall out while wiring |
| Noryl (polyphenylene oxide) cord clamp material |
| 0.06 in brass contact blades |
| 0.04 in copper alloy ground contact blade |
| Steel (copper or nickel finish) terminal screw |
| Steel (green finish) ground screw |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Terminals identified in accordance with UL 498 (brass, white, green) |
| 18 to 10 AWG stranded copper conductor terminal accommodation |
| Permanent part of device product identification |
