Hubbell Wiring Device-Kellems

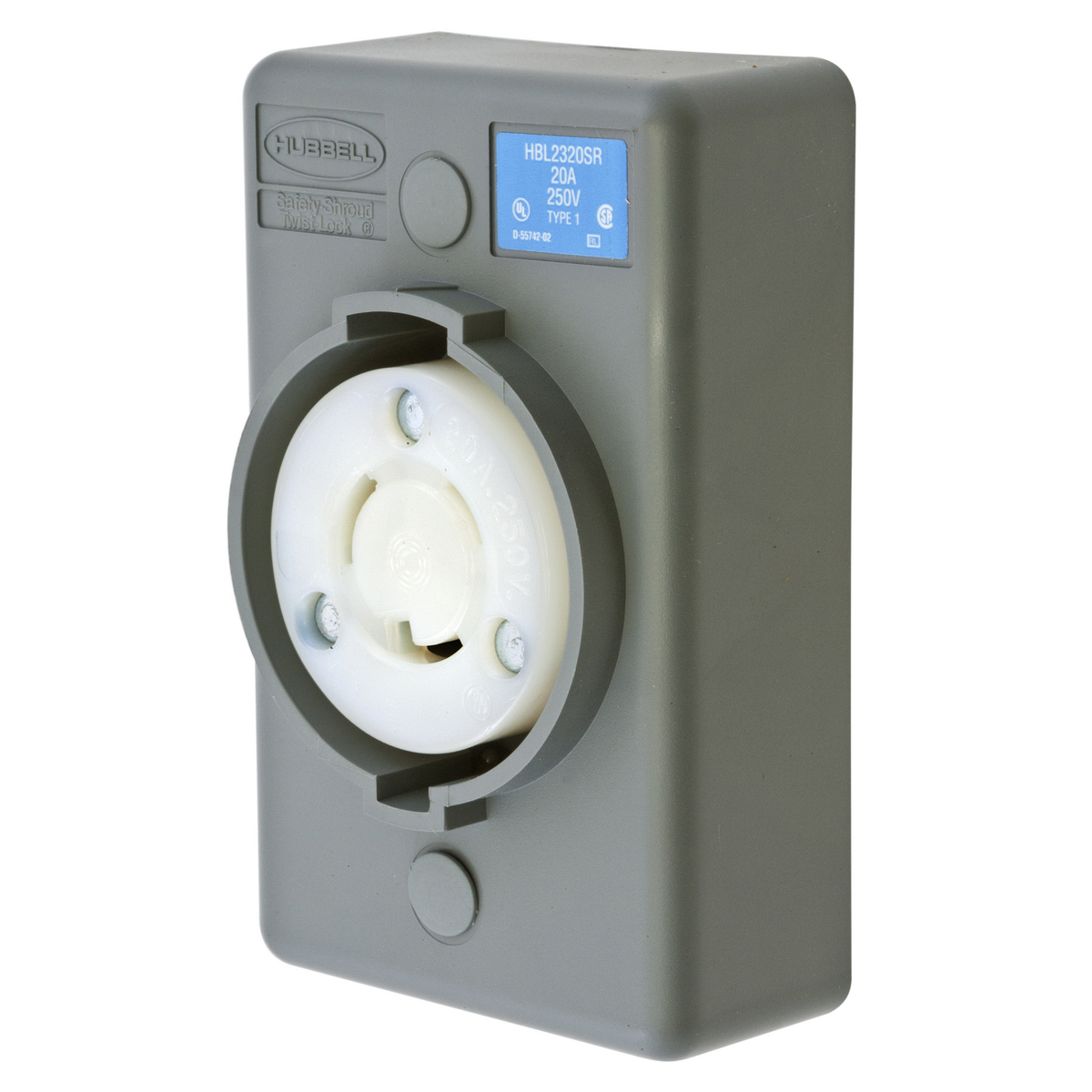

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2320SR Grounding Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2320SR Grounding Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU26575
MFGR #HBL2320SR
Your Cost: $41.15/ea
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-20R, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, PBT, Gray, 4.56 in L x 2.84 in W x 1.58 in D
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-20R, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, PBT, Gray, 4.56 in L x 2.84 in W x 1.58 in D
Amperage Rating 20 A Application Heavy Duty Industrial Shrouded ARRA Compliant C Brand Hubbell Wiring Device-Kellems Buy American Compliant C Catalog Number HBL2320SR Color Gray/White Connection Screw Terminal Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 4.56 in H x 2.84 in W x 1.58 in D Enclosure NEMA 4/4X/12/IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.80 in Height [Metric] 7.1120 cm Horsepower 2 hp Length 4.80 in Length [Metric] 12.1920 cm Manufacturer Hubbell Material Thermoplastic Mounting Screw Mount NEMA Rating L6-20R Number Of Poles 2 Number of Wires 3 Phase 1 Returnable Y Size 4.56 in x 2.84 in x 1.58 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 Stock Status NORMALLY STOCKED Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358523410 UPC 12 783585234106 Voltage Rating 250 VAC Wattage 5,000 W Width 3.10 in Width [Metric] 7.8740 cm Wire Size #16 AWG to #8 AWG Heavy Duty Industrial Shrouded Surface Mount Withstands 2000 VAC dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw #10-32 brass ground screw Certified for current interrupting at full rated current interrupting 14 to 8 AWG copper terminal accommodation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial Shrouded |
| ARRA Compliant | C |
| Brand | Hubbell Wiring Device-Kellems |
| Buy American Compliant | C |
| Catalog Number | HBL2320SR |
| Color | Gray/White |
| Connection | Screw Terminal |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 4.56 in H x 2.84 in W x 1.58 in D |
| Enclosure | NEMA 4/4X/12/IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.80 in |
| Height [Metric] | 7.1120 cm |
| Horsepower | 2 hp |
| Length | 4.80 in |
| Length [Metric] | 12.1920 cm |
| Manufacturer | Hubbell |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | L6-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Returnable | Y |
| Size | 4.56 in x 2.84 in x 1.58 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523410 |
| UPC 12 | 783585234106 |
| Voltage Rating | 250 VAC |
| Wattage | 5,000 W |
| Width | 3.10 in |
| Width [Metric] | 7.8740 cm |
| Wire Size | #16 AWG to #8 AWG |
| Heavy Duty Industrial Shrouded |
| Surface Mount |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| #10-32 brass ground screw |
| Certified for current interrupting at full rated current interrupting |
| 14 to 8 AWG copper terminal accommodation |
