Hubbell Wiring Device-Kellems

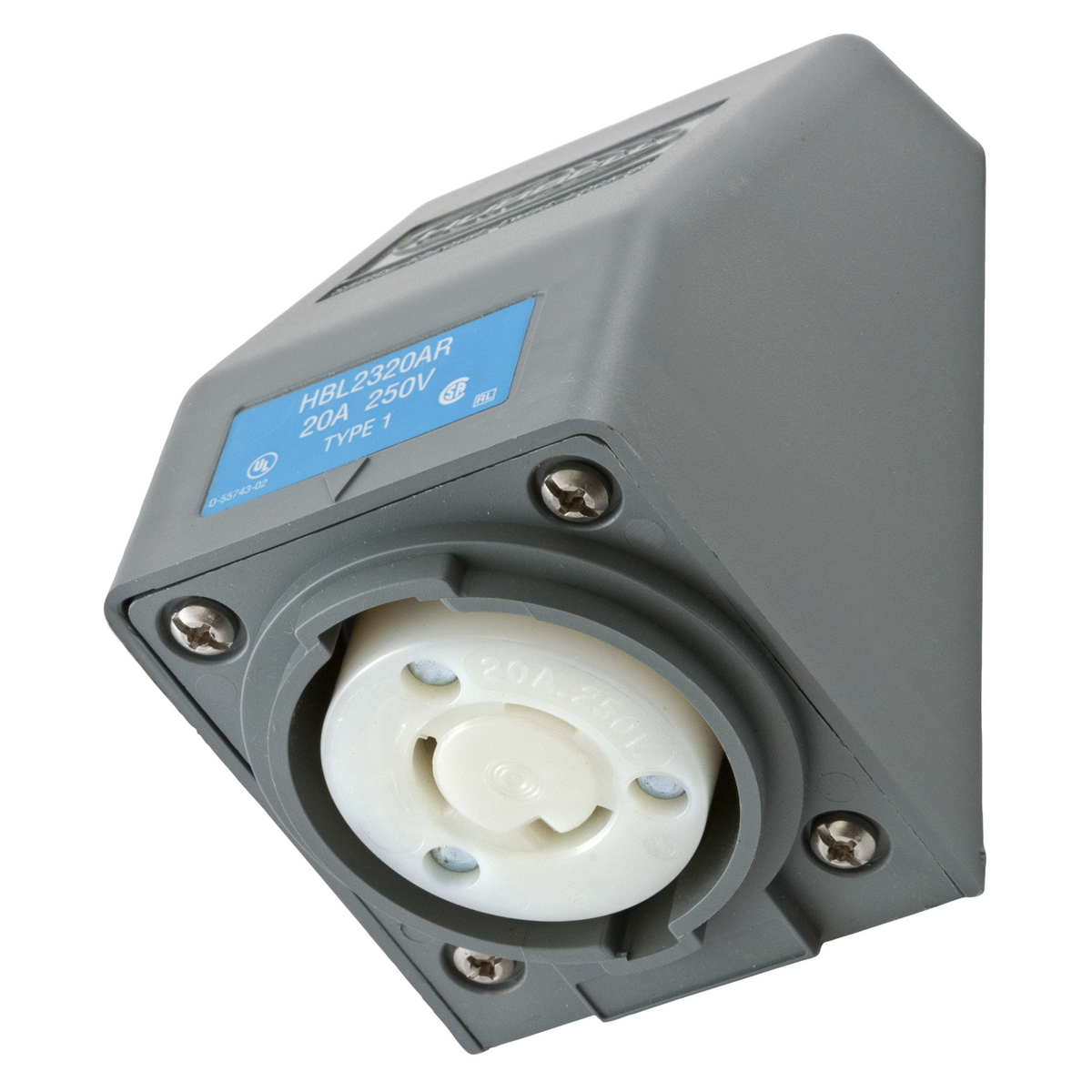

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2320AR Angled Single Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2320AR Angled Single Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU428990
MFGR #HBL2320AR
Your Cost: $41.15/ea
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, Angled Single, 250 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 6-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Gray, 4.57 in H x 2.85 in W
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, Angled Single, 250 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 6-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Gray, 4.57 in H x 2.85 in W
Application Heavy Duty Industrial Shrouded ARRA Compliant C Buy American Compliant C Catalog Number HBL2320AR Connection Screw Terminal Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 2.88 in L x 3.14 in W x 4.57 in H Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.7000 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.60 in Height [Metric] 9.1440 cm Horsepower 2 hp Length 5.20 in Length [Metric] 13.2080 cm Material Thermoplastic Mounting Screw Mount NEMA Rating L6-20R Number Of Poles 2 Phase 1 Returnable Y Size 4.77 in x 2.85 in x 3.14 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42/0.17UL94 V-2 Flammability RatingFederal Specification W-C-596NEMA WD1/WD5 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Back Wired/Screw Type Angled Receptacle UNSPSC 39121406 UPC 11 78358523408 UPC 12 783585234083 Wattage 5,000 W Width 3.30 in Width [Metric] 8.3820 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray/White Number of Wires 3 Voltage Rating 250 V Heavy Duty Industrial Shrouded Angled Housing Accepts Hubbell shrouded and standard NEMA locking plugs Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected Catalog number and color coded voltage rating are visible even when in use Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments 0.08 in steel, curved, scalloped, nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, Steel, zinc plated multi-drive cord clamp screw arterial and body holding screw Natural white nylon body 0.031 in brass contact spring and spring binding plate and ground contact Steel, zinc plated mounting screw Steel rivet Withstands 2000 VAC minimum dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise Angled housing Screw mounting 14 to 8 AWG wire size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial Shrouded |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2320AR |
| Connection | Screw Terminal |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 2.88 in L x 3.14 in W x 4.57 in H |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.7000 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.60 in |
| Height [Metric] | 9.1440 cm |
| Horsepower | 2 hp |
| Length | 5.20 in |
| Length [Metric] | 13.2080 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | L6-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 4.77 in x 2.85 in x 3.14 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42/0.17UL94 V-2 Flammability RatingFederal Specification W-C-596NEMA WD1/WD5 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back Wired/Screw |
| Type | Angled Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523408 |
| UPC 12 | 783585234083 |
| Wattage | 5,000 W |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray/White |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Heavy Duty Industrial Shrouded |
| Angled Housing |
| Accepts Hubbell shrouded and standard NEMA locking plugs |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
| 0.08 in steel, curved, scalloped, nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, Steel, zinc plated multi-drive cord clamp screw arterial and body holding screw |
| Natural white nylon body |
| 0.031 in brass contact spring and spring binding plate and ground contact |
| Steel, zinc plated mounting screw |
| Steel rivet |
| Withstands 2000 VAC minimum dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise |
| Angled housing |
| Screw mounting |
| 14 to 8 AWG wire size |
