Hubbell Wiring Device-Kellems

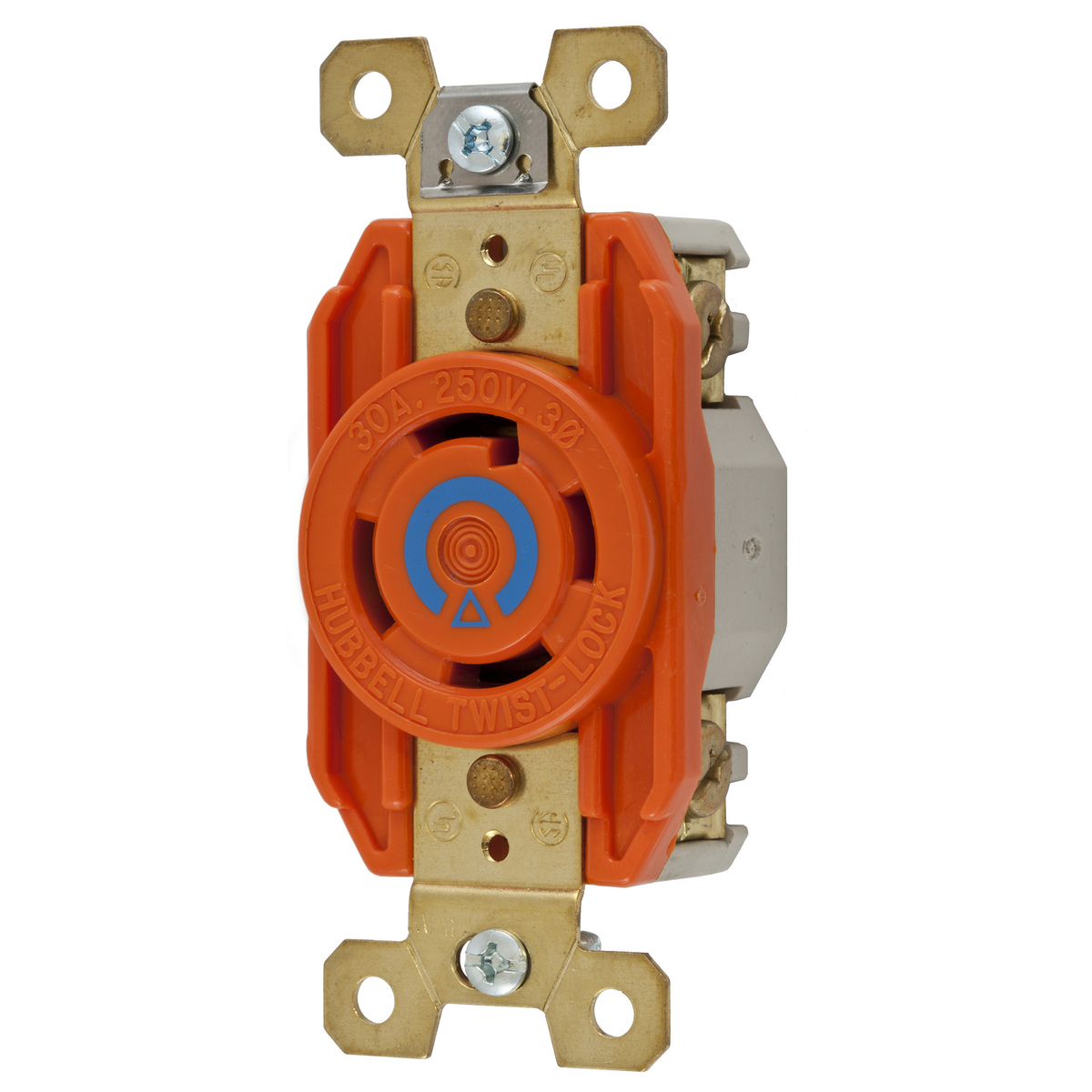

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® IG2720 Heavy Duty Isolated Grounding Single Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Orange
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® IG2720 Heavy Duty Isolated Grounding Single Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Orange
SKU27318
MFGR #IG2720
Your Cost: $112.17/ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, Heavy Duty Isolated Grounding Single, 250 VAC, 30 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-30R, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Orange, 3.28 in H x 1.7 in W x 1.23 in D
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, Heavy Duty Isolated Grounding Single, 250 VAC, 30 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-30R, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Orange, 3.28 in H x 1.7 in W x 1.23 in D
Application Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number IG2720 Connection Screw Terminals Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.7 in W x 1.23 in D Enclosure NEMA 4X/12/IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.50 in Height [Metric] 3.8100 cm Horsepower 3 hp Length 4.30 in Length [Metric] 10.9220 cm Material Nylon Mounting Screw Mount NEMA Rating L15-30R Number Of Poles 3 Phase 3 Returnable Y Size 3.28 in x 1.7 in x 1.23 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42Federal Specification W-C-596NEMA WD1/WD5 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Single Receptacle UNSPSC 39121406 UPC 11 78358587244 UPC 12 783585872445 Wattage 7,500 W Width 1.80 in Width [Metric] 4.5720 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Orange Number of Wires 4 Voltage Rating 250 VAC Heavy Duty Industrial Isolated Ground Withstands 2000 VAC dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% #10-32 bronze (white finish on neutral screw when used) terminal screw 12 AWG terminal accommodation Certified for current interrupting at full rated current Nickel plated brass round head screws mounting screw Steel, zinc plated mounting screw, black nylon cover (top) material Nylon polyester base 0.04 in brass ground contact material, 0.05 in brass bridge (mounting strap) material 0.04 in brass back plate material Brass rivet Stainless steel auto ground clip Molded in or stamped on ratings Permanently ink marked on product catalog number 2000 VAC minimum dielectric voltage withstand Certified for current interrupting at full rated current interrupting Max 30 C temperature rise at full rated current after 50 cycles of overload at 150 percentage of rated current at a power factor of 0.75 temperature rise 20 to 12 AWG copper only terminal accommodation Terminals identified in accordance with UL498 (x, y, z, white, green) terminal identification HB or better per UL94 or CSA 22.2 no. 0.6 flammability, flush mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IG2720 |
| Connection | Screw Terminals |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.7 in W x 1.23 in D |
| Enclosure | NEMA 4X/12/IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Horsepower | 3 hp |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | L15-30R |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Size | 3.28 in x 1.7 in x 1.23 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42Federal Specification W-C-596NEMA WD1/WD5 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358587244 |
| UPC 12 | 783585872445 |
| Wattage | 7,500 W |
| Width | 1.80 in |
| Width [Metric] | 4.5720 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Orange |
| Number of Wires | 4 |
| Voltage Rating | 250 VAC |
| Heavy Duty Industrial |
| Isolated Ground |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| #10-32 bronze (white finish on neutral screw when used) terminal screw |
| 12 AWG terminal accommodation |
| Certified for current interrupting at full rated current |
| Nickel plated brass round head screws mounting screw |
| Steel, zinc plated mounting screw, black nylon cover (top) material |
| Nylon polyester base |
| 0.04 in brass ground contact material, 0.05 in brass bridge (mounting strap) material |
| 0.04 in brass back plate material |
| Brass rivet |
| Stainless steel auto ground clip |
| Molded in or stamped on ratings |
| Permanently ink marked on product catalog number |
| 2000 VAC minimum dielectric voltage withstand |
| Certified for current interrupting at full rated current interrupting |
| Max 30 C temperature rise at full rated current after 50 cycles of overload at 150 percentage of rated current at a power factor of 0.75 temperature rise |
| 20 to 12 AWG copper only terminal accommodation |
| Terminals identified in accordance with UL498 (x, y, z, white, green) terminal identification |
| HB or better per UL94 or CSA 22.2 no. 0.6 flammability, flush mounting |
