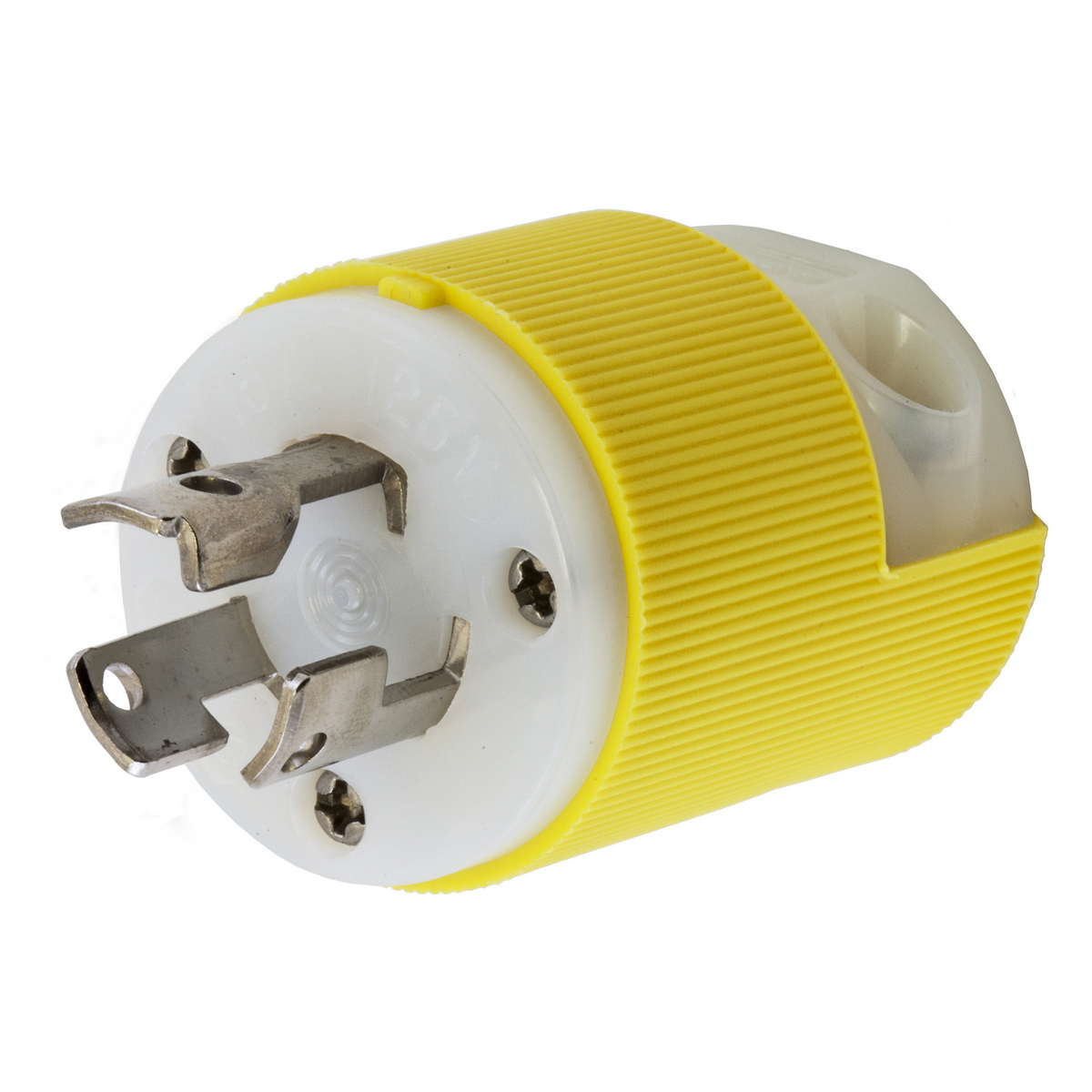

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL47CM20C 1-Phase Corrosion Resistant Grounding Male Standard Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow/White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL47CM20C 1-Phase Corrosion Resistant Grounding Male Standard Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow/White
SKU91824
MFGR #HBL47CM20C
Your Cost: $24.36/ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Corrosion Resistant Grounding Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15P, Marine Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Nylon, Yellow/White, 1.52 in Dia x 1.96 in L
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Corrosion Resistant Grounding Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15P, Marine Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Nylon, Yellow/White, 1.52 in Dia x 1.96 in L
Application Extra Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number HBL47CM20C Connection Terminal Screws Cord Diameter 0.23 to 0.72 in Cord Type All Listed Portables Country of Origin PR Currency USD Dimensions 1.52 in Dia x 1.96 in L Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Marine Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1/2 hp Length 4.20 in Length [Metric] 10.6680 cm Material Nylon Mounting Cord Mounted NEMA Rating L5-15P Number Of Poles 2 Phase 1 Returnable Y Size 1.53 in x 1.53 in x 1.97 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42/0.6UL94HB Flammability RatingFederal Specification W-C-596 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Plugs UNSPSC 39121402 UPC 11 78358516050 UPC 12 783585160504 Wattage 1,875 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #18 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color White/Yellow Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Industrial Corrosion Resistant Individually molded face for each blade configuration Roomy wiring chamber provides ample space for wiring Ribbed nylon housing provides a secure grip that's impact and chemical-resistant 0.08 in brass-nickel plated terminal clamp #10 to 32 bronze (white finish on neutral screw when used) multi-drive terminal screw #10 to 32 bronze (green finish) multi-drive ground screw Stainless steel, multi-drive cord clamp/ body holding screw Molded in or stamped on ratings 2000 VAC minimum dielectric withstand voltage Certified for current interrupting at full rated current 20 A, 12 AWG terminal accommodation HB or better flammability Individually molded face for each blade configuration Roomy wiring chamber provides ample space for wiring Ribbed nylon housing provides a secure grip that's impact and chemical resistant Wire grounding plug Chem/marine valise style
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL47CM20C |
| Connection | Terminal Screws |
| Cord Diameter | 0.23 to 0.72 in |
| Cord Type | All Listed Portables |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 1.52 in Dia x 1.96 in L |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Marine |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1/2 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Nylon |
| Mounting | Cord Mounted |
| NEMA Rating | L5-15P |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.53 in x 1.53 in x 1.97 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42/0.6UL94HB Flammability RatingFederal Specification W-C-596 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC 11 | 78358516050 |
| UPC 12 | 783585160504 |
| Wattage | 1,875 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #18 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | White/Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Industrial |
| Corrosion Resistant |
| Individually molded face for each blade configuration |
| Roomy wiring chamber provides ample space for wiring |
| Ribbed nylon housing provides a secure grip that's impact and chemical-resistant |
| 0.08 in brass-nickel plated terminal clamp |
| #10 to 32 bronze (white finish on neutral screw when used) multi-drive terminal screw |
| #10 to 32 bronze (green finish) multi-drive ground screw |
| Stainless steel, multi-drive cord clamp/ body holding screw |
| Molded in or stamped on ratings |
| 2000 VAC minimum dielectric withstand voltage |
| Certified for current interrupting at full rated current |
| 20 A, 12 AWG terminal accommodation |
| HB or better flammability |
| Individually molded face for each blade configuration |
| Roomy wiring chamber provides ample space for wiring |
| Ribbed nylon housing provides a secure grip that's impact and chemical resistant |
| Wire grounding plug |
| Chem/marine valise style |
