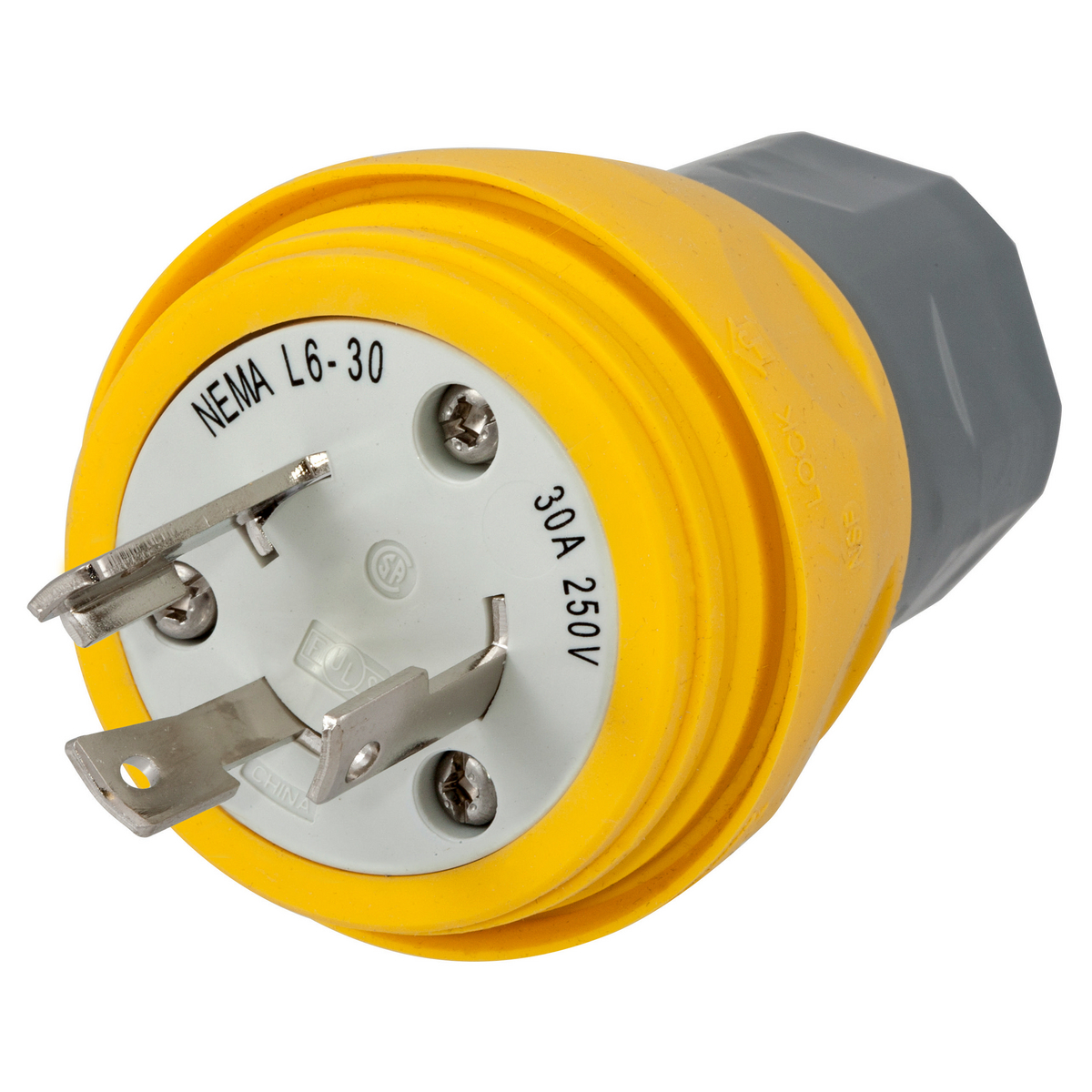

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL28W48 Locking Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL28W48 Locking Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
SKU867290
MFGR #HBL28W48
$/ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 250 VAC, 30 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-30P, Industrial Grade, IP65/IP66/IP67 Enclosure, 3/8 to 1-1/8 in Cord Dia, -40 to 75 deg C, Screw Terminal, Thermoplastic Elastomer/Valox, Yellow, 2.77 in Dia x 3.94 in L
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 250 VAC, 30 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-30P, Industrial Grade, IP65/IP66/IP67 Enclosure, 3/8 to 1-1/8 in Cord Dia, -40 to 75 deg C, Screw Terminal, Thermoplastic Elastomer/Valox, Yellow, 2.77 in Dia x 3.94 in L
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL28W48 Connection Screw Terminals Cord Diameter 3/8 to 1 in Cord Type All Portable Country of Origin CN Currency USD Dimensions 2.77 in Dia x 3.94 in L Enclosure NEMA 4/4X/12/6/6P Environmental Conditions Watertight EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.77 in Height [Metric] 7.0358 cm Length 14.00 in Length [Metric] 35.5600 cm Material Elastomeric/Composite Mounting Cord Mounted NEMA Rating L6-30P Number Of Poles 2 Phase 1 Returnable Y Size 2.77 in x 2.77 in x 3.94 in Standard Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42ANSI Approved Sub Brand Twist-Lock Temperature Rating -40 to 60 °C Terminal Type Screw Type Plugs UNSPSC 39121402 UPC 11 78358513144 UPC 12 783585131443 Width 9.00 in Width [Metric] 22.8600 cm Wire Size Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 3 Voltage Rating 250 V Industrial/Commercial Watertight Smooth body design minimizes collection points simplifying the wash down process Strain relief nut always seals on the body, minimizing debris collection Stainless steel hardware and corrosion resistant connection points 12 to 10 AWG wire White nylon core Black elastomer bushing and cone seal Nylon GOTCHA® ring PBT strain relief nut Nickel plated brass terminal screw 30 deg C max temperature rise All exposed materials are uv stabilized Watertight, moisture resistance Wire grounding plug
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL28W48 |
| Connection | Screw Terminals |
| Cord Diameter | 3/8 to 1 in |
| Cord Type | All Portable |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 2.77 in Dia x 3.94 in L |
| Enclosure | NEMA 4/4X/12/6/6P |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.77 in |
| Height [Metric] | 7.0358 cm |
| Length | 14.00 in |
| Length [Metric] | 35.5600 cm |
| Material | Elastomeric/Composite |
| Mounting | Cord Mounted |
| NEMA Rating | L6-30P |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 2.77 in x 2.77 in x 3.94 in |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42ANSI Approved |
| Sub Brand | Twist-Lock |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC 11 | 78358513144 |
| UPC 12 | 783585131443 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Industrial/Commercial |
| Watertight |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion resistant connection points |
| 12 to 10 AWG wire |
| White nylon core |
| Black elastomer bushing and cone seal |
| Nylon GOTCHA® ring |
| PBT strain relief nut |
| Nickel plated brass terminal screw |
| 30 deg C max temperature rise |
| All exposed materials are uv stabilized |
| Watertight, moisture resistance |
| Wire grounding plug |
