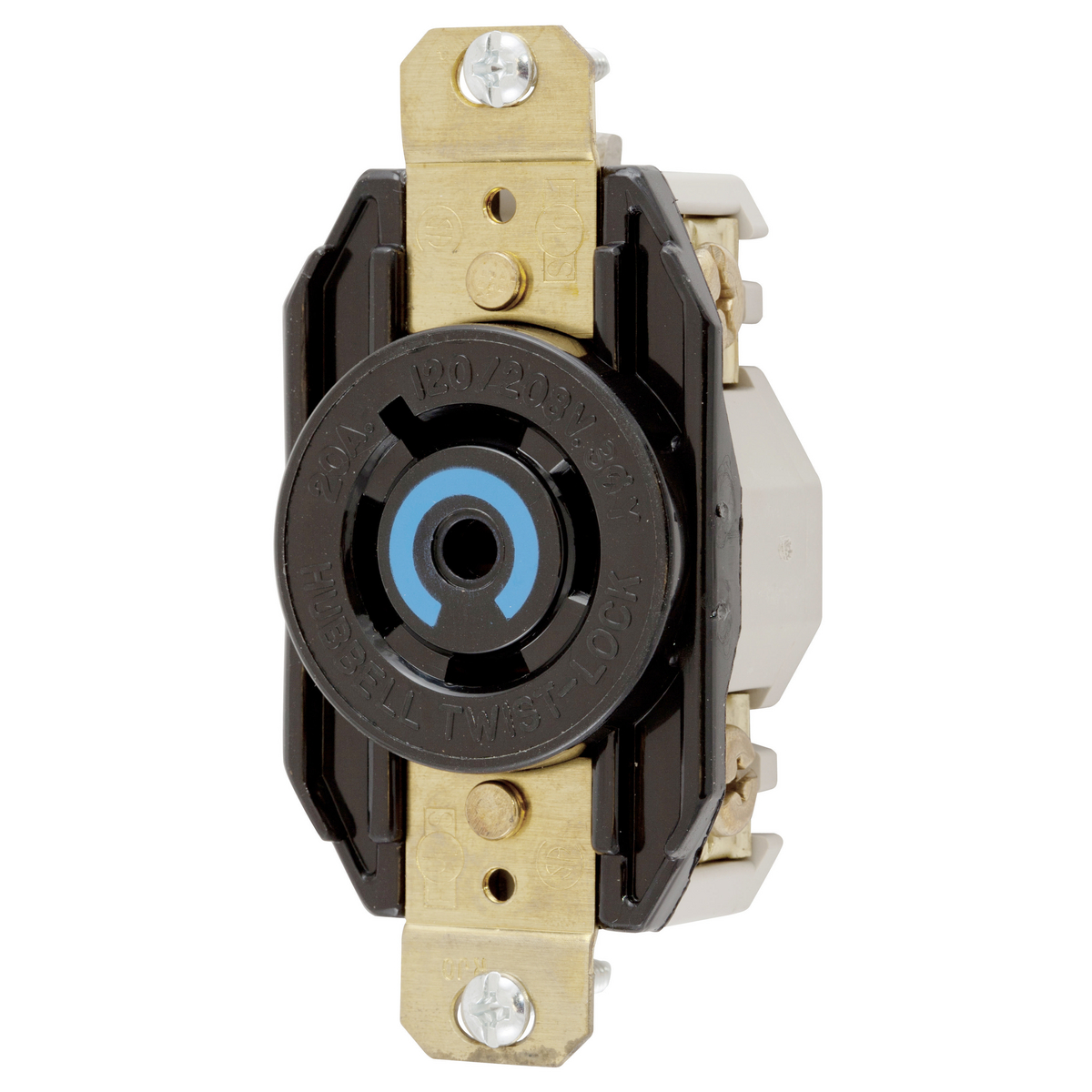

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2510 Flush Mount Grounding Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2510 Flush Mount Grounding Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
SKU26595
MFGR #HBL2510
Your Cost: $62.67/ea
Hubbell® Twist-Lock® Insulgrip® Locking Receptacle, Flush Mount Grounding Single, 120/208 VAC, 20 A, 2 hp, 4 Poles, 5 Wires, NEMA L21-20R, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Polyester, Black, 3.281 in H x 1.703 in W x 1.234 in D
Hubbell® Twist-Lock® Insulgrip® Locking Receptacle, Flush Mount Grounding Single, 120/208 VAC, 20 A, 2 hp, 4 Poles, 5 Wires, NEMA L21-20R, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Polyester, Black, 3.281 in H x 1.703 in W x 1.234 in D
Amperage Rating 20 A Application Heavy Duty Industrial ARRA Compliant C Brand Hubbell Wiring Device-Kellems Buy American Compliant C Catalog Number HBL2510 Color Black Connection Screw Terminal Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.7 in W x 1.23 in D Enclosure NEMA 4X/12/IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.3850 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 2 hp Length 4.20 in Length [Metric] 10.6680 cm Manufacturer Hubbell Material Nylon Mounting Screw Mount NEMA Rating L21-20R Number Of Poles 4 Number of Wires 5 Phase 3 Returnable Y Size 3.28 in x 1.70 in x 1.23 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 Stock Status NORMALLY STOCKED Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Single Flush Receptacle UNSPSC 39121406 UPC 11 78358523585 UPC 12 783585235851 Voltage Rating 3 Phase WYE 120/208 VAC Wattage 4,160 W Width 2.00 in Width [Metric] 5.0800 cm Wire Size #16 AWG to #8 AWG Heavy Duty Industrial Standard Withstands 2000 VAC dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise #8-32 brass terminal and ground screw 14 to 8 AWG terminal accommodation Certified for current interrupting at full rated current interrupting Steel zinc plated mounting screw Nylon polyester base 0.04 in brass ground contact, 0.05 in brass bridge (mounting strap) 0.04 in brass backplate Brass rivet Stainless steel auto ground clip Molded in or stamped on ratings Permanently ink marked on product catalog number Withstands 2000 VAC minimum dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification Flush mounted Screw mounting 14 to 8 AWG wire size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Brand | Hubbell Wiring Device-Kellems |
| Buy American Compliant | C |
| Catalog Number | HBL2510 |
| Color | Black |
| Connection | Screw Terminal |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.7 in W x 1.23 in D |
| Enclosure | NEMA 4X/12/IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3850 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 2 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Manufacturer | Hubbell |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | L21-20R |
| Number Of Poles | 4 |
| Number of Wires | 5 |
| Phase | 3 |
| Returnable | Y |
| Size | 3.28 in x 1.70 in x 1.23 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Single Flush Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523585 |
| UPC 12 | 783585235851 |
| Voltage Rating | 3 Phase WYE 120/208 VAC |
| Wattage | 4,160 W |
| Width | 2.00 in |
| Width [Metric] | 5.0800 cm |
| Wire Size | #16 AWG to #8 AWG |
| Heavy Duty Industrial |
| Standard |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #8-32 brass terminal and ground screw |
| 14 to 8 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Steel zinc plated mounting screw |
| Nylon polyester base |
| 0.04 in brass ground contact, 0.05 in brass bridge (mounting strap) |
| 0.04 in brass backplate |
| Brass rivet |
| Stainless steel auto ground clip |
| Molded in or stamped on ratings |
| Permanently ink marked on product catalog number |
| Withstands 2000 VAC minimum dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| Flush mounted |
| Screw mounting |
| 14 to 8 AWG wire size |
