Hubbell Wiring Device-Kellems

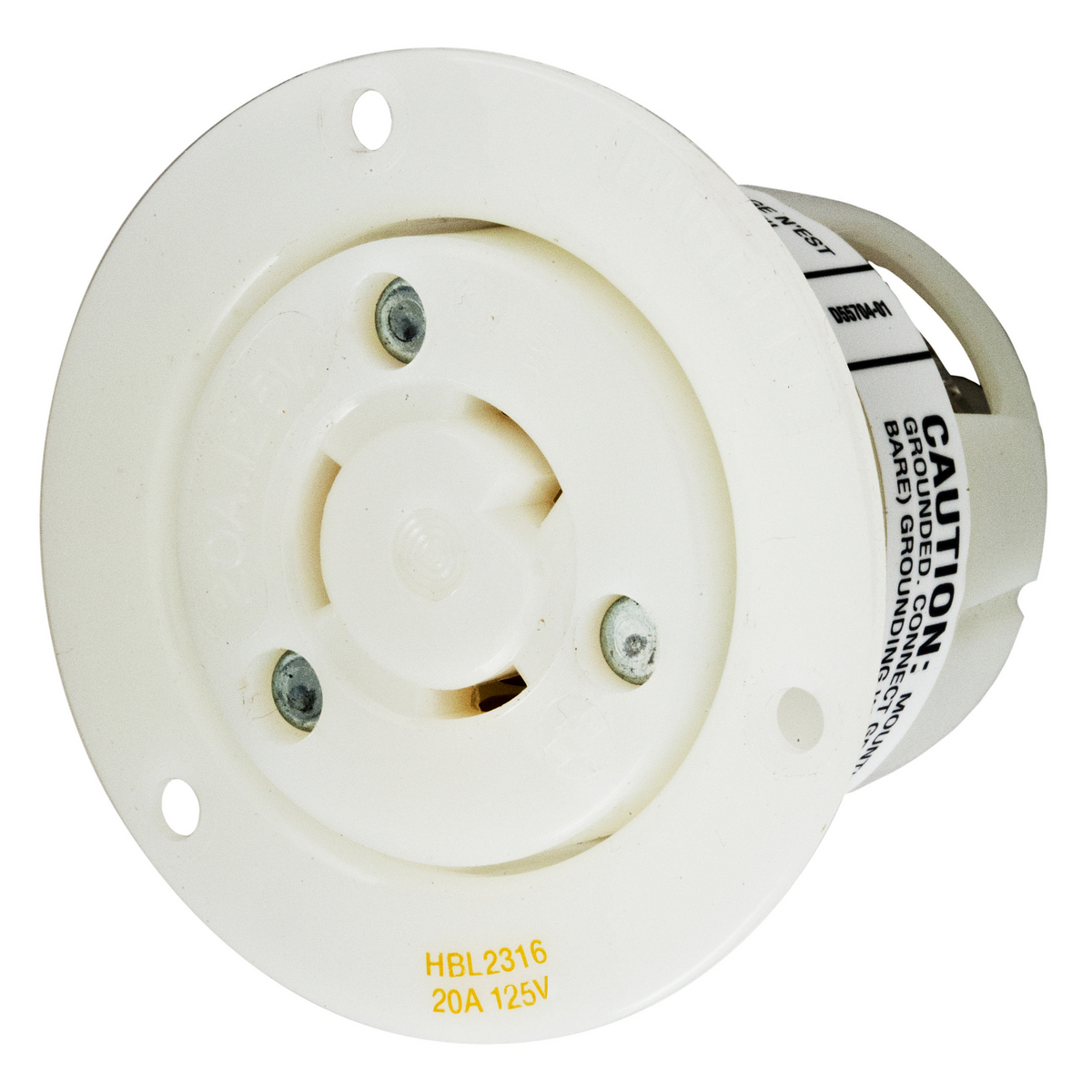

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2316 Standard Flanged Receptacle With Mounting Screw, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2316 Standard Flanged Receptacle With Mounting Screw, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU26280
MFGR #HBL2316
Your Cost: $54.68/ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Flanged Receptacle, Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 in Dia x 2.08 in L
Wiring Device-Kellems Twist-Lock® Insulgrip® Flanged Receptacle, Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 in Dia x 2.08 in L
Application Insulgrip ARRA Compliant C Buy American Compliant C Catalog Number HBL2316 Connection Screw Terminal Cord Diameter 2.88 in Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 4.4 in L x 2.77 in W x 2.77 in H Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.50 in Height [Metric] 6.3500 cm Horsepower 1 hp Length 3.00 in Length [Metric] 7.6200 cm Material Nylon Mounting Screw Mount NEMA Rating L5-20R Number Of Poles 2 Phase 1 Returnable Y Size 2.88 in x 2.88 in x 2.09 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42/0.17UL94HB Flammability RatingFederal Specification W-C-596NEMA WD1/WD5 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Back Wired/Screw Type Flanged Receptacle UNSPSC 39121406 UPC 11 78358503780 UPC 12 783585037806 Wattage 2,500 W Width 3.00 in Width [Metric] 7.6200 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 VAC Insulgrip Standard NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson) Backwired terminations for ease of installation NO 10 to 32 multiple drive terminal screws (slotted, phillips, robertson) Clear polycarbonate terminal retainer 0.08 in steel nickel plated terminal clamp, NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw material, steel, zinc plated multi-drive cord clamp screw arterial and body holding screw material natural white nylon body contact carrier and flanged casing material Brass contact spring and spring binding plate material 0.031 in brass ground contacts Withstands 2000 VAC minimum dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 20 A, 12 AWG terminal accommodation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Insulgrip |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2316 |
| Connection | Screw Terminal |
| Cord Diameter | 2.88 in |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 4.4 in L x 2.77 in W x 2.77 in H |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Horsepower | 1 hp |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | L5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 2.88 in x 2.88 in x 2.09 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42/0.17UL94HB Flammability RatingFederal Specification W-C-596NEMA WD1/WD5 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back Wired/Screw |
| Type | Flanged Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358503780 |
| UPC 12 | 783585037806 |
| Wattage | 2,500 W |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Insulgrip |
| Standard |
| NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson) |
| Backwired terminations for ease of installation |
| NO 10 to 32 multiple drive terminal screws (slotted, phillips, robertson) |
| Clear polycarbonate terminal retainer |
| 0.08 in steel nickel plated terminal clamp, NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw material, steel, zinc plated multi-drive cord clamp screw arterial and body holding screw material |
| natural white nylon body contact carrier and flanged casing material |
| Brass contact spring and spring binding plate material |
| 0.031 in brass ground contacts |
| Withstands 2000 VAC minimum dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 20 A, 12 AWG terminal accommodation |
