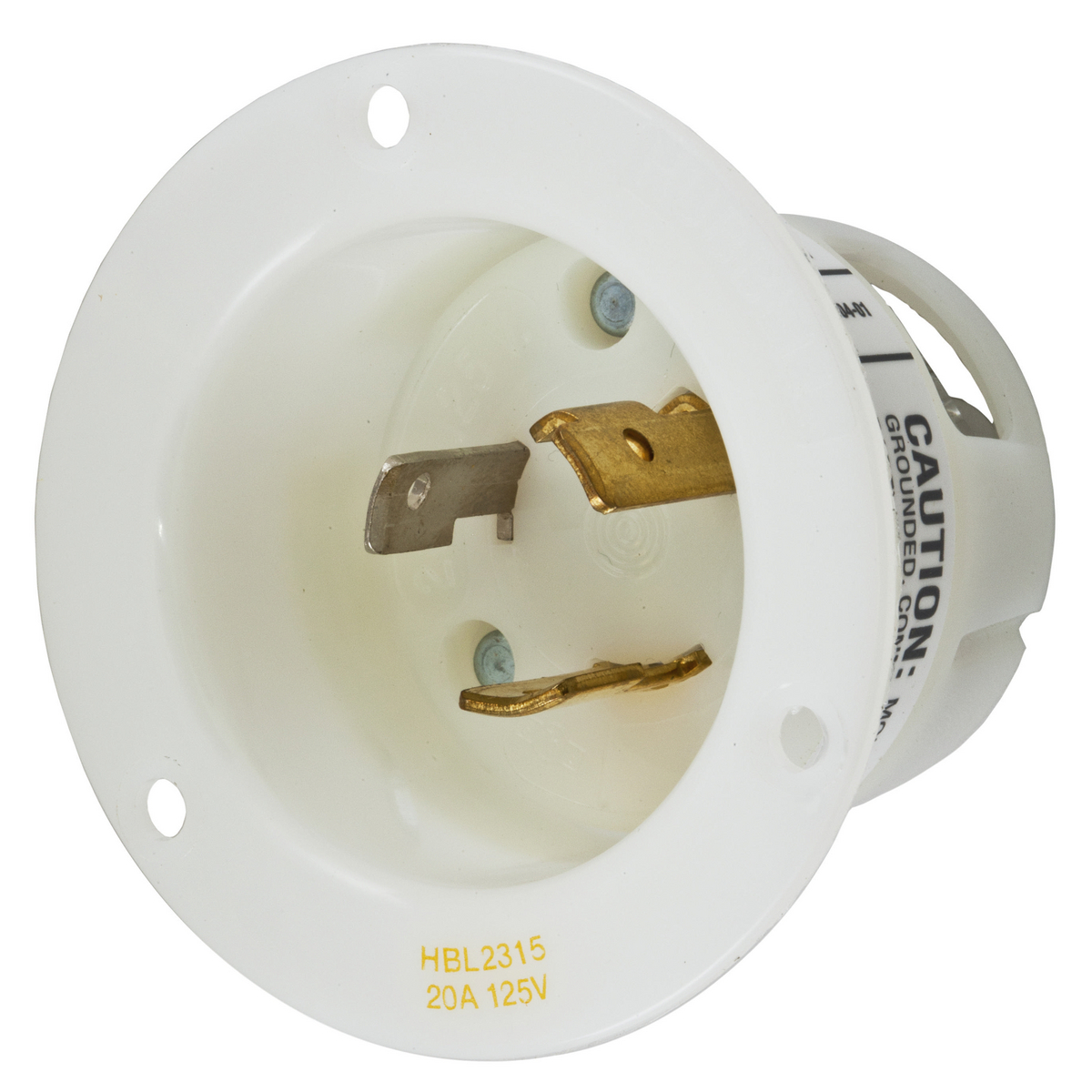

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2315 Extra Heavy Duty Grounding Locking Flanged Inlet With Mounting Screw, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2315 Extra Heavy Duty Grounding Locking Flanged Inlet With Mounting Screw, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU26279
MFGR #HBL2315
Your Cost: $33.03/ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Flanged Inlet, Extra Heavy Duty Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20P, Grade: Industrial, NEMA 4/4X/12/IP44 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, White, 2.88 in Dia x 2.09 in L
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Flanged Inlet, Extra Heavy Duty Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20P, Grade: Industrial, NEMA 4/4X/12/IP44 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, White, 2.88 in Dia x 2.09 in L
Application Extra Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number HBL2315 Connection Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 2.88 in Dia x 2.09 in L Enclosure NEMA 4/4X/12/IP44 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.45 in Height [Metric] 6.2230 cm Horsepower 1 hp Insulation Insulated Body Length 3.00 in Length [Metric] 7.6200 cm Material Nylon Mounting Screw Mount NEMA Rating L5-20P Number Of Poles 2 Phase 1 Returnable Y Size 2.88 in x 2.88 in x 2.09 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards UL 498 Listed, Federal Specification W-C-596, CSA C22.2 No. 42 Certified, NEMA WD1, WD5 Compliant Sub Brand Twist-Lock Devices Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Screw Type Flanged Inlet UNSPSC 39121406 UPC 11 78358503778 UPC 12 783585037783 Wattage 2,500 W Width 2.98 in Width [Metric] 7.5692 cm Wire Size #16 AWG to #8 AWG Stock Status NORMALLY STOCKED Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 VAC Extra Heavy Duty Industrial Standard Product Impact resistant thermoplastic construction Backwired terminations for ease of installation 32 to 10 AWG multiple drive terminal screws slotted, Phillips and Robertson Withstands 2000 VAC minimum dielectric voltage 16 to 8 AWG terminal accommodation Clear polycarbonate terminal retainer Brass blade material, NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, NO 10 to 32 brass (green finish) multi-drive ground screw 0.08 in steel nickel plated terminal clamp Steel zinc plated body holding screw Natural white nylon body contact carrier material and flanged casing material Nickel plated brass round head screws mounting screw material
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2315 |
| Connection | Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 2.88 in Dia x 2.09 in L |
| Enclosure | NEMA 4/4X/12/IP44 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.45 in |
| Height [Metric] | 6.2230 cm |
| Horsepower | 1 hp |
| Insulation | Insulated Body |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | L5-20P |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 2.88 in x 2.88 in x 2.09 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | UL 498 Listed, Federal Specification W-C-596, CSA C22.2 No. 42 Certified, NEMA WD1, WD5 Compliant |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Screw |
| Type | Flanged Inlet |
| UNSPSC | 39121406 |
| UPC 11 | 78358503778 |
| UPC 12 | 783585037783 |
| Wattage | 2,500 W |
| Width | 2.98 in |
| Width [Metric] | 7.5692 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Extra Heavy Duty Industrial |
| Standard Product |
| Impact resistant thermoplastic construction |
| Backwired terminations for ease of installation |
| 32 to 10 AWG multiple drive terminal screws slotted, Phillips and Robertson |
| Withstands 2000 VAC minimum dielectric voltage |
| 16 to 8 AWG terminal accommodation |
| Clear polycarbonate terminal retainer |
| Brass blade material, NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, NO 10 to 32 brass (green finish) multi-drive ground screw |
| 0.08 in steel nickel plated terminal clamp |
| Steel zinc plated body holding screw |
| Natural white nylon body contact carrier material and flanged casing material |
| Nickel plated brass round head screws mounting screw material |
