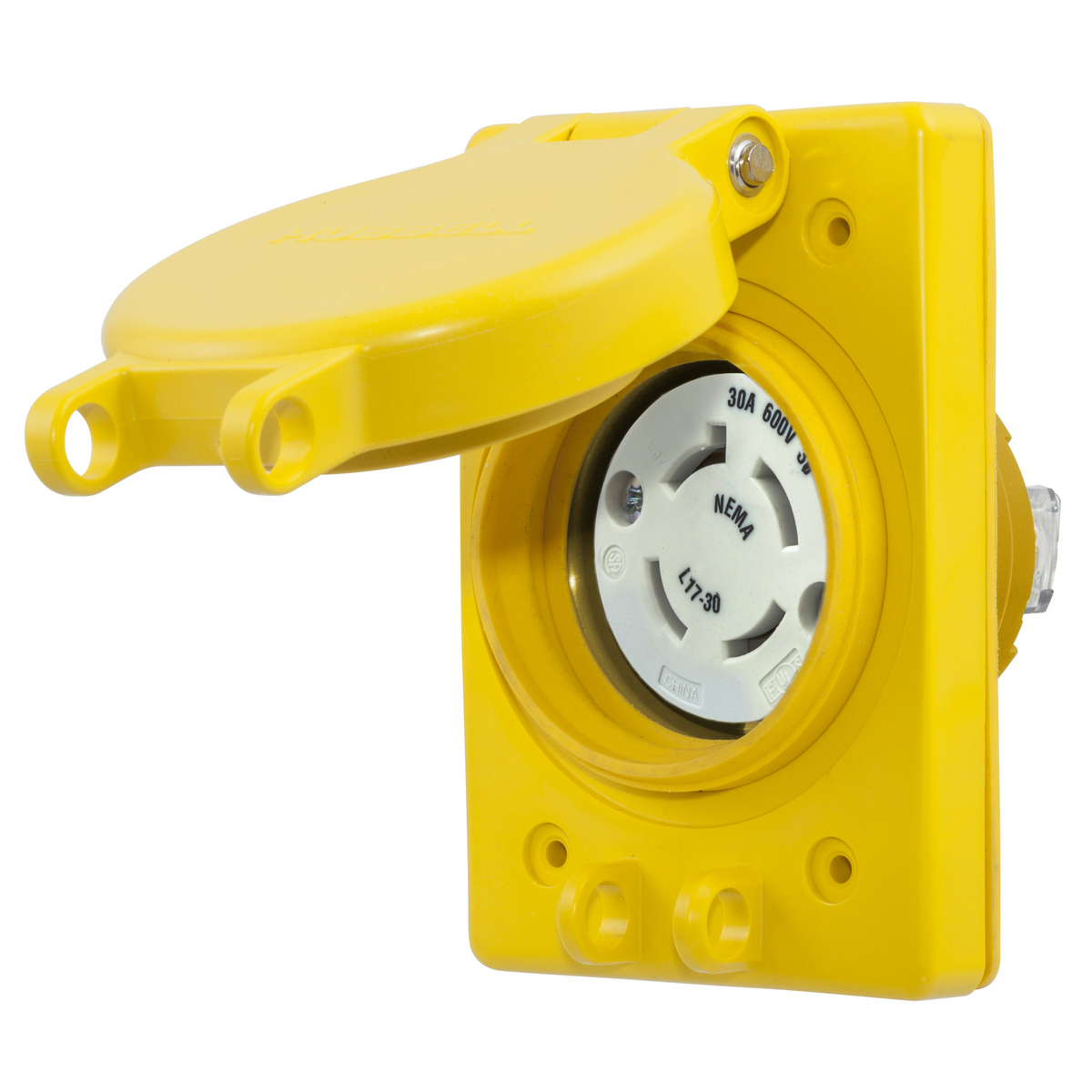

Hubbell Wiring Device-Kellems Twist-Lock® HBL69W77 Grounding Single Watertight Locking Receptacle With Lift Cover, 600 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBL69W77 Grounding Single Watertight Locking Receptacle With Lift Cover, 600 VAC, 30 A, 3 Poles, 4 Wires, Yellow
SKU948994
MFGR #HBL69W77
$/ea
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
ARRA Compliant C Buy American Compliant C Catalog Number HBL69W77 Country of Origin US Currency USD Dimensions 4.56 in H x 3.1 in W x 1.2 in D Enclosure NEMA 4/4X/12/6/6P/IP65/IP66/IP67 EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.42 in Height [Metric] 8.6817 cm Length 5.17 in Length [Metric] 13.1267 cm Material Composite/Elastomer NEMA Rating L17-30R Number Of Poles 3 Returnable N Size 4.56 in x 3.10 in x 2.92 in Standard IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1/WD6 Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358543330 UPC 12 783585433301 Width 3.17 in Width [Metric] 8.0467 cm Wire Size #18 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 4 Voltage Rating 600 VAC Impact-resistant PBT lid, cover plate and receptacle body Stainless steel hardware and corrosion-resistant connection points Thermoplastic elastomer seal
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL69W77 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.56 in H x 3.1 in W x 1.2 in D |
| Enclosure | NEMA 4/4X/12/6/6P/IP65/IP66/IP67 |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.42 in |
| Height [Metric] | 8.6817 cm |
| Length | 5.17 in |
| Length [Metric] | 13.1267 cm |
| Material | Composite/Elastomer |
| NEMA Rating | L17-30R |
| Number Of Poles | 3 |
| Returnable | N |
| Size | 4.56 in x 3.10 in x 2.92 in |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1/WD6 |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358543330 |
| UPC 12 | 783585433301 |
| Width | 3.17 in |
| Width [Metric] | 8.0467 cm |
| Wire Size | #18 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 4 |
| Voltage Rating | 600 VAC |
| Impact-resistant PBT lid, cover plate and receptacle body |
| Stainless steel hardware and corrosion-resistant connection points |
| Thermoplastic elastomer seal |
