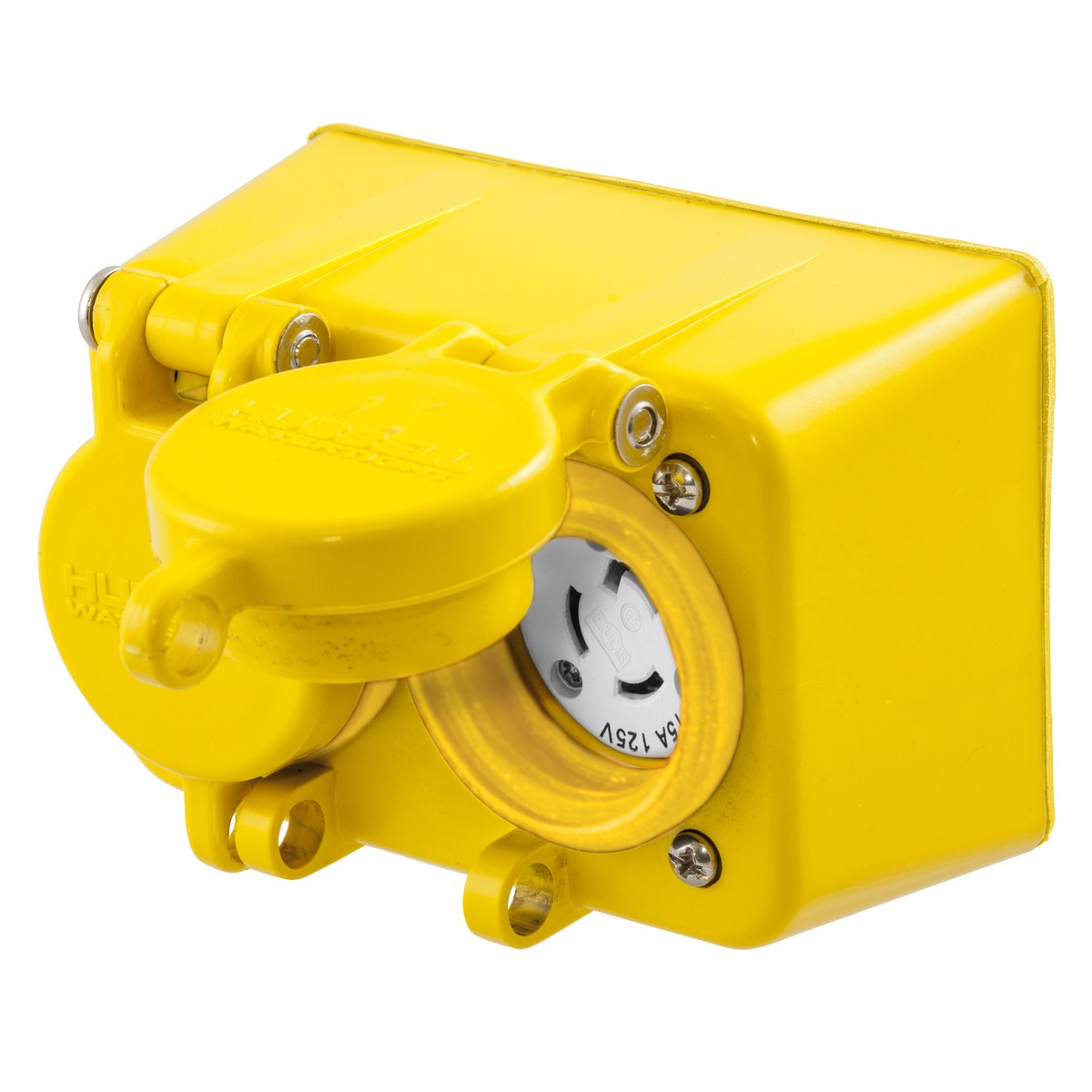

Hubbell Wiring Device-Kellems Twist-Lock® HBL65W47D Duplex Grounding Standard Watertight Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBL65W47D Duplex Grounding Standard Watertight Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU1110863
MFGR #HBL65W47D
Your Cost: $165.83/ea
Wiring Device-Kellems Twist-Lock® Straight Blade Receptacle, Duplex Grounding Standard Watertight, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA L5-15R, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, -40 to 60 deg C, Screw Terminal, Composite, Yellow
Wiring Device-Kellems Twist-Lock® Straight Blade Receptacle, Duplex Grounding Standard Watertight, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA L5-15R, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, -40 to 60 deg C, Screw Terminal, Composite, Yellow
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL65W47D Connection Terminal Screws Country of Origin PR Currency USD Enclosure NEMA 4/4X/12/6/6P Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 3.40 in Height [Metric] 8.6360 cm Length 5.10 in Length [Metric] 12.9540 cm Material Composite Mounting Mounting Screws NEMA Rating L5-15R Number Of Poles 2 Phase 1 Returnable Y Size Standard Sized Product Standard IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedCSA C22.2 No. 42NEMA WD1/WD6UL 498 Sub Brand Straight Blade Temperature Rating -40 to 60 °C Terminal Type Screw Type Duplex Receptacle UNSPSC 39121406 UPC 11 78358552874 UPC 12 783585528748 Wattage 1,875 W Width 5.10 in Width [Metric] 12.9540 cm Wire Size #18 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Yellow Number of Wires 3 Voltage Rating 125 V Industrial/Commercial Standard Product Impact resistant PBT lid, cover plate and receptacle body Thermoplastic elastomer seal Stainless steel hardware and corrosion resistant connection points
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL65W47D |
| Connection | Terminal Screws |
| Country of Origin | PR |
| Currency | USD |
| Enclosure | NEMA 4/4X/12/6/6P |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 5.10 in |
| Length [Metric] | 12.9540 cm |
| Material | Composite |
| Mounting | Mounting Screws |
| NEMA Rating | L5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | Standard Sized Product |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedCSA C22.2 No. 42NEMA WD1/WD6UL 498 |
| Sub Brand | Straight Blade |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Duplex Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358552874 |
| UPC 12 | 783585528748 |
| Wattage | 1,875 W |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Wire Size | #18 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial/Commercial |
| Standard Product |
| Impact resistant PBT lid, cover plate and receptacle body |
| Thermoplastic elastomer seal |
| Stainless steel hardware and corrosion resistant connection points |
