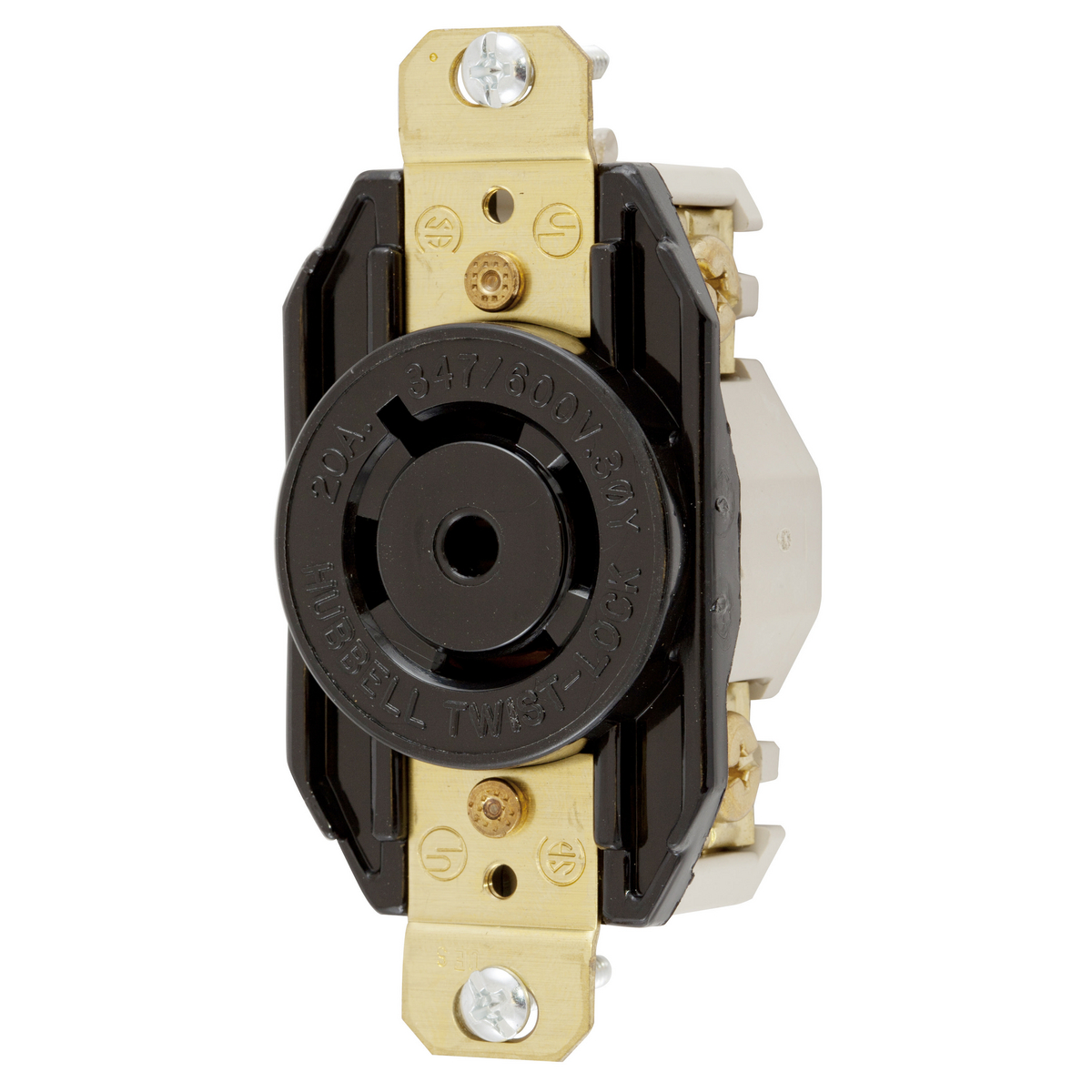

Hubbell Wiring Device-Kellems Twist-Lock® HBL2530 Grounding Heavy Duty Single Locking Receptacle, 347/600 VAC, 20 A, 4 Poles, 5 Wires, Black
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBL2530 Grounding Heavy Duty Single Locking Receptacle, 347/600 VAC, 20 A, 4 Poles, 5 Wires, Black
SKU91957
MFGR #HBL2530
$/ea
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Heavy Duty Single, 347/600 VAC, 20 A, 4 Poles, 5 Wires, NEMA L23-20R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 3.28 in H x 1.7 in W x 1.23 in D
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Heavy Duty Single, 347/600 VAC, 20 A, 4 Poles, 5 Wires, NEMA L23-20R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 3.28 in H x 1.7 in W x 1.23 in D
Application Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number HBL2530 Connection Screw Terminal Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.7 in W x 1.23 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Length 4.30 in Length [Metric] 10.9220 cm Material Nylon Mounting Screw Mount NEMA Rating L23-20R Number Of Poles 4 Phase 3 Returnable Y Size 3.28 in x 1.70 in x 1.23 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Single Flush Receptacle UNSPSC 39121406 UPC 11 78358523589 UPC 12 783585235899 Wattage 12,000 W Width 2.00 in Width [Metric] 5.0800 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Black Number of Wires 5 Voltage Rating 3 Phase WYE 347/600 VAC Heavy Duty Industrial Standard Withstands 2000 VAC dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise #10-32 brass terminal screw and ground screw 14 to 8 AWG terminal accommodation Certified for current interrupting at full rated current interrupting Steel zinc plated mounting screw
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2530 |
| Connection | Screw Terminal |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.7 in W x 1.23 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | L23-20R |
| Number Of Poles | 4 |
| Phase | 3 |
| Returnable | Y |
| Size | 3.28 in x 1.70 in x 1.23 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Single Flush Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523589 |
| UPC 12 | 783585235899 |
| Wattage | 12,000 W |
| Width | 2.00 in |
| Width [Metric] | 5.0800 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Black |
| Number of Wires | 5 |
| Voltage Rating | 3 Phase WYE 347/600 VAC |
| Heavy Duty Industrial |
| Standard |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 brass terminal screw and ground screw |
| 14 to 8 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Steel zinc plated mounting screw |
