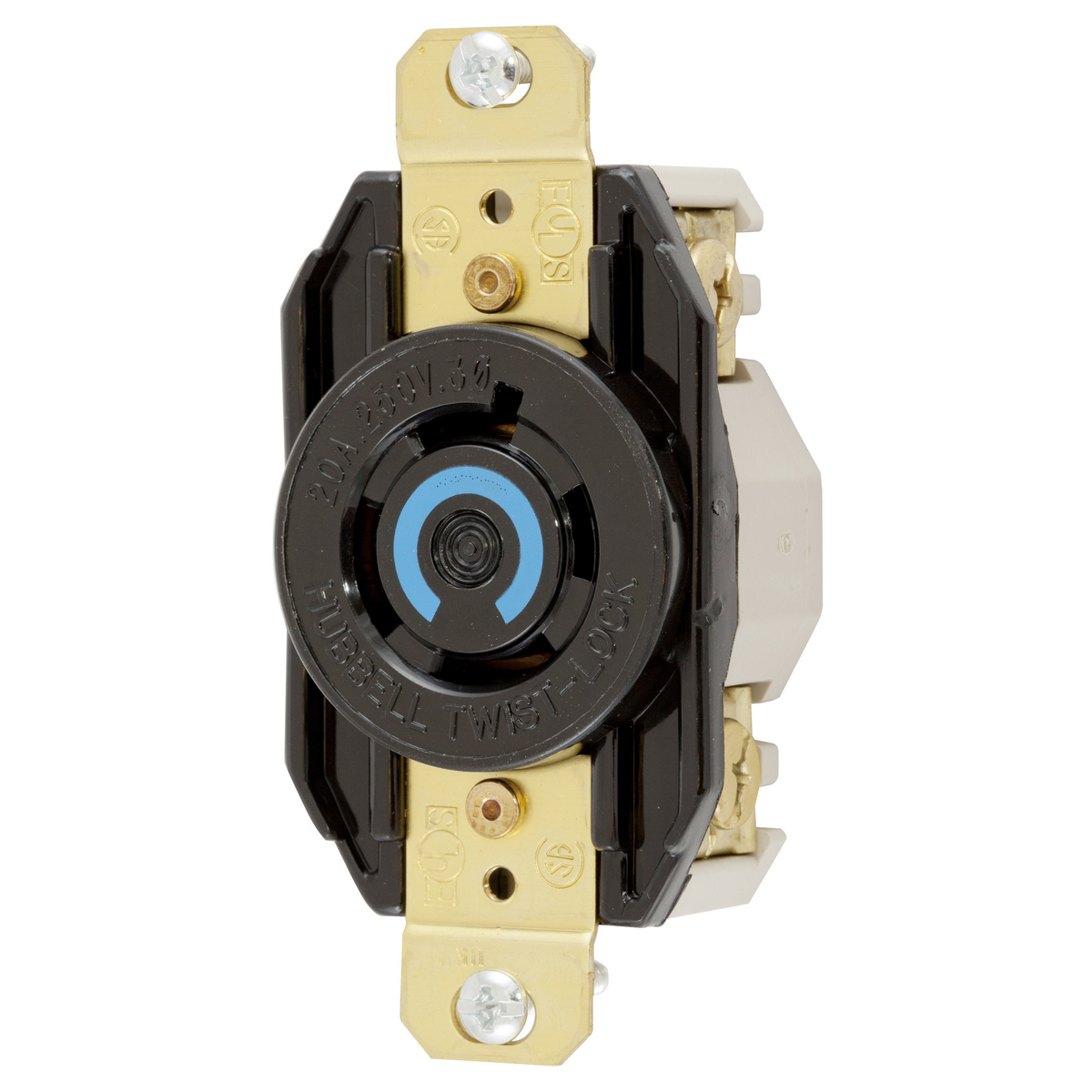

Hubbell Wiring Device-Kellems Twist-Lock® HBL2420 Grounding Locking Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Black
Locking Receptacles
26589
MFG #: HBL2420
Hubbell Wiring Device-Kellems
59.14000
/ ea
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding, 250 VAC, 20 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-20R, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Polyester, Black, 3.28 in L x 1.7 in W x 1.23 in D
- http://www.hubbell-wiring.com/(WEB SELLER HOME PAGE URL)
- Install Instructions 1 URL - WIRING_PD2445_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537663235642.pdf(Install Instructions URL)
- Line Drawing URL - WDK_HBL2420_DRAWING_PDF.pdf(Line Drawing URL)
- None Required(WEB SDS URL)
- Warrantly URL - Wiring_WDK_Warranty.pdf(Warrantly URL)
- WEB CATALOG URL - Wiring_Device_Kellems_HBL20403_Catalog.pdf(WEB CATALOG URL)
- WEB SPEC SHEET URL - WIRING_HBL2420_spec.pdf(WEB SPEC SHEET URL)
- WEB TECH DRAWING URL - IDW_DOCUMENT_1537664696575.pdf(WEB TECH DRAWING URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 bronze terminal and ground screw |
| 12 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Steel zinc plated mounting screw |
