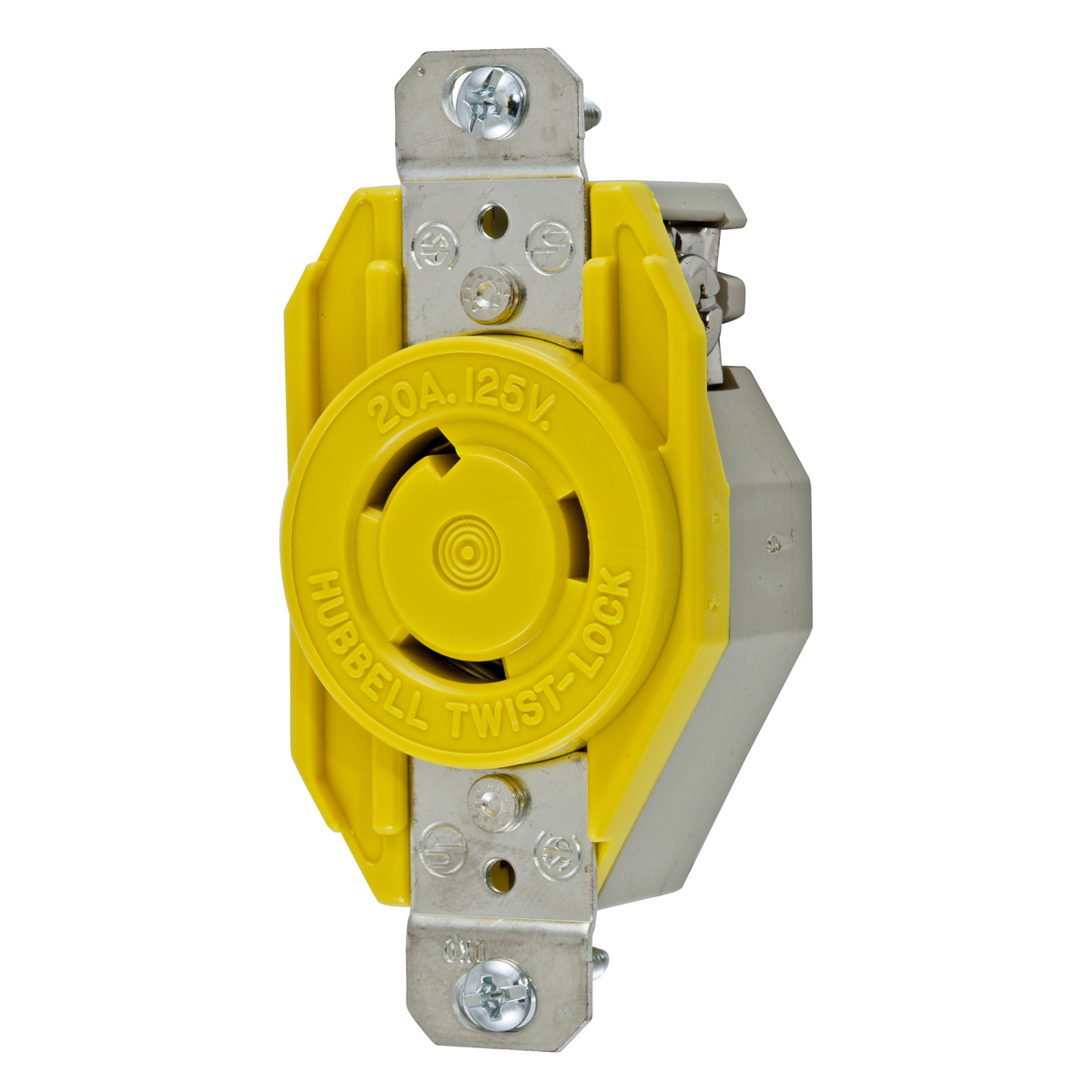

Hubbell Wiring Device-Kellems Twist-Lock® HBL23CM10 Flush Mount Grounding Single Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBL23CM10 Flush Mount Grounding Single Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU92651
MFGR #HBL23CM10
Your Cost: $45.75/ea
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Flush Mount Grounding Single, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA L5-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 1.703 in W x 1.234 in D
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Flush Mount Grounding Single, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA L5-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 1.703 in W x 1.234 in D
Application Marine Wiring Devices ARRA Compliant C Buy American Compliant C Catalog Number HBL23CM10 Connection Screw Terminal Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.703 in W x 1.234 in D Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 2.30 in Height [Metric] 5.8420 cm Horsepower 1 hp Length 9.35 in Length [Metric] 23.7490 cm Material Nylon Mounting Screw Mount NEMA Rating L5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.73 in x 1.23 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards CSA C22.2 No. 42Federal Specification W-C-596UL 498 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Single Receptacle UNSPSC 39121406 UPC 11 78358580814 UPC 12 783585808147 Wattage 3,750 W Width 5.25 in Width [Metric] 13.3350 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 3 Voltage Rating 125 VAC Marine Wiring Devices Corrosion Resistant 0.04 in brass terminal clamp material NO 10 to 32 bronze (white finish on neutral screw when used) terminal screw NO 10 to 32 brass (green finish) ground screw 0.04 in brass contact spring, ground contact and back plate Zinc plated steel mounting screws Black nylon cover (top), nylon polyester base 0.05 in brass bridge mounting strap Brass rivet, stainless steel auto ground clip Molded in or stamped on ratings Permanently ink marked on product catalog number Withstand 2000 VAC minimum dielectric voltage Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 20 A 12 AWG terminal accommodation Terminals identified in accordance with UL498 (x, y, z, white, green) HB or better per UL 94 or CSA 22.2 no. 0.6 flammability Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection Face color coding by voltage facilitates locating and mating of proper devices Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems Corrosion resistant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Marine Wiring Devices |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL23CM10 |
| Connection | Screw Terminal |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.703 in W x 1.234 in D |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 2.30 in |
| Height [Metric] | 5.8420 cm |
| Horsepower | 1 hp |
| Length | 9.35 in |
| Length [Metric] | 23.7490 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | L5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.73 in x 1.23 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | CSA C22.2 No. 42Federal Specification W-C-596UL 498 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358580814 |
| UPC 12 | 783585808147 |
| Wattage | 3,750 W |
| Width | 5.25 in |
| Width [Metric] | 13.3350 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Marine Wiring Devices |
| Corrosion Resistant |
| 0.04 in brass terminal clamp material |
| NO 10 to 32 bronze (white finish on neutral screw when used) terminal screw |
| NO 10 to 32 brass (green finish) ground screw |
| 0.04 in brass contact spring, ground contact and back plate |
| Zinc plated steel mounting screws |
| Black nylon cover (top), nylon polyester base |
| 0.05 in brass bridge mounting strap |
| Brass rivet, stainless steel auto ground clip |
| Molded in or stamped on ratings |
| Permanently ink marked on product catalog number |
| Withstand 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 20 A 12 AWG terminal accommodation |
| Terminals identified in accordance with UL498 (x, y, z, white, green) |
| HB or better per UL 94 or CSA 22.2 no. 0.6 flammability |
| Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection |
| Face color coding by voltage facilitates locating and mating of proper devices |
| Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems |
| Corrosion resistant |
