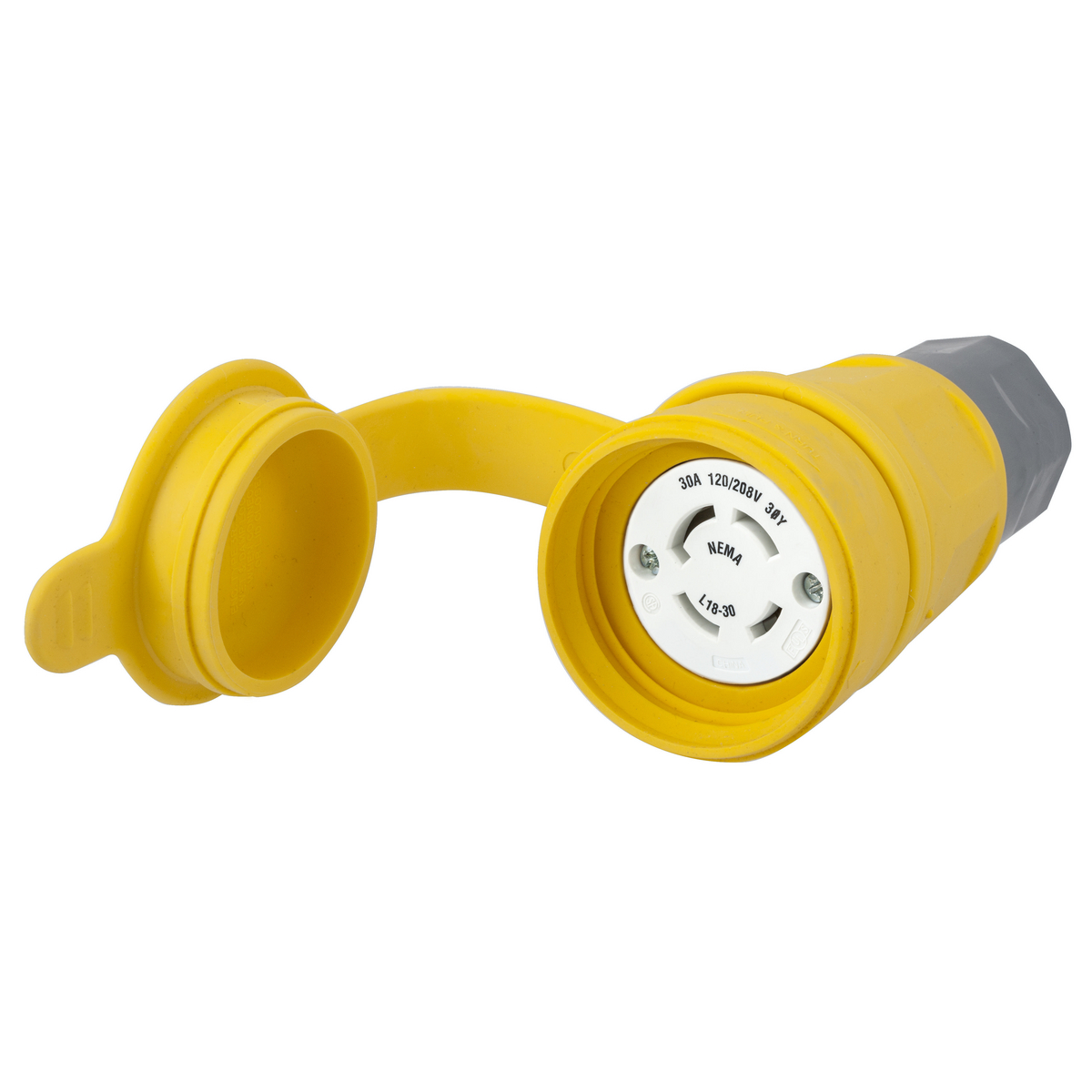

Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W78 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 4 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W78 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 4 Wires, Yellow
SKU857007
MFGR #HBL29W78
$/ea
Wiring Device-Kellems Twist-Lock® Elastogrip® Female Connector, 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight, 120Y/208 VAC, 30 A, 4 Pole, 4 Wires, L18-30R/WD1/WD6, Commercial/Industrial Grade, IP65/IP66/IP67/NEMA 4/4X/12/6/6P Enclosure, 3/8 to 1 in Cord Dia, -40 to 75 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 5.67 in L x 2.77 in W
Wiring Device-Kellems Twist-Lock® Elastogrip® Female Connector, 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight, 120Y/208 VAC, 30 A, 4 Pole, 4 Wires, L18-30R/WD1/WD6, Commercial/Industrial Grade, IP65/IP66/IP67/NEMA 4/4X/12/6/6P Enclosure, 3/8 to 1 in Cord Dia, -40 to 75 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 5.67 in L x 2.77 in W
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Connection Terminal Screws Country of Origin PR Currency USD Environmental Conditions Water Tight EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 1.0500 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.80 in Height [Metric] 7.1120 cm Insulation Insulated Body Length 7.30 in Length [Metric] 18.5420 cm Material Composite Mounting Cord Mounted Number Of Conductors 5-Wire Grounding Number Of Poles 4 Returnable Y Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Screw Type Connector Body UNSPSC 39121421 Width 6.10 in Width [Metric] 15.4940 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 4
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Connection | Terminal Screws |
| Country of Origin | PR |
| Currency | USD |
| Environmental Conditions | Water Tight |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 1.0500 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.80 in |
| Height [Metric] | 7.1120 cm |
| Insulation | Insulated Body |
| Length | 7.30 in |
| Length [Metric] | 18.5420 cm |
| Material | Composite |
| Mounting | Cord Mounted |
| Number Of Conductors | 5-Wire Grounding |
| Number Of Poles | 4 |
| Returnable | Y |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Screw |
| Type | Connector Body |
| UNSPSC | 39121421 |
| Width | 6.10 in |
| Width [Metric] | 15.4940 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 4 |
