Hubbell Wiring Device-Kellems

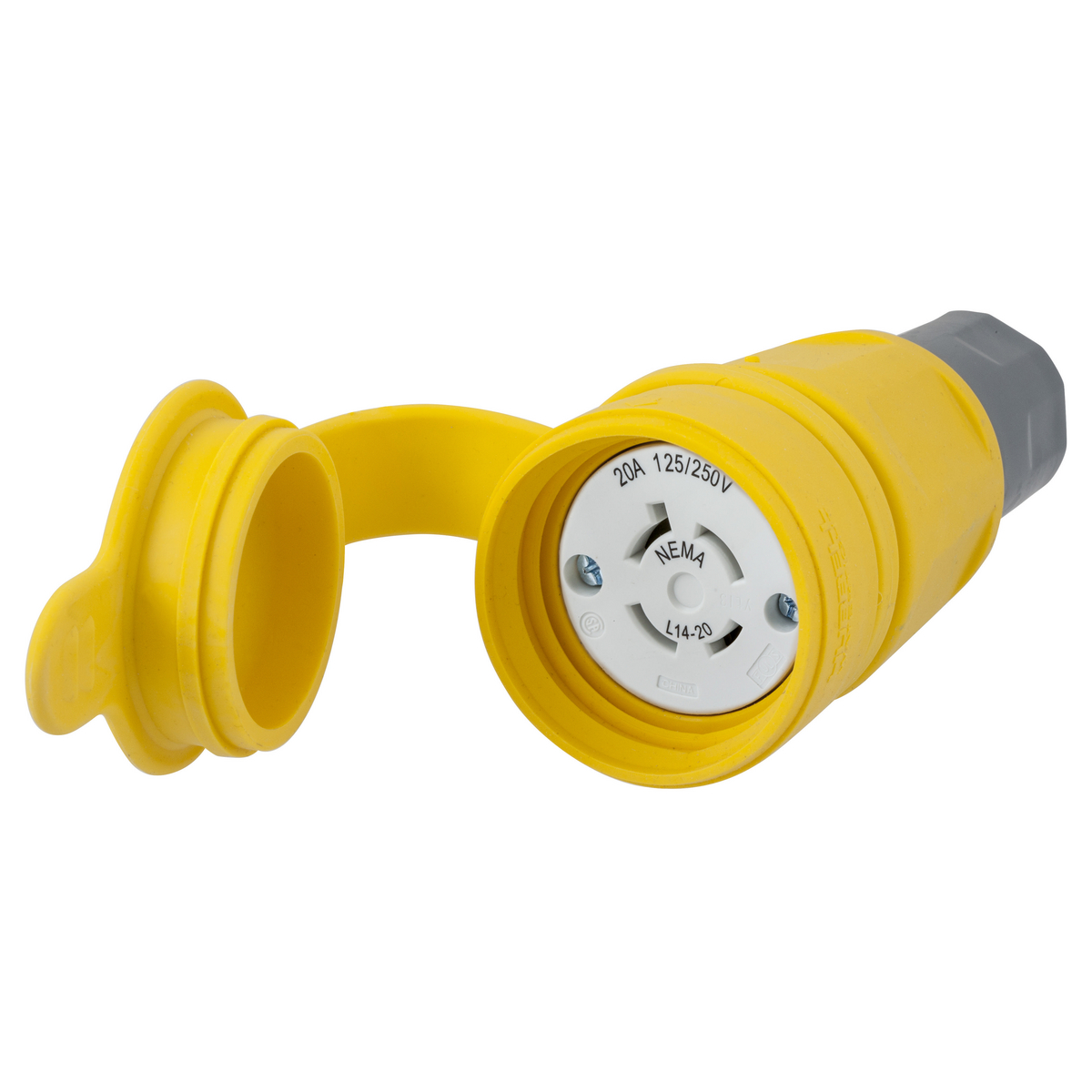

Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W74 Standard Sized Water/Dust-Tight Grounding Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W74 Standard Sized Water/Dust-Tight Grounding Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
SKU857002
MFGR #HBL27W74
$/ea
Wiring Device-Kellems Twist-Lock® Elastogrip® Locking Connector, Standard Sized Water/Dust-Tight Grounding, 125/250 VAC, 20 A, 3 Pole, 4 Wires, L14-20R/WD1/WD6, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 75 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 5.69 in L x 2.51 in W
Wiring Device-Kellems Twist-Lock® Elastogrip® Locking Connector, Standard Sized Water/Dust-Tight Grounding, 125/250 VAC, 20 A, 3 Pole, 4 Wires, L14-20R/WD1/WD6, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 75 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 5.69 in L x 2.51 in W
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL27W74 Conductor Range #14AWG to #10AWG Connection Terminal Screws Cord Diameter 3/8 to 7/8 in Country of Origin CN Currency USD Dimensions 5.69 in L x 2.51 in W Enclosure NEMA 4/4X/12/6/6P Environmental Conditions Water Tight EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.14 in Height [Metric] 5.4356 cm Insulation Insulated Body Length 7.93 in Length [Metric] 20.1422 cm Material Elastomer/Composite Mounting Cord Mounted NEMA Rating L14-20R Number Of Conductors 4-Wire Grounding Number Of Poles 3 Returnable Y Size 2.51 in x 2.51 in x 5.69 in Standard Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42ANSI Approved Sub Brand Twist-Lock Devices Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Screw Type Connector Body UNSPSC 39121421 UPC 11 78358513179 UPC 12 783585131795 Width 6.94 in Width [Metric] 17.6276 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Yellow Number of Wires 4 Voltage Rating 125/250 VAC Industrial/Commercial Watertight Smooth body design minimizes collection points simplifying the wash down process Strain relief nut always seals on the body, minimizing debris collection Stainless steel hardware and corrosion resistant connection points 3/8 to 7/8 in Dia cord White nylon contact carrier Clear polycarbonate terminal retainer Nickel plated brass contacts White nylon core Black elastomer bushing and cone seal Nylon gotcha ring PBT strain relief nut Nickel plated brass terminal screw Rated for current interruption per UL498 2500 VAC dielectric voltage 30 deg C maximum per UL498 at rated current temperature rise All exposed materials are UV stabilized NEMA L14-20R configuration
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL27W74 |
| Conductor Range | #14AWG to #10AWG |
| Connection | Terminal Screws |
| Cord Diameter | 3/8 to 7/8 in |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 5.69 in L x 2.51 in W |
| Enclosure | NEMA 4/4X/12/6/6P |
| Environmental Conditions | Water Tight |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.14 in |
| Height [Metric] | 5.4356 cm |
| Insulation | Insulated Body |
| Length | 7.93 in |
| Length [Metric] | 20.1422 cm |
| Material | Elastomer/Composite |
| Mounting | Cord Mounted |
| NEMA Rating | L14-20R |
| Number Of Conductors | 4-Wire Grounding |
| Number Of Poles | 3 |
| Returnable | Y |
| Size | 2.51 in x 2.51 in x 5.69 in |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42ANSI Approved |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Screw |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC 11 | 78358513179 |
| UPC 12 | 783585131795 |
| Width | 6.94 in |
| Width [Metric] | 17.6276 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 4 |
| Voltage Rating | 125/250 VAC |
| Industrial/Commercial |
| Watertight |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion resistant connection points |
| 3/8 to 7/8 in Dia cord |
| White nylon contact carrier |
| Clear polycarbonate terminal retainer |
| Nickel plated brass contacts |
| White nylon core |
| Black elastomer bushing and cone seal |
| Nylon gotcha ring |
| PBT strain relief nut |
| Nickel plated brass terminal screw |
| Rated for current interruption per UL498 |
| 2500 VAC dielectric voltage |
| 30 deg C maximum per UL498 at rated current temperature rise |
| All exposed materials are UV stabilized |
| NEMA L14-20R configuration |
