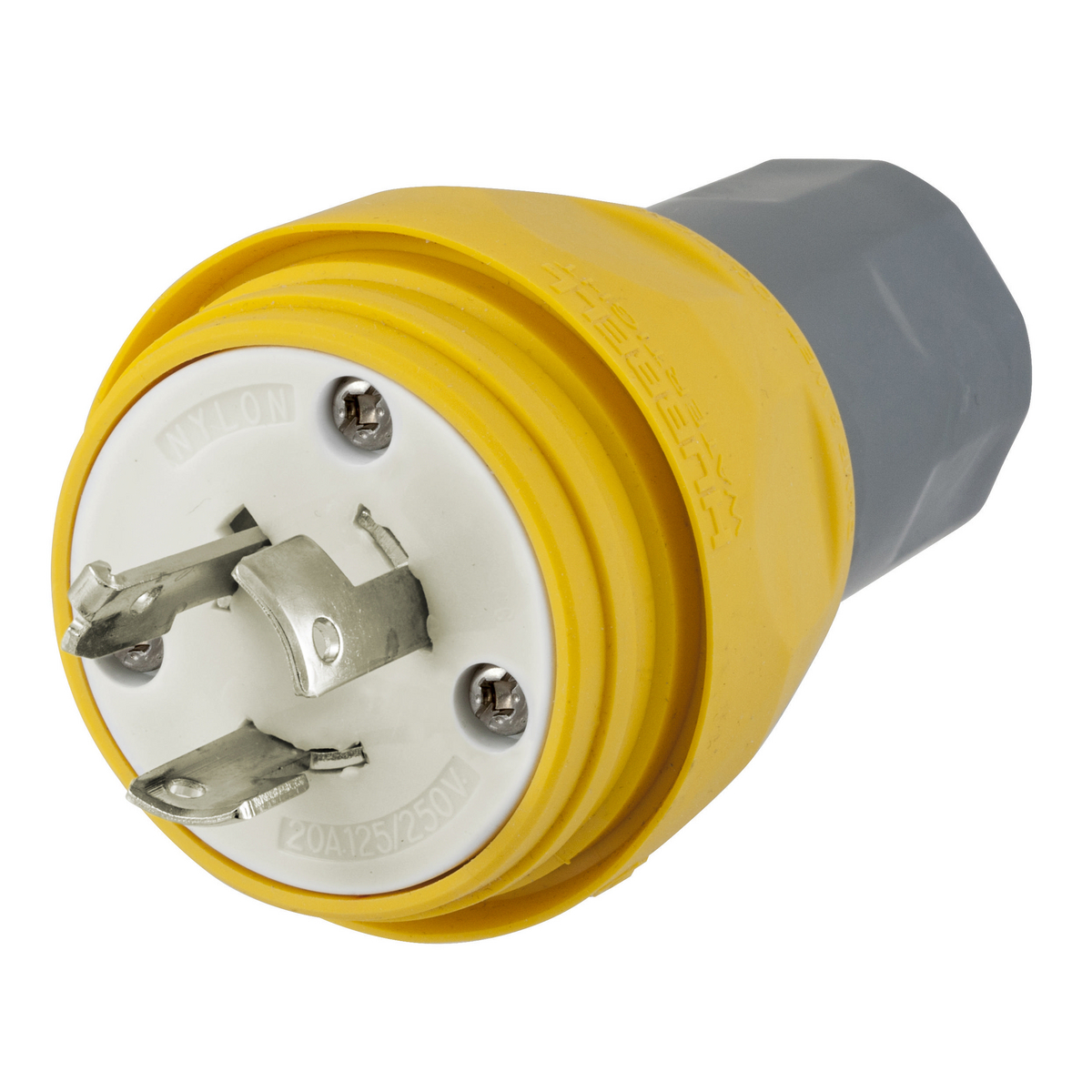

Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL26W08 1-Phase Non-Grounding Portable Standard Sized Watertight Male Plug, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL26W08 1-Phase Non-Grounding Portable Standard Sized Watertight Male Plug, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Yellow
SKU876805
MFGR #HBL26W08
Your Cost: $42.66/ea
Wiring Device-Kellems Twist-Lock® Elastogrip® Male Plug, 1-Phase Non-Grounding Portable Standard Sized Watertight, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 3.96 in L x 2.51 in W
Wiring Device-Kellems Twist-Lock® Elastogrip® Male Plug, 1-Phase Non-Grounding Portable Standard Sized Watertight, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 3.96 in L x 2.51 in W
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL26W08 Connection Terminal Screw Cord Diameter 3/8 to 7/8 in Cord Type All Portable Country of Origin US Currency USD Dimensions 3.96 in L x 2.51 in W Enclosure NEMA 4/4X/12/6/6P Environmental Conditions Watertight EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.10 in Height [Metric] 5.3340 cm Length 13.50 in Length [Metric] 34.2900 cm Material Composite Mounting Cord Mounted NEMA Rating NON-NEMA Number Of Poles 3 Phase 1 Returnable N Size 2.51 in x 2.51 in x 3.96 in Standard Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 500/498CSA C22.2 No. 42ANSI Approved Sub Brand Twist-Lock Temperature Rating -40 to 60 °C Terminal Type Screw Type Plugs UNSPSC 39121402 UPC 11 78358545629 UPC 12 783585456294 Wattage 5,000 W Width 9.00 in Width [Metric] 22.8600 cm Wire Size Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Yellow Number of Wires 3 Voltage Rating 125/250 VAC Industrial/Commercial Watertight Products Smooth body design minimizes collection points simplifying the wash down process Strain relief nut always seals on the body, minimizing debris collection Stainless steel hardware and corrosion resistant connection points
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL26W08 |
| Connection | Terminal Screw |
| Cord Diameter | 3/8 to 7/8 in |
| Cord Type | All Portable |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.96 in L x 2.51 in W |
| Enclosure | NEMA 4/4X/12/6/6P |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.10 in |
| Height [Metric] | 5.3340 cm |
| Length | 13.50 in |
| Length [Metric] | 34.2900 cm |
| Material | Composite |
| Mounting | Cord Mounted |
| NEMA Rating | NON-NEMA |
| Number Of Poles | 3 |
| Phase | 1 |
| Returnable | N |
| Size | 2.51 in x 2.51 in x 3.96 in |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 500/498CSA C22.2 No. 42ANSI Approved |
| Sub Brand | Twist-Lock |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC 11 | 78358545629 |
| UPC 12 | 783585456294 |
| Wattage | 5,000 W |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125/250 VAC |
| Industrial/Commercial |
| Watertight Products |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion resistant connection points |
