Hubbell Wiring Device-Kellems

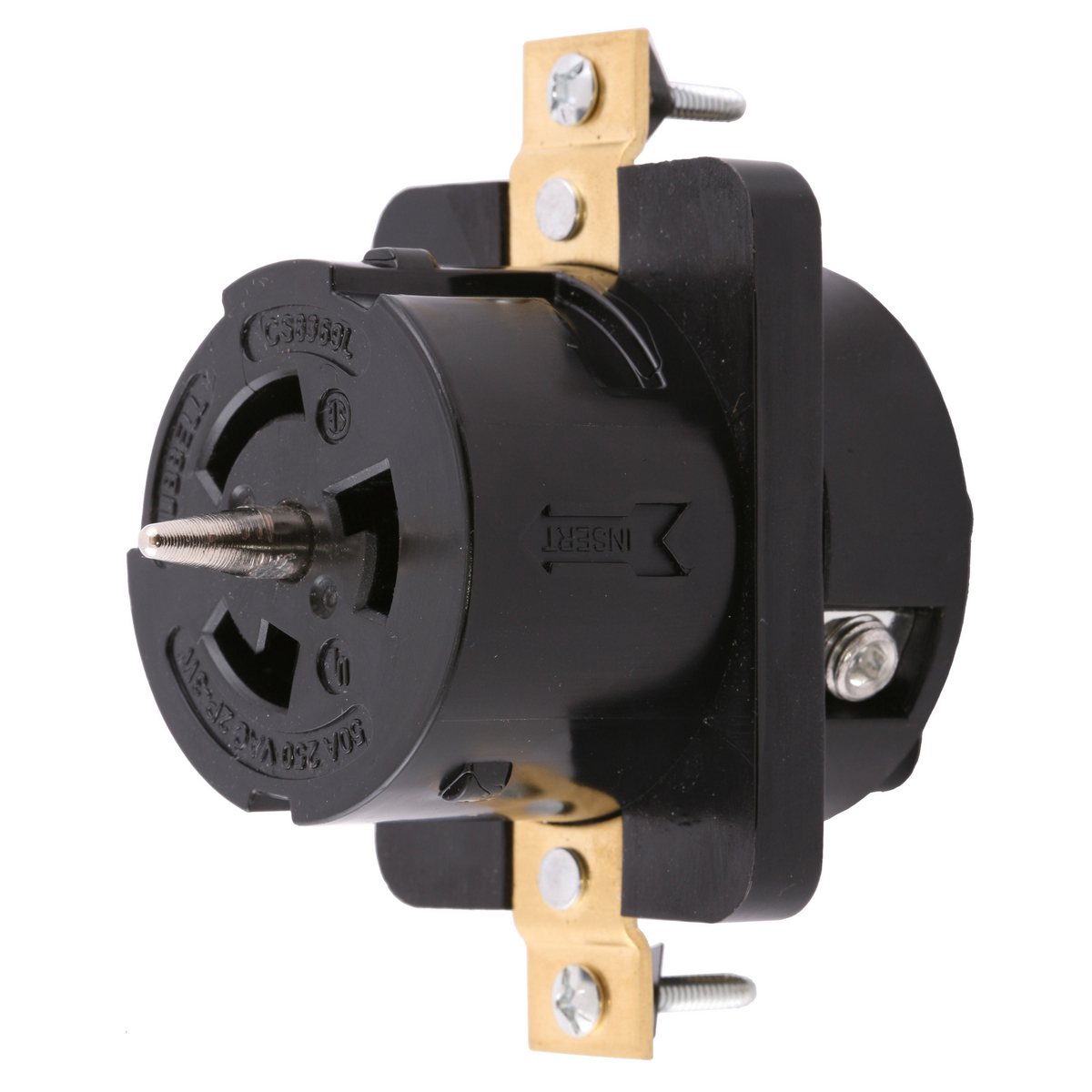

Hubbell Wiring Device-Kellems Twist-Lock® CS8369L Heavy Duty Insulated Standard Single Locking Receptacle, 250 VAC, 50 A, 3 Poles, 4 Wires, Black
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® CS8369L Heavy Duty Insulated Standard Single Locking Receptacle, 250 VAC, 50 A, 3 Poles, 4 Wires, Black
SKU988614
MFGR #CS8369L
Your Cost: $180.67/ea
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Heavy Duty Insulated Standard Single, 250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite, Black
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Heavy Duty Insulated Standard Single, 250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite, Black
Application Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number CS8369L Conductor Range #6 AWG Connection Screw Terminals Country of Origin CN Currency USD Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.30 in Height [Metric] 5.8420 cm Insulation Insulated Body Length 3.80 in Length [Metric] 9.6520 cm Material Composite Mounting Cord Mounted NEMA Rating Non-NEMA Number Of Conductors 4-Wire Grounding Number Of Poles 3 Returnable Y Size 3.30 in x 2.10 in x 2.40 in Standard UL498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA Certified Sub Brand 50A Twist-Lock Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Screw Type Receptacle UNSPSC 39121421 UPC 11 78358532075 UPC 12 783585320755 Width 3.60 in Width [Metric] 9.1440 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 50 A Color Black Number of Wires 4 Voltage Rating 3 Phase 250 VAC Heavy Duty Industrial Standard Product
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CS8369L |
| Conductor Range | #6 AWG |
| Connection | Screw Terminals |
| Country of Origin | CN |
| Currency | USD |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.30 in |
| Height [Metric] | 5.8420 cm |
| Insulation | Insulated Body |
| Length | 3.80 in |
| Length [Metric] | 9.6520 cm |
| Material | Composite |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Number Of Conductors | 4-Wire Grounding |
| Number Of Poles | 3 |
| Returnable | Y |
| Size | 3.30 in x 2.10 in x 2.40 in |
| Standard | UL498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA Certified |
| Sub Brand | 50A Twist-Lock |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121421 |
| UPC 11 | 78358532075 |
| UPC 12 | 783585320755 |
| Width | 3.60 in |
| Width [Metric] | 9.1440 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 50 A |
| Color | Black |
| Number of Wires | 4 |
| Voltage Rating | 3 Phase 250 VAC |
| Heavy Duty Industrial |
| Standard Product |
