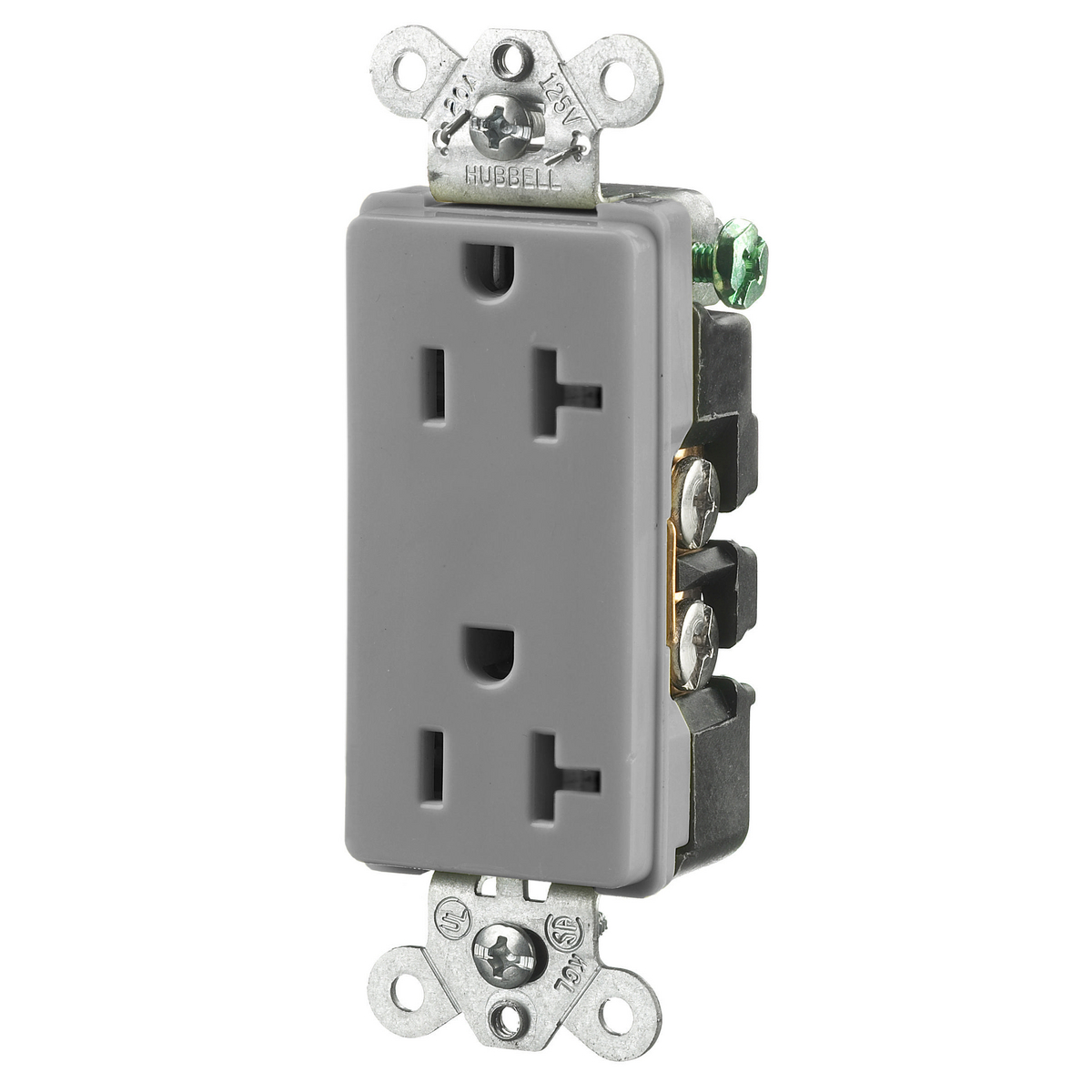

Hubbell Wiring Device-Kellems StyleLine® HBL2162GY Duplex Self-Grounding Heavy Duty Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems StyleLine® HBL2162GY Duplex Self-Grounding Heavy Duty Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU26375
MFGR #HBL2162GY
Your Cost: $20.27/ea
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Duplex Self-Grounding Heavy Duty Standard Traditional, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Composite/Thermoplastic, Gray, 3.28 in H x 1.36 in W x 1.03 in D
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Duplex Self-Grounding Heavy Duty Standard Traditional, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Composite/Thermoplastic, Gray, 3.28 in H x 1.36 in W x 1.03 in D
Application Heavy Duty Style Line Decorator Duplex ARRA Compliant C Buy American Compliant C Catalog Number HBL2162GY Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Length 4.20 in Length [Metric] 10.6680 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.36 in x 1.03 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA, Buy American Act, RoHS Compliant, NEMA WD1, WD5, UL 498, 94-V2, 94-V0 Sub Brand Straight Blade Devices Type Standard Duplex UNSPSC 39121406 UPC 11 78358506046 UPC 12 783585060460 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Heavy Duty Style Line Decorator Duplex Standard, Self Grounding Triple wipe contacts Slender/compact design Triple wipe contacts Nylon face and RTB base Brass contacts, mounting strap and terminal screws, plated brass wire clamp, stainless steel automatic self-grounding clip, steel-zinc plated mounting screws Certified for current interrupting at full rated current Withstands 2000 VAC minimum dielectric voltage 12 to 10 AWG stranded or solid copper wire only Terminals identified in accordance with UL 498 and CSA
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Style Line Decorator Duplex |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2162GY |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA, Buy American Act, RoHS Compliant, NEMA WD1, WD5, UL 498, 94-V2, 94-V0 |
| Sub Brand | Straight Blade Devices |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358506046 |
| UPC 12 | 783585060460 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Heavy Duty Style Line Decorator Duplex |
| Standard, Self Grounding |
| Triple wipe contacts |
| Slender/compact design |
| Triple wipe contacts |
| Nylon face and RTB base |
| Brass contacts, mounting strap and terminal screws, plated brass wire clamp, stainless steel automatic self-grounding clip, steel-zinc plated mounting screws |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 10 AWG stranded or solid copper wire only |
| Terminals identified in accordance with UL 498 and CSA |
