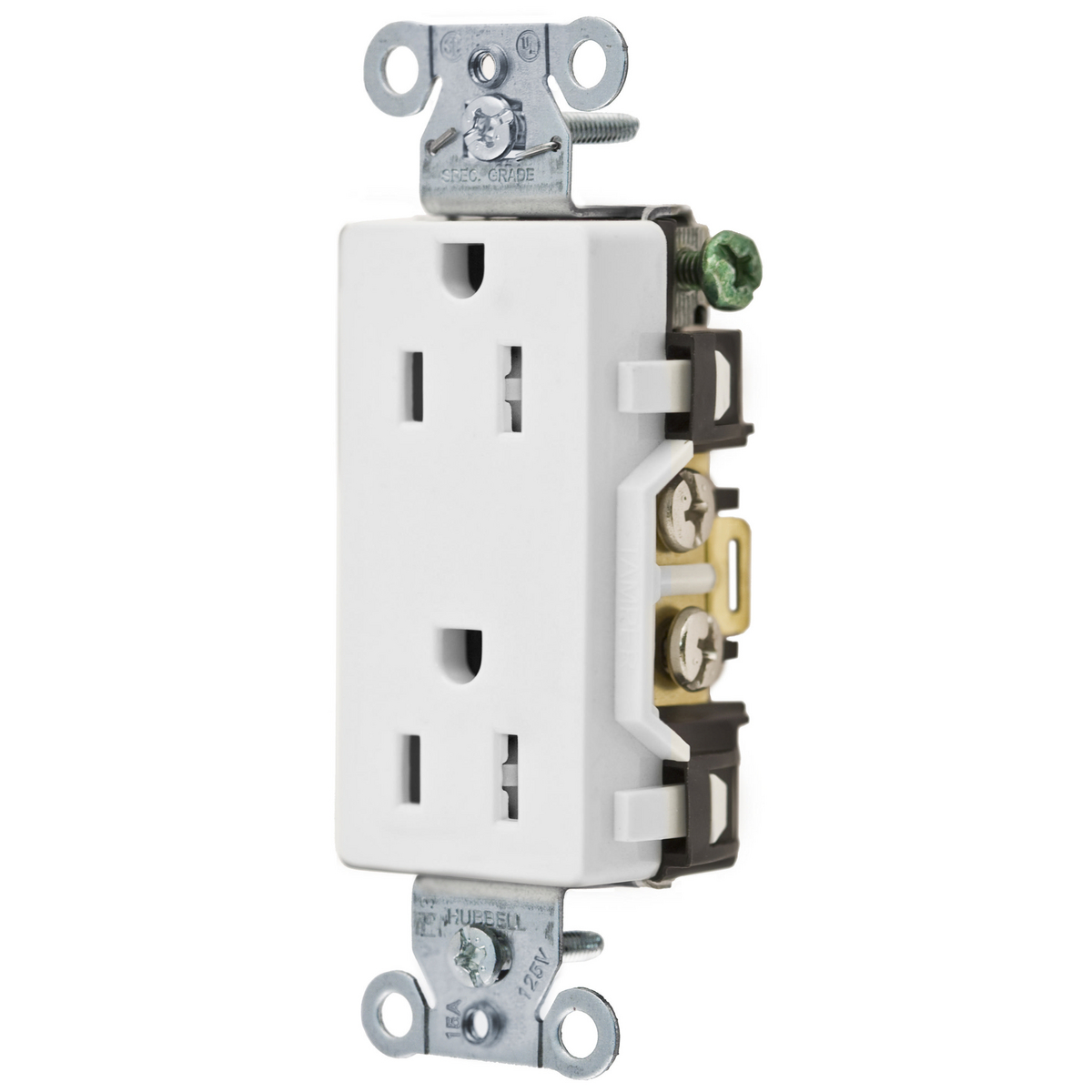

Hubbell Wiring Device-Kellems StyleLine® DR15WHITR Decorator Duplex Tamper Resistant Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems StyleLine® DR15WHITR Decorator Duplex Tamper Resistant Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU503486
MFGR #DR15WHITR
$/ea
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Decorator Duplex Tamper Resistant Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, White, 3.28 in H x 1.32 in W x 1.07 in D
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Decorator Duplex Tamper Resistant Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, White, 3.28 in H x 1.32 in W x 1.07 in D
Application Commercial Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number DR15WHITR Connection Back and Side Wired Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.3 in W x 1.07 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Specification Gross Weight Per Pack 0.0470 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.20 in Height [Metric] 3.0480 cm Horsepower 1/2 hp Length 4.15 in Length [Metric] 10.5410 cm Material Nylon Mounting Screw Mount NEMA Rating 5-15R Number Of Poles 2 Phase 1 Returnable Y Size 1.56 in x 1.14 in x 3.28 in Standard Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42Federal Specification W-C-596NEMA WD1/WD5 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Tamper-Resistant UNSPSC 39121406 UPC 11 78358514437 UPC 12 783585144375 Wattage 1,875 W Width 1.57 in Width [Metric] 3.9878 cm Wire Size #14 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Commercial Specification Grade Tamper Resistant Aesthetic Style Line® decorator design Tamper-resistant shutter complies with national electrical code requirements Triple wipe contact Screw mounting Will accept locking fork terminal to comply with ABYC standards Smooth, high gloss finish for rich appearance Single tab break-off ears Self-grounding staple Easy access split circuit tab Wraparound galvanized steel straps Terminals identified in accordance with UL498 14 to 12 AWG copper stranded or solid conductor only terminal accommodation Ratings are a permanent part of the device Aesthetic style Line® decorator design Triple wipe contacts Tamper-resistant shutter complies with national electrical code requirements
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | DR15WHITR |
| Connection | Back and Side Wired |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.3 in W x 1.07 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Specification |
| Gross Weight Per Pack | 0.0470 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.20 in |
| Height [Metric] | 3.0480 cm |
| Horsepower | 1/2 hp |
| Length | 4.15 in |
| Length [Metric] | 10.5410 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.56 in x 1.14 in x 3.28 in |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42Federal Specification W-C-596NEMA WD1/WD5 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 78358514437 |
| UPC 12 | 783585144375 |
| Wattage | 1,875 W |
| Width | 1.57 in |
| Width [Metric] | 3.9878 cm |
| Wire Size | #14 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Specification Grade |
| Tamper Resistant |
| Aesthetic Style Line® decorator design |
| Tamper-resistant shutter complies with national electrical code requirements |
| Triple wipe contact |
| Screw mounting |
| Will accept locking fork terminal to comply with ABYC standards |
| Smooth, high gloss finish for rich appearance |
| Single tab break-off ears |
| Self-grounding staple |
| Easy access split circuit tab |
| Wraparound galvanized steel straps |
| Terminals identified in accordance with UL498 |
| 14 to 12 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device |
| Aesthetic style Line® decorator design |
| Triple wipe contacts |
| Tamper-resistant shutter complies with national electrical code requirements |
