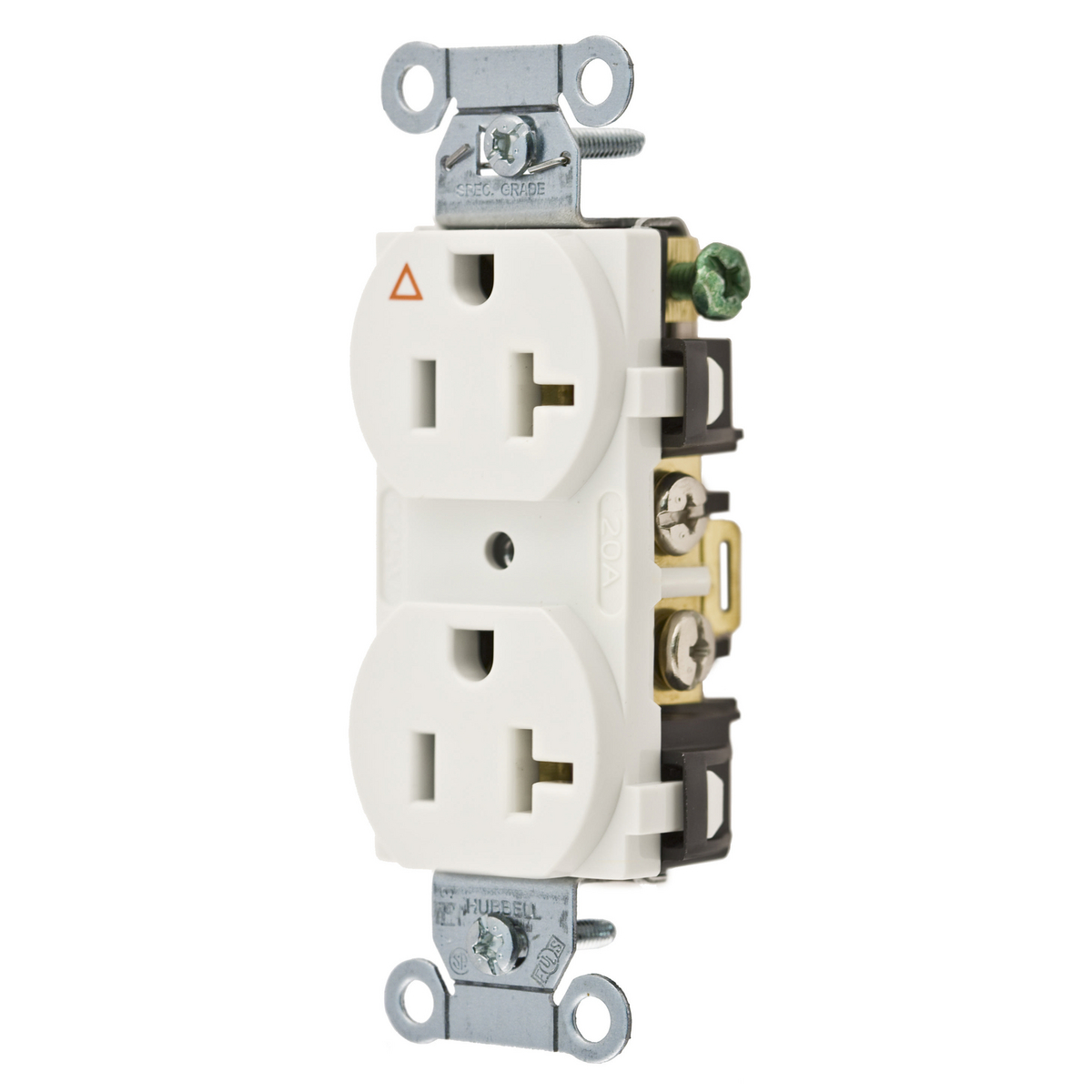

Hubbell Wiring Device-Kellems SpikeShield® IG20CRWHI Corrosion Resistant Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SpikeShield® IG20CRWHI Corrosion Resistant Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU986832
MFGR #IG20CRWHI
Your Cost: $9.53/ea
Hubbell® patented the first isolated ground receptacle. Today - when a clean, noise free ground is more important than ever - Hubbell® is still setting the standard. Hubbell® uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
Hubbell® patented the first isolated ground receptacle. Today - when a clean, noise free ground is more important than ever - Hubbell® is still setting the standard. Hubbell® uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
Application Commercial Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number IG20CRWHI Connection Back and Side Wired Screw Terminals Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.05 in W x 0.8 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Specification Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.08 in Height [Metric] 2.7432 cm Horsepower 1 hp Length 4.15 in Length [Metric] 10.5410 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 1.32 in x 1.06 in x 3.28 in Standard Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantC22.2 No. 42Federal Specification W-C-596NEMA WD1/WD5UL 498 File No. E2186 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Standard Duplex UNSPSC 39121406 UPC 11 78358514763 UPC 12 783585147635 Wattage 2,500 W Width 1.57 in Width [Metric] 3.9878 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 V Commercial Specification Grade Isolated Ground Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistance Impact resistant nylon smooth face Wraparound, locked on brass mounting strap provides additional support strength for receptacle assembly Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box IG triangle on the face of the receptacle clearly indicates isolated ground device Amperage and voltage clearly indicated Back and side wiring capability provides easy installation with stranded or solid wire Green grounding screw connected directly to the grounding contacts Insulation barrier construction is first patented by Hubbell® isolates ground contacts from the mounting strap Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion Triple wipe contacts
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IG20CRWHI |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.05 in W x 0.8 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Specification |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.08 in |
| Height [Metric] | 2.7432 cm |
| Horsepower | 1 hp |
| Length | 4.15 in |
| Length [Metric] | 10.5410 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.32 in x 1.06 in x 3.28 in |
| Standard | Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantC22.2 No. 42Federal Specification W-C-596NEMA WD1/WD5UL 498 File No. E2186 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358514763 |
| UPC 12 | 783585147635 |
| Wattage | 2,500 W |
| Width | 1.57 in |
| Width [Metric] | 3.9878 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Specification Grade |
| Isolated Ground |
| Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistance |
| Impact resistant nylon smooth face |
| Wraparound, locked on brass mounting strap provides additional support strength for receptacle assembly |
| Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box |
| IG triangle on the face of the receptacle clearly indicates isolated ground device |
| Amperage and voltage clearly indicated |
| Back and side wiring capability provides easy installation with stranded or solid wire |
| Green grounding screw connected directly to the grounding contacts |
| Insulation barrier construction is first patented by Hubbell® isolates ground contacts from the mounting strap |
| Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion |
| Triple wipe contacts |
