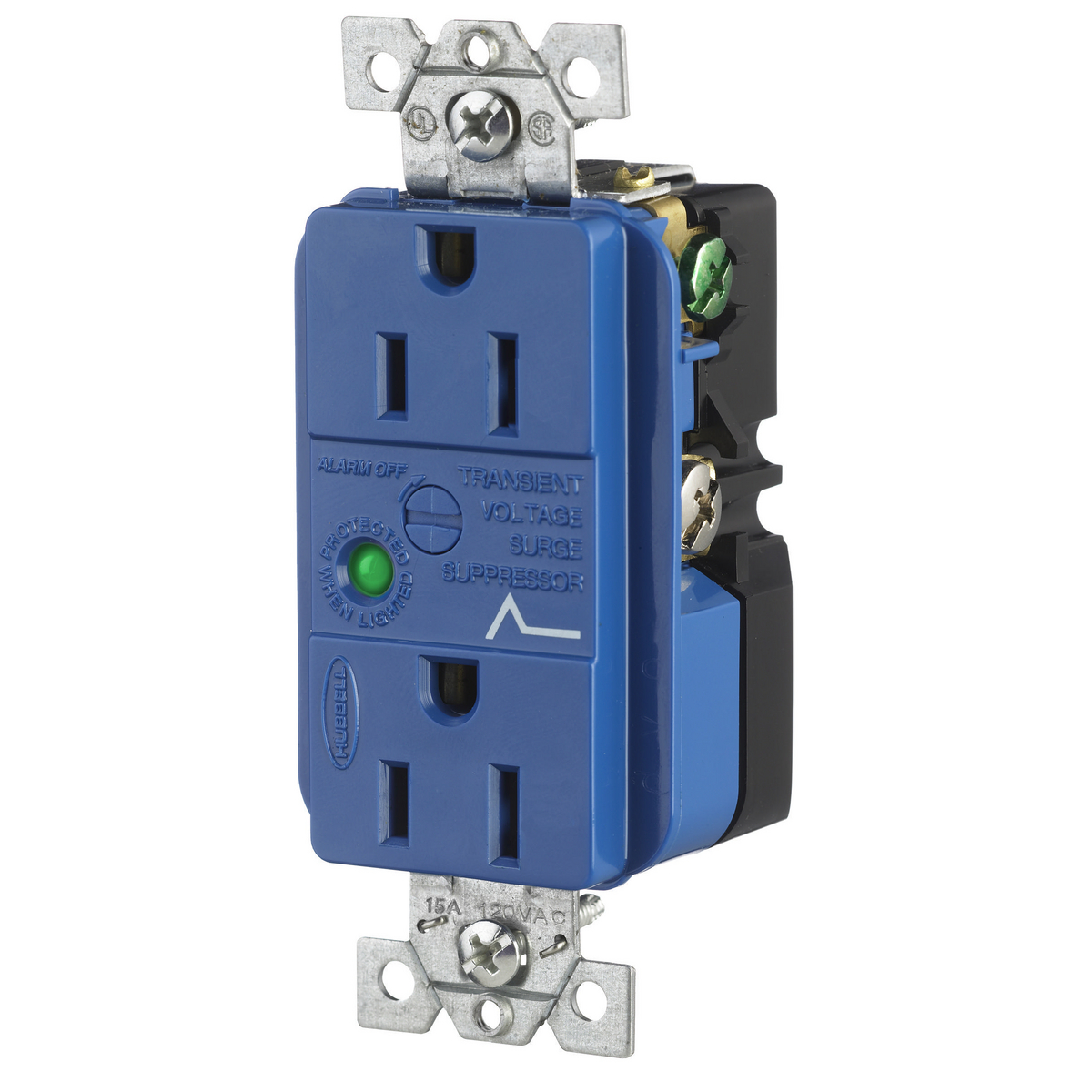

Hubbell Wiring Device-Kellems SpikeShield® HBL5262SA Decorator Duplex Grounding Straight Blade Receptacle With Light and Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SpikeShield® HBL5262SA Decorator Duplex Grounding Straight Blade Receptacle With Light and Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue
SKU59752
MFGR #HBL5262SA
Your Cost: $128.53/ea
Wiring Device-Kellems SpikeShield® Straight Blade Receptacle, Duplex Grounding, Series: Decorator, 125 VAC, 15 A, 1/2 hp, 60 Hz, 2 Poles, 3 Wires, NEMA 5-15R, Standard Grade, -40 to 75 deg C, Screw Terminal, Composite, Blue, 4.04 in H x 1.72 in W x 1.6 in D
Wiring Device-Kellems SpikeShield® Straight Blade Receptacle, Duplex Grounding, Series: Decorator, 125 VAC, 15 A, 1/2 hp, 60 Hz, 2 Poles, 3 Wires, NEMA 5-15R, Standard Grade, -40 to 75 deg C, Screw Terminal, Composite, Blue, 4.04 in H x 1.72 in W x 1.6 in D
Application Decorator Duplex with Light and Alarm ARRA Compliant C Buy American Compliant C Catalog Number HBL5262SA Class Normal and Common Mode Connection Terminal Screws Country of Origin CN Currency USD Dimensions 4.04 in H x 1.72 in W x 1.6 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Frequency Rating 60 Hz Grade Standard Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 1.90 in Height [Metric] 4.8260 cm Horsepower 1/2 hp Length 4.30 in Length [Metric] 10.9220 cm Material Composite Mounting Mounting Screws NEMA Rating NEMA 5-15R Number Of Poles 2 Operating Temperature 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) Outlet Straight Blade Phase 1 Response Time 5 Returnable Y Series Decorator Size Standard Standard CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 Standards UL 498, UL 1449, File No. E2186, UL 94-V-2, UL 94 V-0 Flammability Rating Sub Brand SpikeShield Temperature Rating -40 to 75 °C Terminal Type Screw Type Duplex Type Of Indicators LED and Audible Alarm UNSPSC 39121610 UPC 11 78358506017 UPC 12 783585060170 Width 2.20 in Width [Metric] 5.5880 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Blue Number of Wires 3 Voltage Rating 125 V Decorator Duplex with Light and Alarm Standard Product Withstands 2000 VAC dielectric voltage Automatic self-grounding staple Distinctive surge symbol provides quick identification Alert alarm sounds when surge protection is no longer functioning Audible and visual alarm Nylon top and base material 0.031 in brass power contact Tandem modified bypass contact design 0.05 zinc coated steel mounting strap 0.031 in brass clamping plate #8-32 brass terminal screw Steel (green) grounding screw Steel zinc plated mounting screw Nylon alarm muting screw Steel (green) grounding screw Steel-zinc plated mounting screws Nylon alarm muting screw
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Decorator Duplex with Light and Alarm |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5262SA |
| Class | Normal and Common Mode |
| Connection | Terminal Screws |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.04 in H x 1.72 in W x 1.6 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Frequency Rating | 60 Hz |
| Grade | Standard |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 1.90 in |
| Height [Metric] | 4.8260 cm |
| Horsepower | 1/2 hp |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Composite |
| Mounting | Mounting Screws |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Outlet | Straight Blade |
| Phase | 1 |
| Response Time | 5 |
| Returnable | Y |
| Series | Decorator |
| Size | Standard |
| Standard | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 |
| Standards | UL 498, UL 1449, File No. E2186, UL 94-V-2, UL 94 V-0 Flammability Rating |
| Sub Brand | SpikeShield |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Duplex |
| Type Of Indicators | LED and Audible Alarm |
| UNSPSC | 39121610 |
| UPC 11 | 78358506017 |
| UPC 12 | 783585060170 |
| Width | 2.20 in |
| Width [Metric] | 5.5880 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Blue |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Decorator Duplex with Light and Alarm |
| Standard Product |
| Withstands 2000 VAC dielectric voltage |
| Automatic self-grounding staple |
| Distinctive surge symbol provides quick identification |
| Alert alarm sounds when surge protection is no longer functioning |
| Audible and visual alarm |
| Nylon top and base material |
| 0.031 in brass power contact |
| Tandem modified bypass contact design |
| 0.05 zinc coated steel mounting strap |
| 0.031 in brass clamping plate |
| #8-32 brass terminal screw |
| Steel (green) grounding screw |
| Steel zinc plated mounting screw |
| Nylon alarm muting screw |
| Steel (green) grounding screw |
| Steel-zinc plated mounting screws |
| Nylon alarm muting screw |
