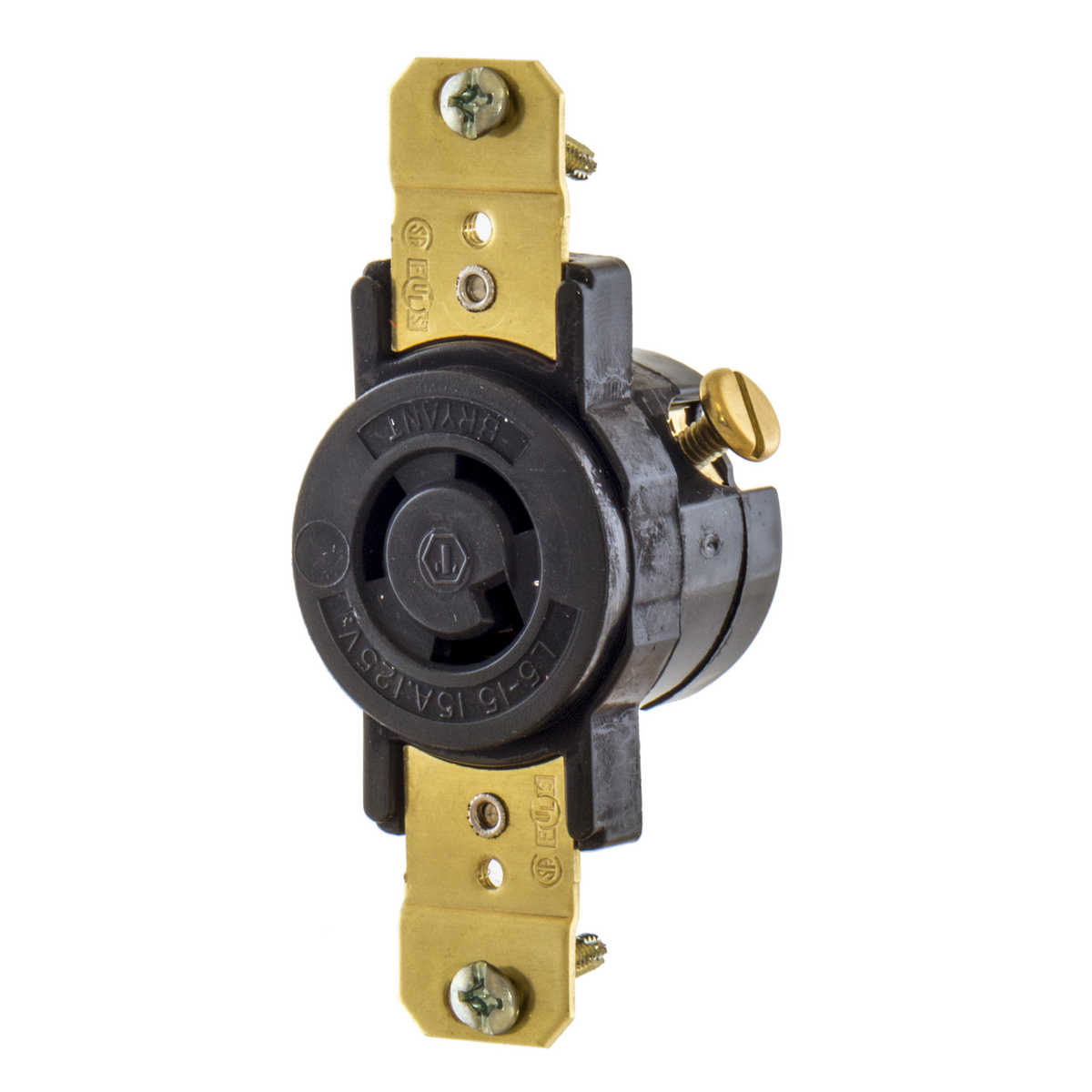

Hubbell Wiring Device-Kellems Select Spec™ Twist-Lock® L515R Heavy Duty Grounding Standard Single Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Select Spec™ Twist-Lock® L515R Heavy Duty Grounding Standard Single Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
SKU922238
MFGR #L515R
Your Cost: $34.31/ea
Hubbell-Pro locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.
Hubbell-Pro locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.
Application Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number L515R Connection Screw Terminals Country of Origin US Currency USD Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.30 in Height [Metric] 3.3020 cm Length 3.50 in Length [Metric] 8.8900 cm Material Thermoplastic Mounting Screw Mount NEMA Rating L5-15R Number Of Poles 2 Phase 1 Returnable Y Size Standard Sized Product Standard NEMA WD1 and WD5, UL 498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA CertifiedUL94 V-2 Flammability RatingNEMA WD1/WD5 Sub Brand Twist-Lock Devices Temperature Rating -40 to 85 °C Terminal Type Screw Type Single Receptacle UNSPSC 39121406 UPC 11 78358583569 UPC 12 783585835693 Wattage 1,875 W Width 1.60 in Width [Metric] 4.0640 cm Wire Size #14 AWG to #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Black Number of Wires 3 Voltage Rating 125 VAC Heavy Duty Standard Product Capable of withstanding a fault level of 1000 A circuit, per current interrupting Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per Minimum 4.8 times rated current for 100 cycles overload 14 to 8 AWG solid or stranded copper wire terminal accommodation Ratings and NEMA identification are permanently marked on device Withstands 3000 VAC per UL498 dielectric voltage 600 VAC or 250 VDC maximum working voltage Nylon construction, visible NEMA ratings, nickel-plated receptacle strap High-impact resistant chemical-resistant nylon face High performance copper alloy contacts/blade materia
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | L515R |
| Connection | Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.30 in |
| Height [Metric] | 3.3020 cm |
| Length | 3.50 in |
| Length [Metric] | 8.8900 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | L5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | Standard Sized Product |
| Standard | NEMA WD1 and WD5, UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA CertifiedUL94 V-2 Flammability RatingNEMA WD1/WD5 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 85 °C |
| Terminal Type | Screw |
| Type | Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358583569 |
| UPC 12 | 783585835693 |
| Wattage | 1,875 W |
| Width | 1.60 in |
| Width [Metric] | 4.0640 cm |
| Wire Size | #14 AWG to #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Heavy Duty |
| Standard Product |
| Capable of withstanding a fault level of 1000 A circuit, per current interrupting |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per |
| Minimum 4.8 times rated current for 100 cycles overload |
| 14 to 8 AWG solid or stranded copper wire terminal accommodation |
| Ratings and NEMA identification are permanently marked on device |
| Withstands 3000 VAC per UL498 dielectric voltage |
| 600 VAC or 250 VDC maximum working voltage |
| Nylon construction, visible NEMA ratings, nickel-plated receptacle strap |
| High-impact resistant chemical-resistant nylon face |
| High performance copper alloy contacts/blade materia |
