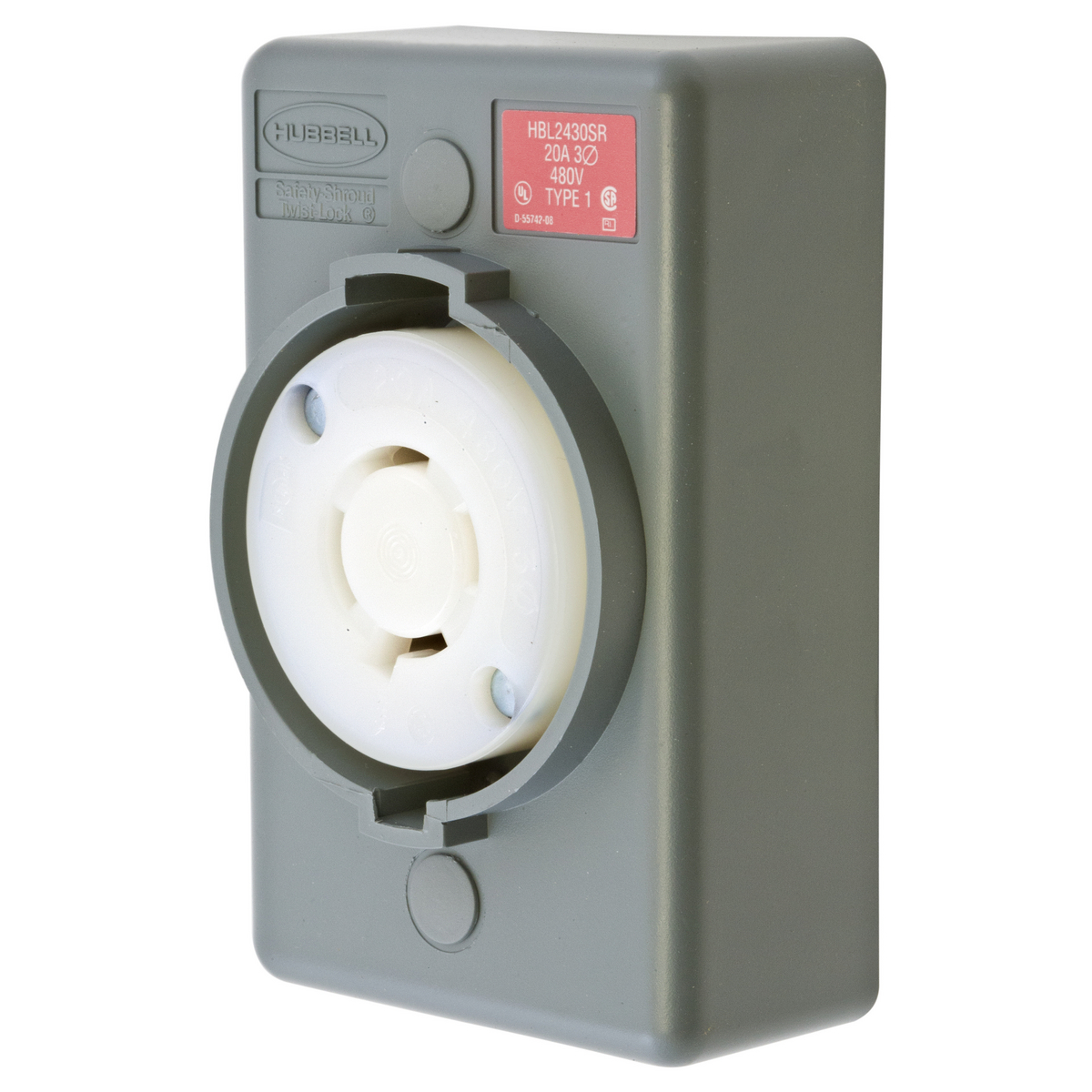

Hubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2430SR 1-Gang Heavy Duty Grounding Standard Single Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2430SR 1-Gang Heavy Duty Grounding Standard Single Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
SKU272463
MFGR #HBL2430SR
Your Cost: $58.42/ea
Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 1-Gang Heavy Duty Grounding Standard Single, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back Wired Screw Terminal, Composite/Thermoplastic, Gray/White, 4.56 in L x 1.71 in W x 2.84 in H
Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 1-Gang Heavy Duty Grounding Standard Single, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back Wired Screw Terminal, Composite/Thermoplastic, Gray/White, 4.56 in L x 1.71 in W x 2.84 in H
Application Heavy Duty Industrial Shrouded ARRA Compliant C Buy American Compliant C Catalog Number HBL2430SR Connection Screw Terminal Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 2.84 in W x 1.71 in D x 4.56 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.90 in Height [Metric] 7.3660 cm Horsepower 5 hp Length 4.80 in Length [Metric] 12.1920 cm Material Thermoplastic Mounting Screw Mount NEMA Rating L16-20R Number Of Poles 3 Phase 3 Returnable N Size 4.56 in x 2.84 in x 1.71 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards CSA C22.2 No. 42, Federal Specification W-C-596, UL 498 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Surface Mount Receptacle UNSPSC 39121406 UPC 11 78358523458 UPC 12 783585234588 Wattage 9,600 W Width 3.20 in Width [Metric] 8.1280 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray/White Number of Wires 4 Voltage Rating 3-Phase Delta 480 VAC Heavy Duty Industrial Shrouded Surface Mount 2000 VAC minimum dielectric voltage withstand Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification 4-wire grounding HB or better per UL 94 or CSA 22.2 no. 0.6 flammability 20 A 12 AWG terminal accommodation NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw Zinc plated steel mounting screws 0.031 in brass ground contact Natural white nylon body contact carrier material Steel rivet material Steel, nickel plated 0.08 in curved, scalloped terminal clamp material Gray Valox® 357U housing and flange material Galvanized steel mounting plate material 3-phase Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected Catalog number and color coded voltage rating are easily visible even when in use Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial Shrouded |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2430SR |
| Connection | Screw Terminal |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 2.84 in W x 1.71 in D x 4.56 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Horsepower | 5 hp |
| Length | 4.80 in |
| Length [Metric] | 12.1920 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | L16-20R |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | N |
| Size | 4.56 in x 2.84 in x 1.71 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | CSA C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Surface Mount Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523458 |
| UPC 12 | 783585234588 |
| Wattage | 9,600 W |
| Width | 3.20 in |
| Width [Metric] | 8.1280 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray/White |
| Number of Wires | 4 |
| Voltage Rating | 3-Phase Delta 480 VAC |
| Heavy Duty Industrial Shrouded |
| Surface Mount |
| 2000 VAC minimum dielectric voltage withstand |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| 4-wire grounding |
| HB or better per UL 94 or CSA 22.2 no. 0.6 flammability |
| 20 A 12 AWG terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Zinc plated steel mounting screws |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| Steel rivet material |
| Steel, nickel plated 0.08 in curved, scalloped terminal clamp material |
| Gray Valox® 357U housing and flange material |
| Galvanized steel mounting plate material |
| 3-phase |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are easily visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
