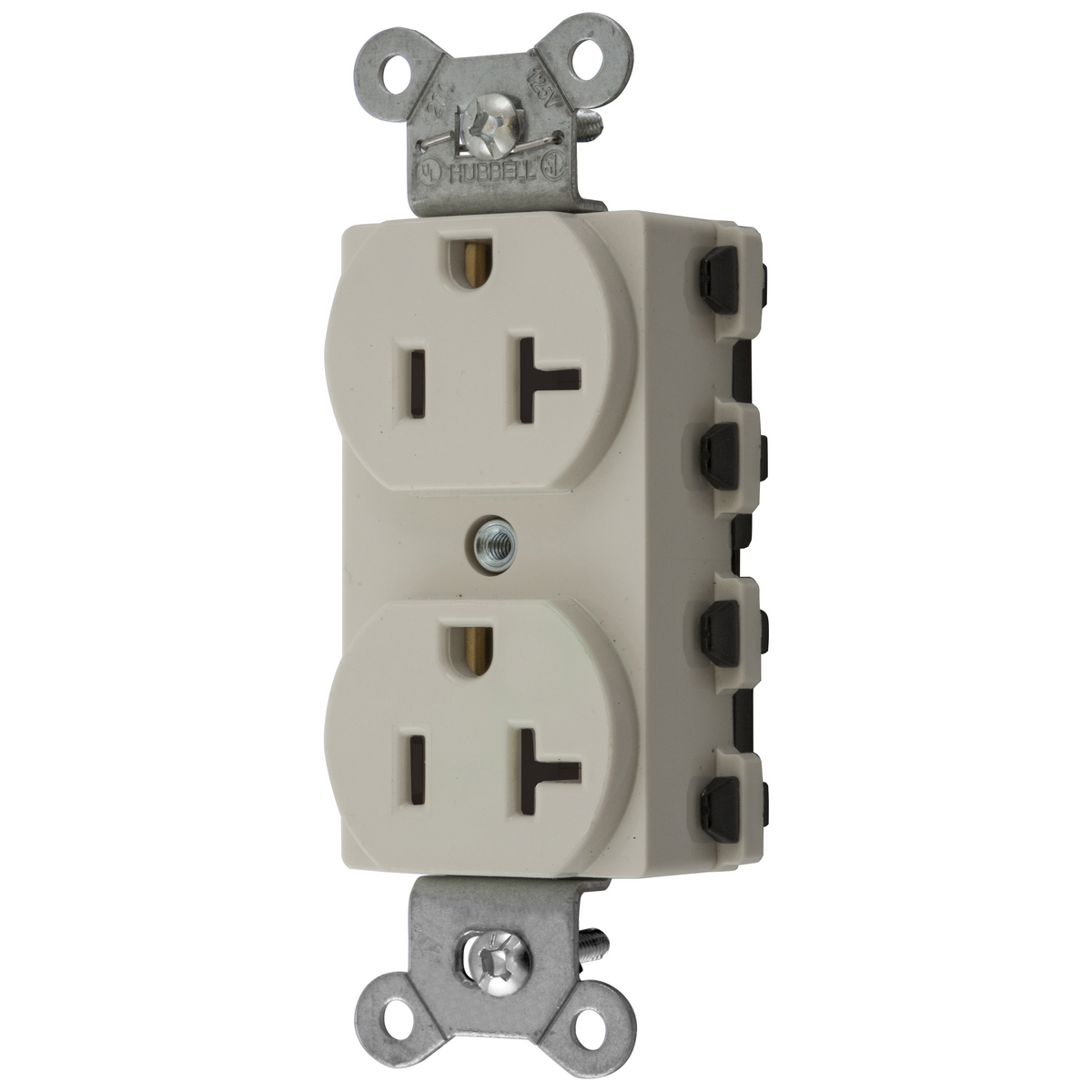

Hubbell Wiring Device-Kellems SNAPConnect® SNAP5362LANA Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SNAPConnect® SNAP5362LANA Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
SKU775376
MFGR #SNAP5362LANA
Your Cost: $14.81/ea
List: SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number SNAP5362LANA Connection Connectorized Country of Origin MX Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.56 in W x 0.86 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Grade Specification Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.66 in Height [Metric] 4.2164 cm Horsepower 1 hp Length 4.16 in Length [Metric] 10.5664 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable N Size 3.28 in x 1.64 in x 1.1 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42Federal Specification WC596NEMA WD1/WD5UL 498 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Lead Wire Type Standard Duplex UNSPSC 39121406 UPC 11 78358554055 UPC 12 783585540559 Wattage 2,500 W Width 1.91 in Width [Metric] 4.8514 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Light Almond Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Specification Grade Quick Connect- SNAPConnect, USA Product Modular wiring system eliminates screw terminals Speeds installation and trim out Clear polycarbonate terminal housing to inspect contacts Abuse resistant nylon for extra heavy use applications Stainless steel auto ground Audible SNAP, indicates solid connection Fully insulated design Reduces installation time
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SNAP5362LANA |
| Connection | Connectorized |
| Country of Origin | MX |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.56 in W x 0.86 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Grade | Specification |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.66 in |
| Height [Metric] | 4.2164 cm |
| Horsepower | 1 hp |
| Length | 4.16 in |
| Length [Metric] | 10.5664 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 3.28 in x 1.64 in x 1.1 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42Federal Specification WC596NEMA WD1/WD5UL 498 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Lead Wire |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358554055 |
| UPC 12 | 783585540559 |
| Wattage | 2,500 W |
| Width | 1.91 in |
| Width [Metric] | 4.8514 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Light Almond |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Specification Grade |
| Quick Connect- SNAPConnect, USA Product |
| Modular wiring system eliminates screw terminals |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contacts |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground |
| Audible SNAP, indicates solid connection |
| Fully insulated design |
| Reduces installation time |
