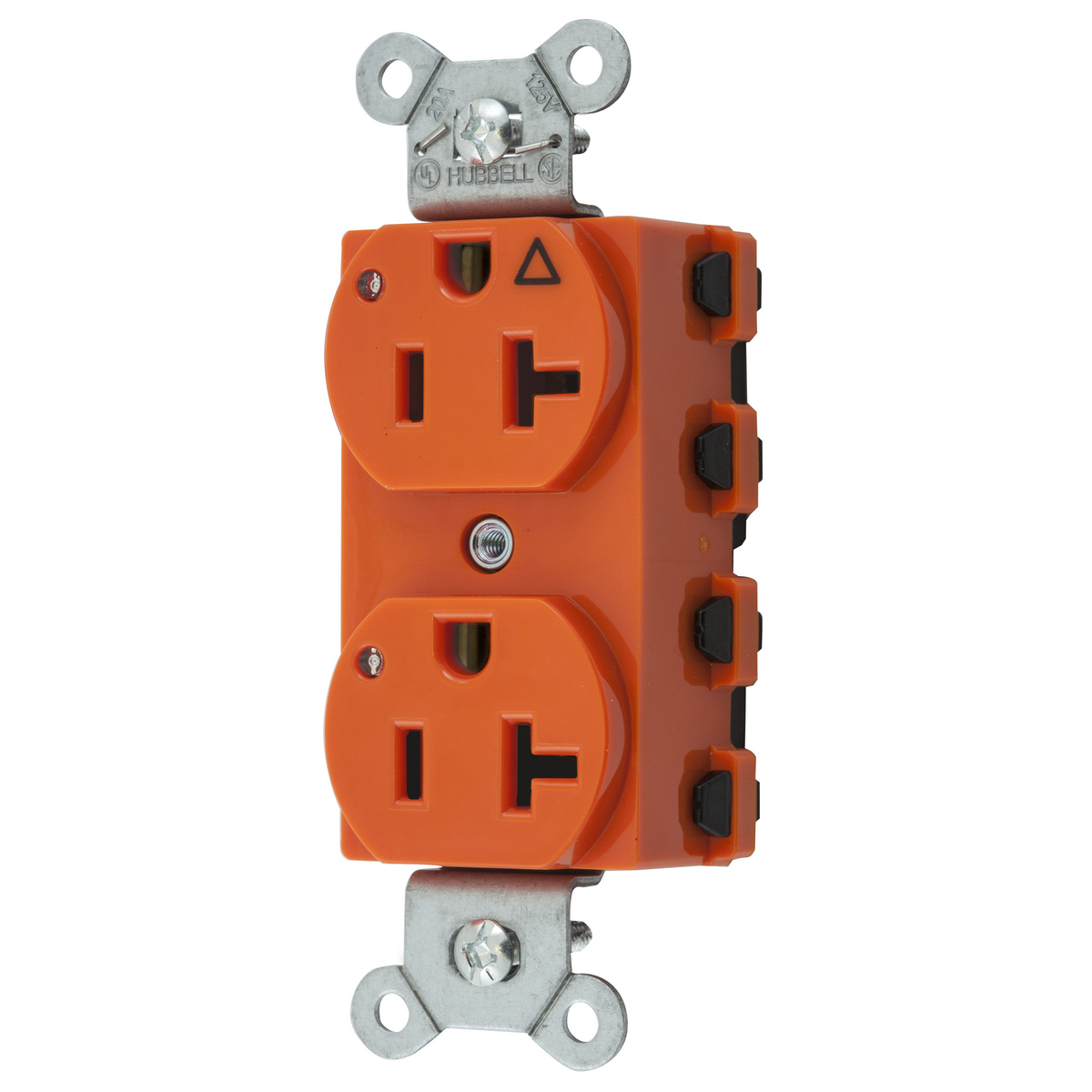

Hubbell Wiring Device-Kellems SNAPConnect® SNAP5362IGL Duplex Extra Heavy Duty Isolated Ground Standard Traditional Straight Blade Receptacle With Power Indicating LED, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SNAPConnect® SNAP5362IGL Duplex Extra Heavy Duty Isolated Ground Standard Traditional Straight Blade Receptacle With Power Indicating LED, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
SKU764114
MFGR #SNAP5362IGL
Your Cost: $28.69/ea
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number SNAP5362IGL Connection Connectorized Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.64 in W x 0.86 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Grade Specification Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.40 in Length [Metric] 11.1760 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable N Size 3.28 in x 1.64 in x 1.1 in Standard CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 Standards ARRA CompliantBuy American Act CompliantUL 498CSA C22.2 No. 42Federal Specification WC596 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Lead Wire Type Standard Duplex UNSPSC 39121406 UPC 11 78358519365 UPC 12 783585193656 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Orange Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Specification Grade Quick Connect- SNAPConnect, Isolated Ground, LED Indicator Modular wiring system eliminates screw terminal Speeds installation and trim out Clear polycarbonate terminal housing to inspect contact Abuse resistant nylon for extra heavy use applications Stainless steel auto ground clip 1-Piece nickel plated brass integral ground strap Requires minimal box space Self-grounding clip which makes installation easy Screw mounted Withstands 2000 VAC minimum dielectric voltage 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SNAP5362IGL |
| Connection | Connectorized |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.64 in W x 0.86 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Grade | Specification |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.40 in |
| Length [Metric] | 11.1760 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 3.28 in x 1.64 in x 1.1 in |
| Standard | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 |
| Standards | ARRA CompliantBuy American Act CompliantUL 498CSA C22.2 No. 42Federal Specification WC596 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Lead Wire |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358519365 |
| UPC 12 | 783585193656 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Orange |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Specification Grade |
| Quick Connect- SNAPConnect, Isolated Ground, LED Indicator |
| Modular wiring system eliminates screw terminal |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contact |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground clip |
| 1-Piece nickel plated brass integral ground strap |
| Requires minimal box space |
| Self-grounding clip which makes installation easy |
| Screw mounted |
| Withstands 2000 VAC minimum dielectric voltage |
| 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating |
