Hubbell Wiring Device-Kellems

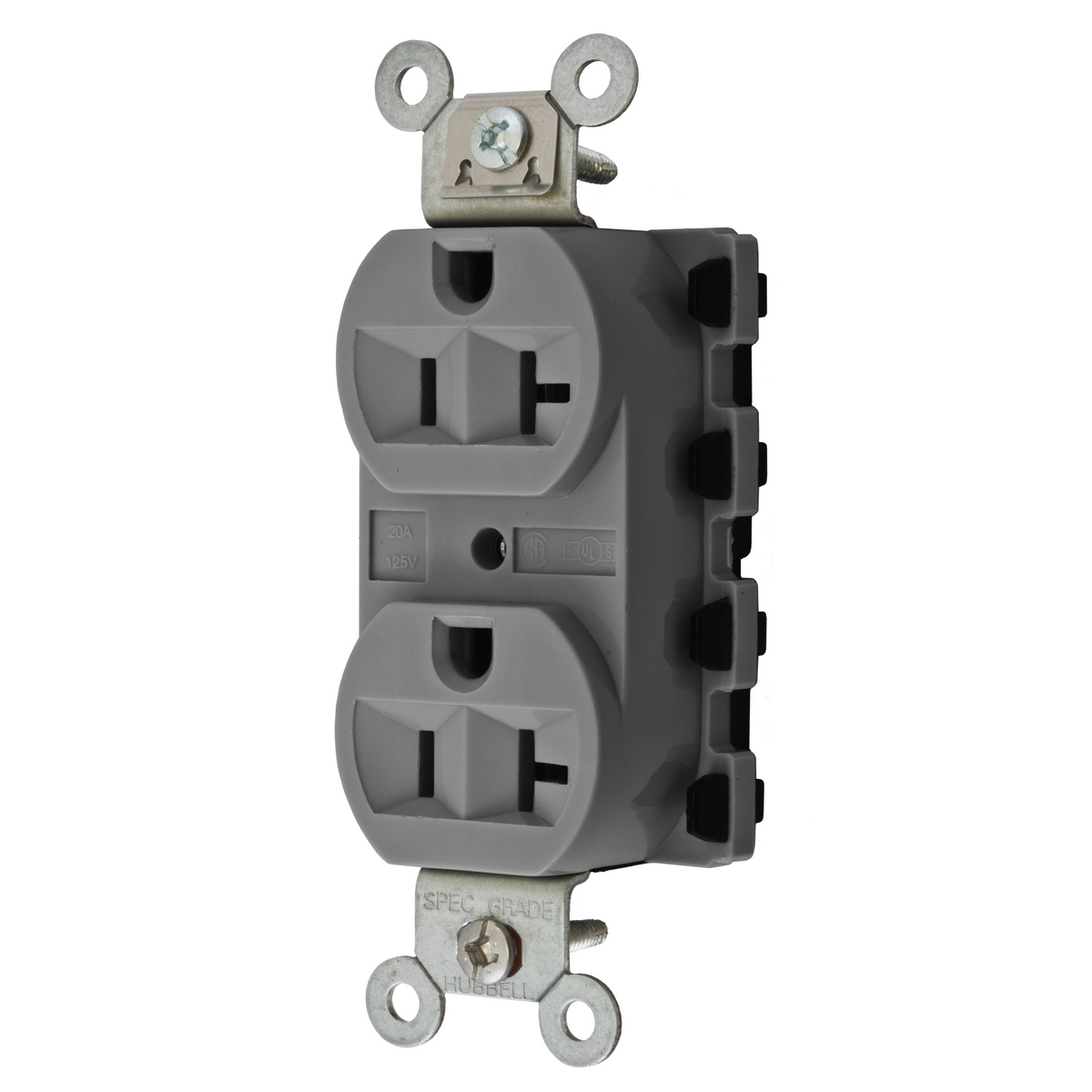

Hubbell Wiring Device-Kellems SNAPConnect® SNAP5362GYA Duplex Extra Heavy Duty Traditional Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems SNAPConnect® SNAP5362GYA Duplex Extra Heavy Duty Traditional Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU752700
MFGR #SNAP5362GYA
Your Cost: $14.81/ea
List: SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number SNAP5362GYA Connection Connectorized Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.56 in W x 0.86 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Specification Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.66 in Height [Metric] 4.2164 cm Horsepower 1 hp Length 4.28 in Length [Metric] 10.8712 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.56 in x 1.1 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42Federal Specification WC596 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Lead Wire Type Standard Duplex UNSPSC 39121406 UPC 11 78358524774 UPC 12 783585247748 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Specification Grade Quick Connect- SNAPConnect Modular wiring system eliminates screw terminal Speeds installation and trim out Clear polycarbonate terminal housing to inspect contact Abuse resistant nylon for extra heavy use applications Stainless steel auto ground clip Audible SNAP, indicates solid connection Fully insulated design Reduces installation time Screw mounted Receptacle certified for current interrupting at full rated current Withstands 2000 VAC minimum dielectric voltage 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SNAP5362GYA |
| Connection | Connectorized |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.56 in W x 0.86 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Specification |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.66 in |
| Height [Metric] | 4.2164 cm |
| Horsepower | 1 hp |
| Length | 4.28 in |
| Length [Metric] | 10.8712 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.56 in x 1.1 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42Federal Specification WC596 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Lead Wire |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358524774 |
| UPC 12 | 783585247748 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Specification Grade |
| Quick Connect- SNAPConnect |
| Modular wiring system eliminates screw terminal |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contact |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground clip |
| Audible SNAP, indicates solid connection |
| Fully insulated design |
| Reduces installation time |
| Screw mounted |
| Receptacle certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating |
