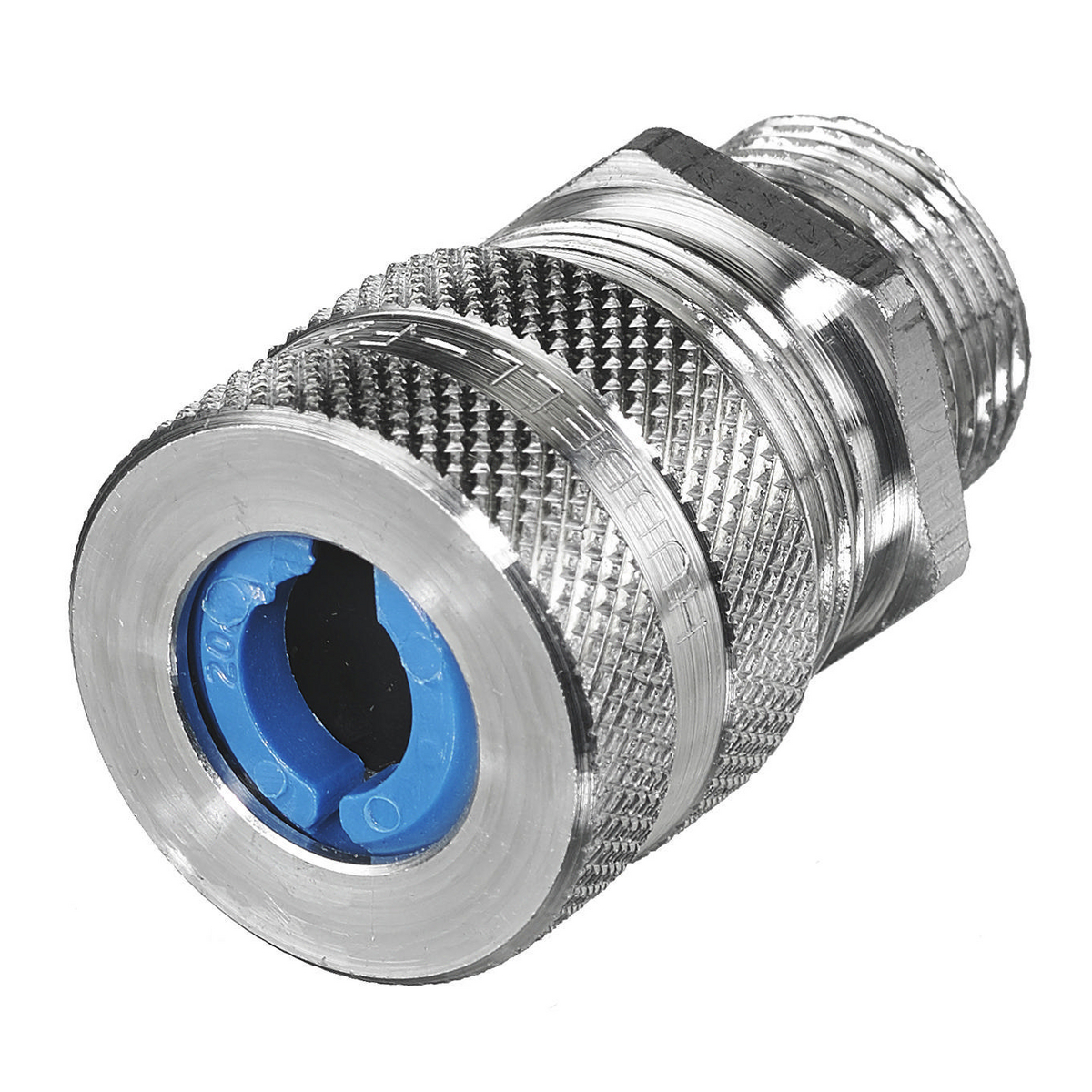

Hubbell Wiring Device-Kellems SHCM201022 Flexible Cord Connector, M20 Trade, 0.25 to 0.38 in Cable Openings, Aluminum, Machined
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SHCM201022 Flexible Cord Connector, M20 Trade, 0.25 to 0.38 in Cable Openings, Aluminum, Machined
SKU946684
MFGR #SHCM201022
Your Cost: $11.15/ea
Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel.
Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel.
Application Straight Female- Form 2 ARRA Compliant C Buy American Compliant C Catalog Number SHCM201022 Color Silver Conductor Range 0.25-0.38 in (6.3-9.7 mm) Connection Type MNPT Straight Country of Origin US Currency USD Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7616995190 Height 1.14 in Height [Metric] 2.8956 cm Length 6.00 in Length [Metric] 15.2400 cm Mounting Locknut or Tapped Opening NEMA Rating NEMA Type 4, 4X, 12 and 13 Number Of Conductors Single Returnable Y Size M20 Standard UL Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedNEC Class I Div 2, Class II Div 1, 2, Class Ill Div 1, 2 Hazardous Locations Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F Type Metric UNSPSC 39121431 UPC 11 78358577465 UPC 12 783585774657 Width 4.00 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.25 to 0.38 in Dia Finish Machined Material Aluminum Trade Size M20 Straight Female- Form 2 Standard Product Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body Connector body is a 1-piece design with machined threads Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification White color code F2 form size NEMA 4/4X/12/13 enclosure
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Female- Form 2 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SHCM201022 |
| Color | Silver |
| Conductor Range | 0.25-0.38 in (6.3-9.7 mm) |
| Connection Type | MNPT Straight |
| Country of Origin | US |
| Currency | USD |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7616995190 |
| Height | 1.14 in |
| Height [Metric] | 2.8956 cm |
| Length | 6.00 in |
| Length [Metric] | 15.2400 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | M20 |
| Standard | UL Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedNEC Class I Div 2, Class II Div 1, 2, Class Ill Div 1, 2 Hazardous Locations |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F |
| Type | Metric |
| UNSPSC | 39121431 |
| UPC 11 | 78358577465 |
| UPC 12 | 783585774657 |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.25 to 0.38 in Dia |
| Finish | Machined |
| Material | Aluminum |
| Trade Size | M20 |
| Straight Female- Form 2 |
| Standard Product |
| Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body |
| Connector body is a 1-piece design with machined threads |
| Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection |
| Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification |
| White color code |
| F2 form size |
| NEMA 4/4X/12/13 enclosure |
