Hubbell Wiring Device-Kellems

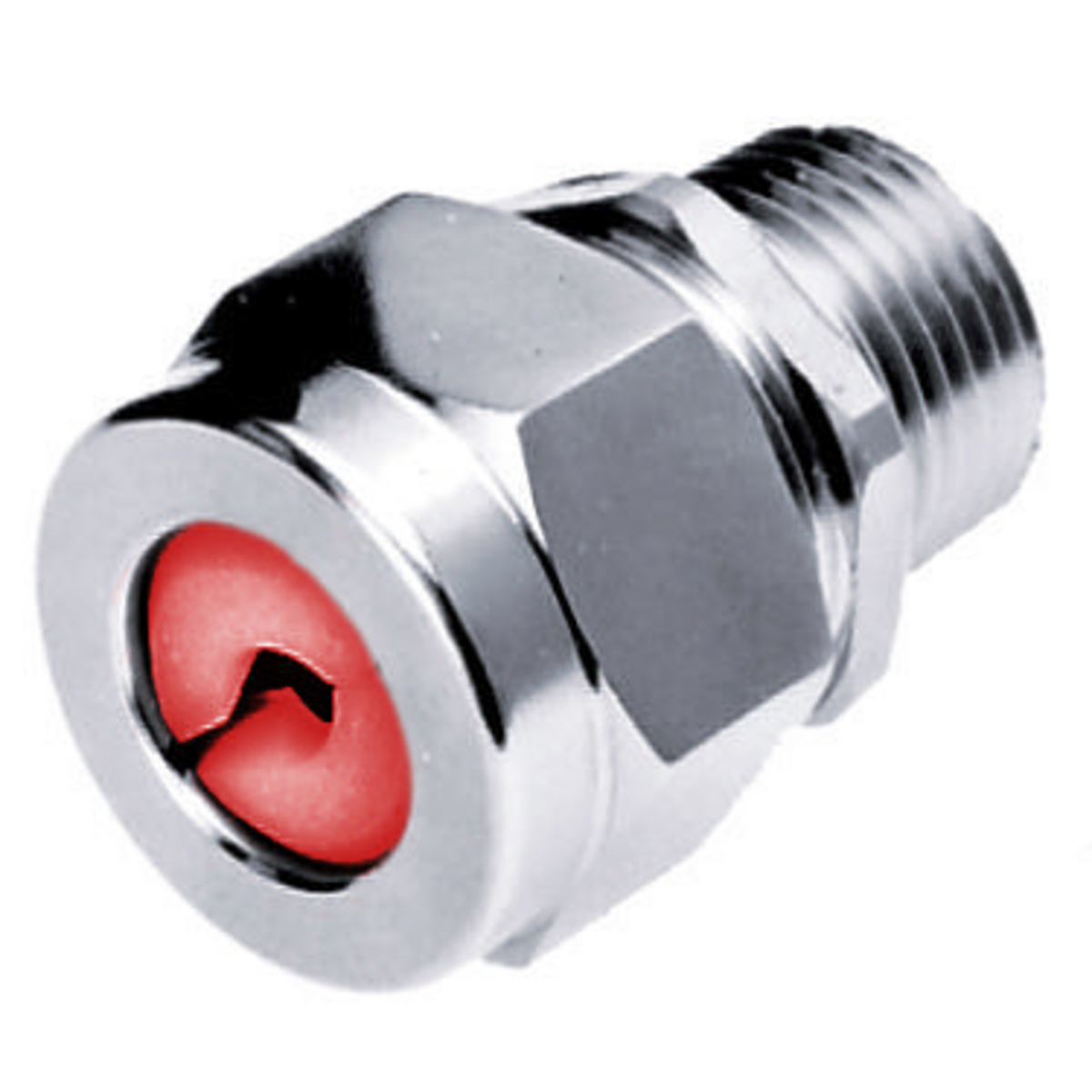

Hubbell Wiring Device-Kellems SHC1021ZP Straight Male Liquidtight Conduit Connector With Locknut, 1/2 in Trade, Steel
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems SHC1021ZP Straight Male Liquidtight Conduit Connector With Locknut, 1/2 in Trade, Steel
SKU457124
MFGR #SHC1021ZP
Your Cost: $15.54/ea
Wiring Device-Kellems Liquidtight Conduit Connector, Straight Male, 1/2 in Trade, Steel, Red, Zinc Plated, 0.19 to 0.25 in Dia
Wiring Device-Kellems Liquidtight Conduit Connector, Straight Male, 1/2 in Trade, Steel, Red, Zinc Plated, 0.19 to 0.25 in Dia
Application Straight Male- Form 2 ARRA Compliant C Buy American Compliant C Catalog Number SHC1021ZP Color Metallic Conductor Range 0.19-0.25 in (4.7- 6.3 mm) Country of Origin CN Currency USD Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height 1.11 in Height [Metric] 2.8194 cm Length 1.86 in Length [Metric] 4.7244 cm Mounting Locknut or Tapped Opening NEMA Rating NEMA Type 4, 4X, 12 and 13 Number Of Conductors Single Returnable Y Size 1/2" NPT in Standard UL Listed Standards UL 514BCSA Certified Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) Type Straight Male UNSPSC 39121431 UPC 11 78358521021 UPC 12 783585210216 Width 1.11 in Width [Metric] 2.8194 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.19 to 0.25 in Finish Machined Material Steel, Zinc Plated Trade Size 1/2 in Straight Male- Form 2 Standard Product Machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads Made of machined steel NEMA 4/4X/12/13 rated enclosure Zinc plated cord connector provides the strength and corrosion resistance For larger size cord, NPT hub sizes 1 to 2 in, Hubbell® utilizes malleable iron connectors which provide excellent holding and liquidtight performance Connector body is a one-piece design with machined threads, a tapered interior seats the bushing evenly for a liquidtight seal IP66 ingress protection Hubbell® cord connectors are suitable for use in hazardous locations IP66 ingress protection Hubbell® cord connectors are suitable for use in hazardous locations per class I Div. 2, class II Div. 1 & 2, class III Div. 1 & 2 in accordance with the NEC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male- Form 2 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SHC1021ZP |
| Color | Metallic |
| Conductor Range | 0.19-0.25 in (4.7- 6.3 mm) |
| Country of Origin | CN |
| Currency | USD |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height | 1.11 in |
| Height [Metric] | 2.8194 cm |
| Length | 1.86 in |
| Length [Metric] | 4.7244 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 1/2" NPT in |
| Standard | UL Listed |
| Standards | UL 514BCSA Certified |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Type | Straight Male |
| UNSPSC | 39121431 |
| UPC 11 | 78358521021 |
| UPC 12 | 783585210216 |
| Width | 1.11 in |
| Width [Metric] | 2.8194 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.19 to 0.25 in |
| Finish | Machined |
| Material | Steel, Zinc Plated |
| Trade Size | 1/2 in |
| Straight Male- Form 2 |
| Standard Product |
| Machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads |
| Made of machined steel |
| NEMA 4/4X/12/13 rated enclosure |
| Zinc plated cord connector provides the strength and corrosion resistance |
| For larger size cord, NPT hub sizes 1 to 2 in, Hubbell® utilizes malleable iron connectors which provide excellent holding and liquidtight performance |
| Connector body is a one-piece design with machined threads, a tapered interior seats the bushing evenly for a liquidtight seal |
| IP66 ingress protection |
| Hubbell® cord connectors are suitable for use in hazardous locations |
| IP66 ingress protection |
| Hubbell® cord connectors are suitable for use in hazardous locations per class I Div. 2, class II Div. 1 & 2, class III Div. 1 & 2 in accordance with the NEC |
