Hubbell Wiring Device-Kellems

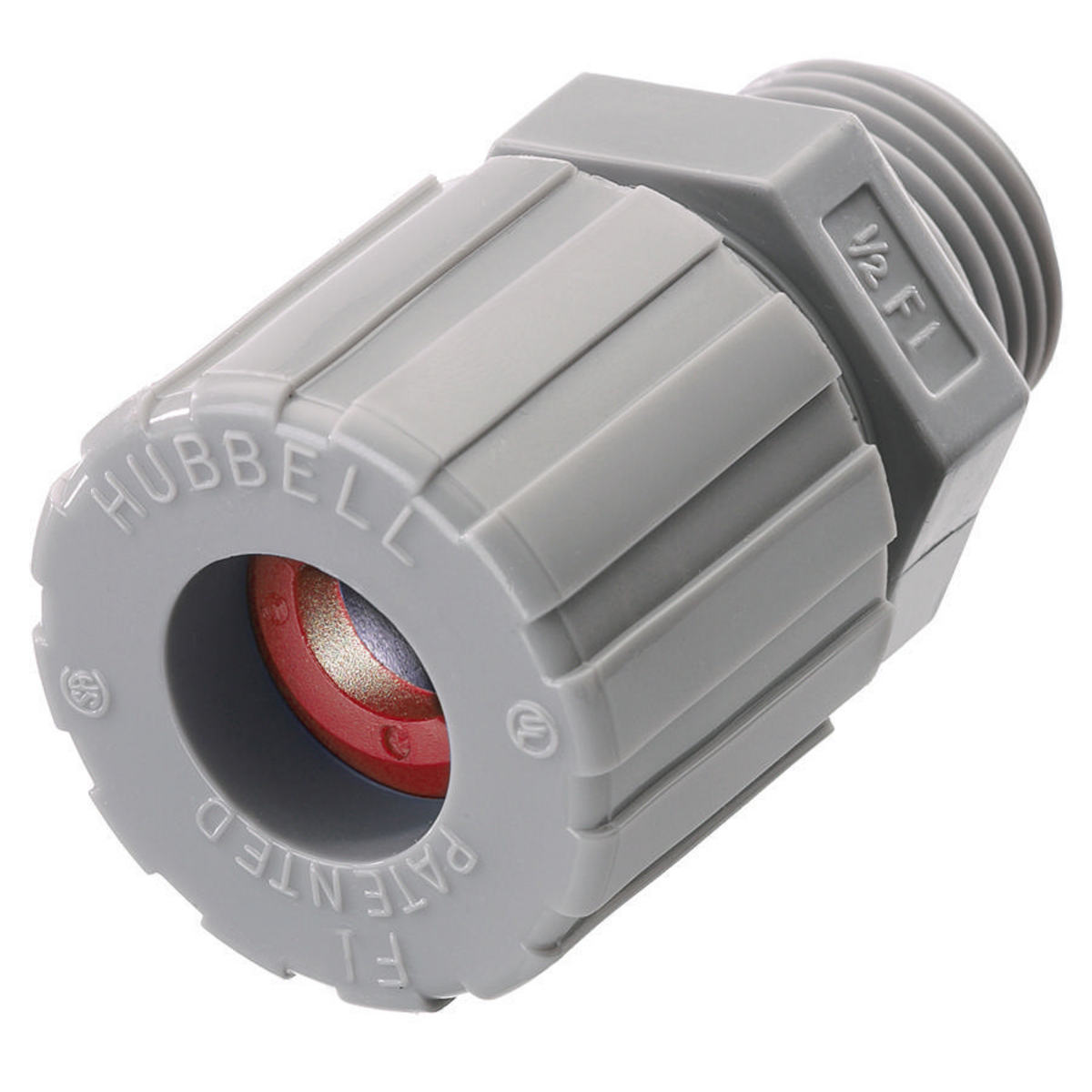

Hubbell Wiring Device-Kellems SHC1009CR CORDCON, STR ML, .19
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems SHC1009CR CORDCON, STR ML, .19
SKU203291
MFGR #SHC1009CR
Your Cost: $11.54/ea
Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Hubbell's nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They're available in NPT hub sizes from 1/4 to 1 in.
Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Hubbell's nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They're available in NPT hub sizes from 1/4 to 1 in.
Application Straight Male- Form 1 ARRA Compliant C Buy American Compliant C Catalog Number SHC1009CR Color Gray Conductor Range 0.19-0.25 in (4.7- 6.3 mm) Connection Type Straight MNPT Country of Origin PR Currency USD Dimensions 1 in Dia x 1.53 in L Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 1.00 in Height [Metric] 2.5400 cm Length 1.75 in Length [Metric] 4.4450 cm Mounting Locknut or Tapped Opening NEMA Rating NEMA Type 4, 4X, 12 and 13 Number Of Conductors Single Returnable Y Size 3/8" NPT in Standard UL LISTED Standards ARRABuy American ActRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedUL 94-V-2 Flammability RatingNEC Class I Division 2, Class II Division 1, 2, Class Ill Division 1, 2 Hazardous Locations Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F Type Straight Male UNSPSC 39121431 UPC 11 78358520791 UPC 12 783585207919 Width 1.00 in Width [Metric] 2.5400 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.19 to 0.25 in Dia Finish Smooth Material Nylon Trade Size 3/8 in Straight Male- Form 1 Standard Product Nylon cord connector resists most common industrial corrosives Provides effective pullout protection Lightweight design Red color code 0.67 to 0.7 in recommended knockout hole 0.43 in thread length 0.45 in throat diameter F1 form size Hubbell's nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design They are ideal for any application where weight, conductivity or corrosion may be an issue NEMA 4/4X/12/13 enclosure
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male- Form 1 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SHC1009CR |
| Color | Gray |
| Conductor Range | 0.19-0.25 in (4.7- 6.3 mm) |
| Connection Type | Straight MNPT |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 1 in Dia x 1.53 in L |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 1.00 in |
| Height [Metric] | 2.5400 cm |
| Length | 1.75 in |
| Length [Metric] | 4.4450 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 3/8" NPT in |
| Standard | UL LISTED |
| Standards | ARRABuy American ActRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedUL 94-V-2 Flammability RatingNEC Class I Division 2, Class II Division 1, 2, Class Ill Division 1, 2 Hazardous Locations |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F |
| Type | Straight Male |
| UNSPSC | 39121431 |
| UPC 11 | 78358520791 |
| UPC 12 | 783585207919 |
| Width | 1.00 in |
| Width [Metric] | 2.5400 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.19 to 0.25 in Dia |
| Finish | Smooth |
| Material | Nylon |
| Trade Size | 3/8 in |
| Straight Male- Form 1 |
| Standard Product |
| Nylon cord connector resists most common industrial corrosives |
| Provides effective pullout protection |
| Lightweight design |
| Red color code |
| 0.67 to 0.7 in recommended knockout hole |
| 0.43 in thread length |
| 0.45 in throat diameter |
| F1 form size |
| Hubbell's nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design |
| They are ideal for any application where weight, conductivity or corrosion may be an issue |
| NEMA 4/4X/12/13 enclosure |
