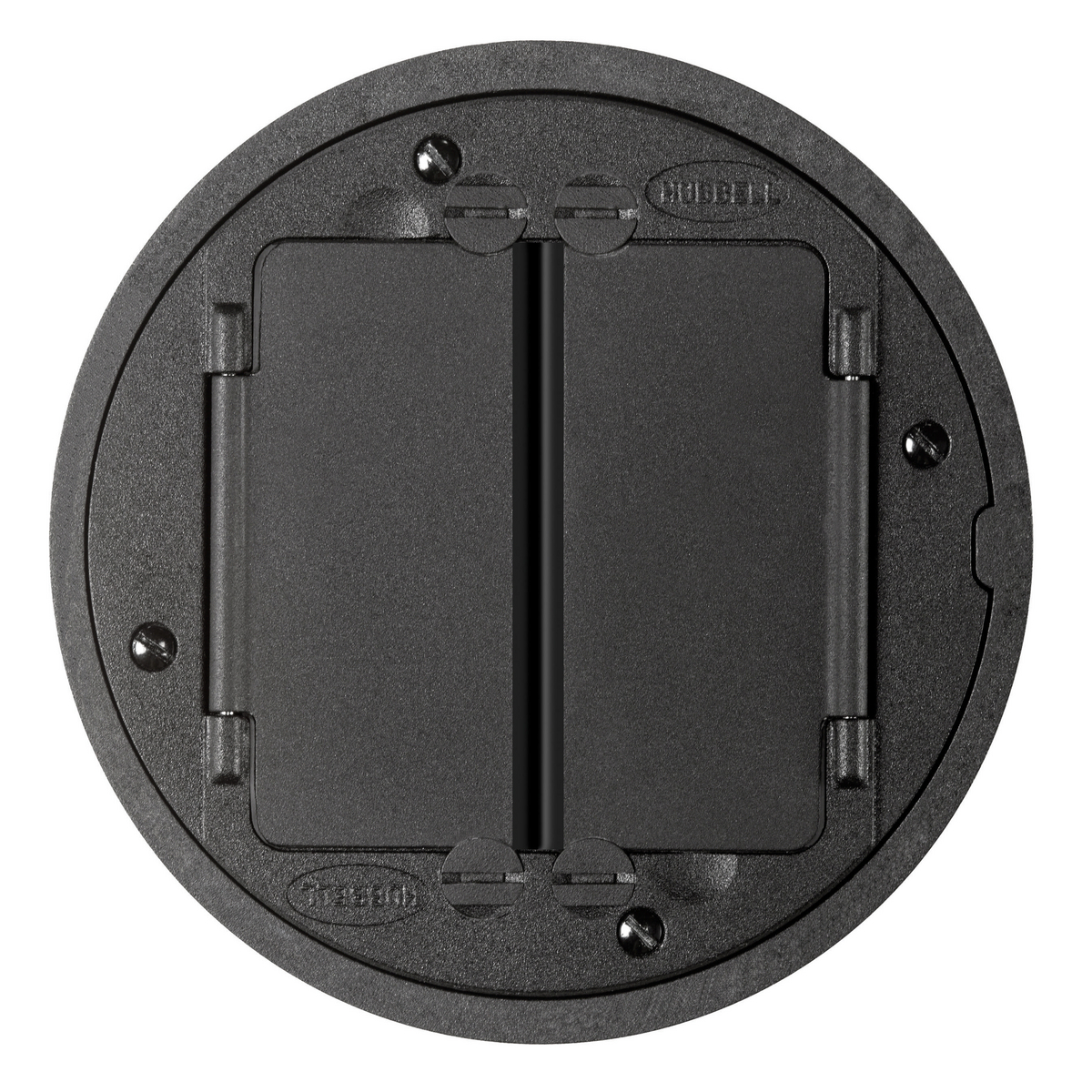

Hubbell Wiring Device-Kellems S1TFCBL SystemOne™ Flush - S1 Standard Sized Floor Box Cover, 5-5/8 in Dia, Die Cast Aluminum
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems S1TFCBL SystemOne™ Flush - S1 Standard Sized Floor Box Cover, 5-5/8 in Dia, Die Cast Aluminum
SKU507143
MFGR #S1TFCBL
Your Cost: $198.56/ea
List: Hubbell SystemOne is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell SystemOne features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell flush floor boxes and fire rated poke-throughs. Whatever the application, Hubbell SystemOne delivers a consistent, aesthetic and functional solution for applications "in-the-floor" or "through-the-floor" for power, voice, data, and A/V requirements.
Hubbell SystemOne is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell SystemOne features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell flush floor boxes and fire rated poke-throughs. Whatever the application, Hubbell SystemOne delivers a consistent, aesthetic and functional solution for applications "in-the-floor" or "through-the-floor" for power, voice, data, and A/V requirements.
Application Flush SystemOne Installation ARRA Compliant C Brand Hubbell Wiring Device-Kellems Buy American Compliant C Cable Entry Through Cover Capacity 300 lb Catalog Number S1TFCBL Color Black Construction Cast Aluminum Country of Origin US Currency USD Diameter 5-1/2 in EU RoHS Indicator N Finish Brushed Gross Weight Per Pack 0.6100 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7616995190 Height 2.30 in Height [Metric] 5.8369 cm Length 5.68 in Length [Metric] 14.4221 cm Manufacturer Hubbell Material Die Cast Aluminum Mounting (3) Screw Mount Mounting Type Surface Number of Gangs 2 Returnable Y Shape Round Size Standard Sized Product Standard cULus Standards ARRA CompliantBuy American Act CompliantUL File No. E11461 Stock Status NONSTOCK Sub Brand Flush Concrete Floor Boxes Thickness 0.1 in Type Standard UNSPSC 39121328 UPC 11 78358537111 UPC 12 783585371115 Width 5.61 in Width [Metric] 14.2443 cm Flush SystemOne Installation Standard Product Hinged doors open 180 deg flush to carpet flange or tile Without knockouts Over-molded access doors prevent dirt, and debris from entering power and communication compartments Security screws allow each door to be opened and secured independently Universal carpet or tile flange can be used for Hubbell SystemOne metal and non-metallic floor box as well as SystemOne fire rated poke-throughs Features SCRUBSHIELD technology that exceeds UL514A and UL514C scrub water exclusion requirements 4 in core hole in concrete floor Fabricated construction Provides consistent look and maximum functionality throughout the installed life
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Flush SystemOne Installation |
| ARRA Compliant | C |
| Brand | Hubbell Wiring Device-Kellems |
| Buy American Compliant | C |
| Cable Entry | Through Cover |
| Capacity | 300 lb |
| Catalog Number | S1TFCBL |
| Color | Black |
| Construction | Cast Aluminum |
| Country of Origin | US |
| Currency | USD |
| Diameter | 5-1/2 in |
| EU RoHS Indicator | N |
| Finish | Brushed |
| Gross Weight Per Pack | 0.6100 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7616995190 |
| Height | 2.30 in |
| Height [Metric] | 5.8369 cm |
| Length | 5.68 in |
| Length [Metric] | 14.4221 cm |
| Manufacturer | Hubbell |
| Material | Die Cast Aluminum |
| Mounting | (3) Screw Mount |
| Mounting Type | Surface |
| Number of Gangs | 2 |
| Returnable | Y |
| Shape | Round |
| Size | Standard Sized Product |
| Standard | cULus |
| Standards | ARRA CompliantBuy American Act CompliantUL File No. E11461 |
| Stock Status | NONSTOCK |
| Sub Brand | Flush Concrete Floor Boxes |
| Thickness | 0.1 in |
| Type | Standard |
| UNSPSC | 39121328 |
| UPC 11 | 78358537111 |
| UPC 12 | 783585371115 |
| Width | 5.61 in |
| Width [Metric] | 14.2443 cm |
| Flush SystemOne Installation |
| Standard Product |
| Hinged doors open 180 deg flush to carpet flange or tile |
| Without knockouts |
| Over-molded access doors prevent dirt, and debris from entering power and communication compartments |
| Security screws allow each door to be opened and secured independently |
| Universal carpet or tile flange can be used for Hubbell SystemOne metal and non-metallic floor box as well as SystemOne fire rated poke-throughs |
| Features SCRUBSHIELD technology that exceeds UL514A and UL514C scrub water exclusion requirements |
| 4 in core hole in concrete floor |
| Fabricated construction |
| Provides consistent look and maximum functionality throughout the installed life |
