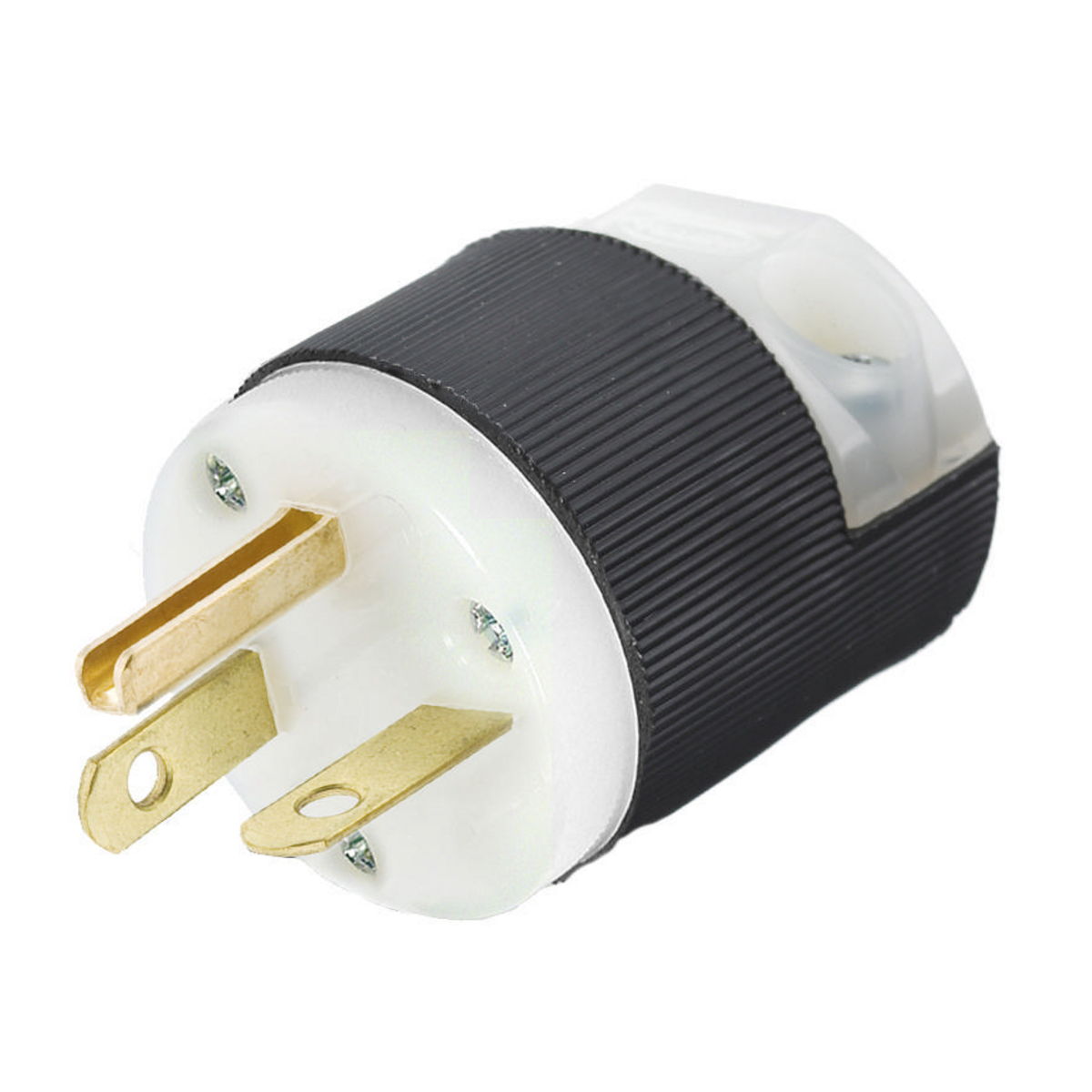

Hubbell Wiring Device-Kellems Insulgrip® HBL5466C Grounding Straight Blade Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Straight Blade Plugs
26460
MFG #: HBL5466C
Hubbell Wiring Device-Kellems
34.13000
/ ea
Wiring Device-Kellems Insulgrip® Straight Blade Plug, Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA 6-20P, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Threaded Terminal, Nylon, Black, 1.97 in L x 1.53 in W
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_FSUQ4CTE97YAVRW6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1214_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666869115.pdf(Install Instructions URL)
- Line Drawing URL - 11456_RLEG31SMYQZUXHO4.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL5466C_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_R7TZ29P6J1SOYLXF.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL5466C_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537666543351.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL5466C_M7149_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial |
| Standard Product |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Terminals identified in accordance with UL 498 (brass, white, green) |
| 18 to 10 AWG solid or stranded copper conductor terminal accommodation |
| UL 94-HB or better flammability rating |
| 0.06 in brass contact blades, 0.04 in copper alloy blades |
| #8-32 brass/nickel plated for neutral terminal screw, #8-32 brass multiple drive (green) ground screw |
| Ribbed nylon housing is impact and chemical resistant |
| Fast lead assembly screws |
| Beveled housing prevents snagging |
| Black nylon housing, clear polycarbonate retainer, natural nylon blade holder and cord clamp |
