Hubbell Wiring Device-Kellems

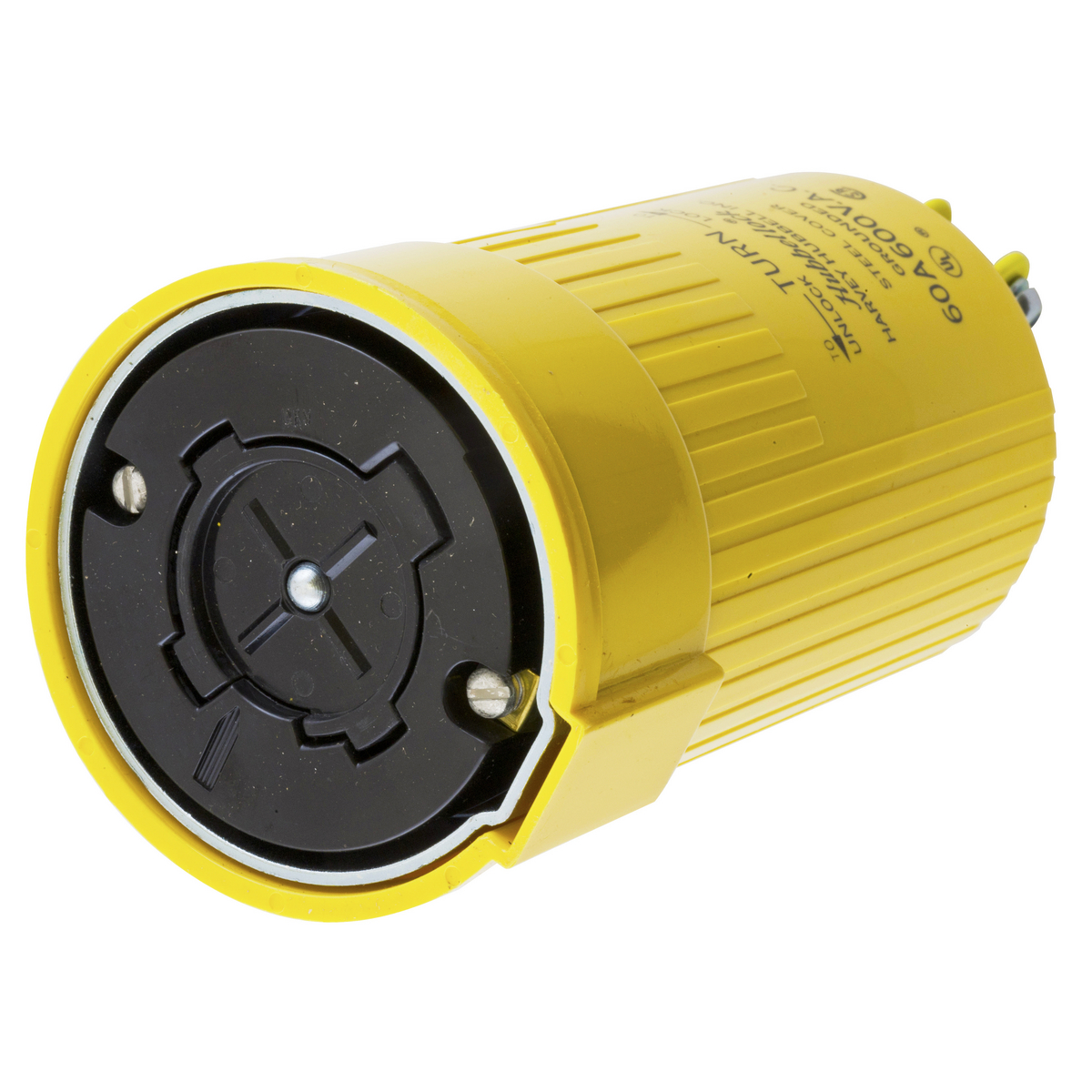

Hubbell Wiring Device-Kellems Hubbellock® HBL26418 Heavy Duty Isolated Grounding Standard Sized Female Connector, 600 VAC, 60 A, 3 Poles, 4 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Hubbellock® HBL26418 Heavy Duty Isolated Grounding Standard Sized Female Connector, 600 VAC, 60 A, 3 Poles, 4 Wires, Yellow
SKU26239
MFGR #HBL26418
Your Cost: $846.82/ea
Wiring Device-Kellems Hubbellock® Female Connector, Heavy Duty Isolated Grounding Standard Sized, 600 VAC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP30 Enclosure, 0.92 to 1.45 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Steel, Yellow, 5.44 in L x 3.19 in W
Wiring Device-Kellems Hubbellock® Female Connector, Heavy Duty Isolated Grounding Standard Sized, 600 VAC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP30 Enclosure, 0.92 to 1.45 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Steel, Yellow, 5.44 in L x 3.19 in W
Amperage Rating 60 A Application Heavy Duty Industrial ARRA Compliant C Brand Hubbell Wiring Device-Kellems Buy American Compliant C Catalog Number HBL26418 Color Yellow Conductor Range #6AWG Connection Pressure Screw Terminal Cord Diameter 0.92 to 1.45 in Country of Origin US Currency USD Dimensions 5.44 in L x 3.19 in W Enclosure IP30 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Grade Industrial Gross Weight Per Pack 2.4500 lb Gross Weight per Pack Metric 0.24 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.50 in Height [Metric] 8.8900 cm Insulation Insulated Body Length 7.10 in Length [Metric] 18.0340 cm Manufacturer Hubbell Material Steel Mounting Cord Mounted NEMA Rating Non-NEMA Number Of Conductors 4-Wire Grounding Number Of Poles 3 Number of Wires 4 Returnable Y Size 3.19 in x 1.09 in x 5.44 in Standard Certified to CSA C22.2 No. 42;Listed to UL 498 Standards ARRA CompliantBuy American Act CompliantUL 498CSA C22.2 No. 42 Stock Status NONSTOCK Sub Brand Hubbellock Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Pressure Screw Type Connector Body UNSPSC 39121421 UPC 11 78358501731 UPC 12 783585017310 Voltage Rating 600 V Width 3.60 in Width [Metric] 9.1440 cm Heavy Duty Industrial Standard Product Spring-loaded safety shutter contains arcing when mating or unmating devices under load Spring-loaded safety shutter automatically ejects the plug eliminating contact teasing Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability Insulated, color coded metallic housing enhances safety and abuse resistance
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 60 A |
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Brand | Hubbell Wiring Device-Kellems |
| Buy American Compliant | C |
| Catalog Number | HBL26418 |
| Color | Yellow |
| Conductor Range | #6AWG |
| Connection | Pressure Screw Terminal |
| Cord Diameter | 0.92 to 1.45 in |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.44 in L x 3.19 in W |
| Enclosure | IP30 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Grade | Industrial |
| Gross Weight Per Pack | 2.4500 lb |
| Gross Weight per Pack Metric | 0.24 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Insulation | Insulated Body |
| Length | 7.10 in |
| Length [Metric] | 18.0340 cm |
| Manufacturer | Hubbell |
| Material | Steel |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Number Of Conductors | 4-Wire Grounding |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Returnable | Y |
| Size | 3.19 in x 1.09 in x 5.44 in |
| Standard | Certified to CSA C22.2 No. 42;Listed to UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantUL 498CSA C22.2 No. 42 |
| Stock Status | NONSTOCK |
| Sub Brand | Hubbellock |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Pressure Screw |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC 11 | 78358501731 |
| UPC 12 | 783585017310 |
| Voltage Rating | 600 V |
| Width | 3.60 in |
| Width [Metric] | 9.1440 cm |
| Heavy Duty Industrial |
| Standard Product |
| Spring-loaded safety shutter contains arcing when mating or unmating devices under load |
| Spring-loaded safety shutter automatically ejects the plug eliminating contact teasing |
| Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability |
| Insulated, color coded metallic housing enhances safety and abuse resistance |
