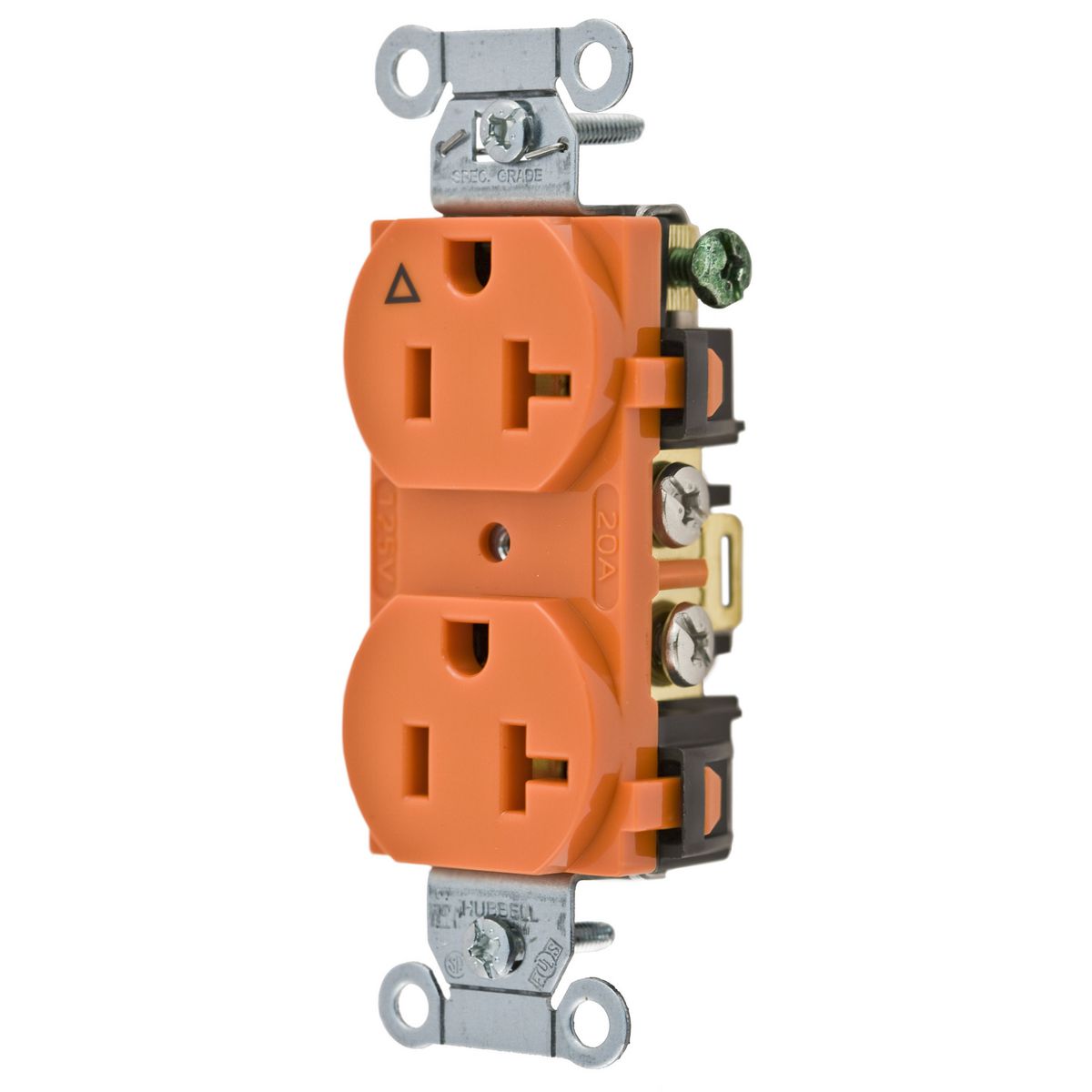

Hubbell Wiring Device-Kellems Hubbell-PRO IG5352 Duplex Grounding Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Hubbell-PRO IG5352 Duplex Grounding Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
SKU468741
MFGR #IG5352
Your Cost: $12.73/ea
List: Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex Grounding Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, Orange, 3.281 in H x 1.322 in W x 1.067 in D
Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex Grounding Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, Orange, 3.281 in H x 1.322 in W x 1.067 in D
Application Hubbell-Pro Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number IG5352 Connection Back and Side Wired Screw Terminals Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.281 in H x 1.322 in W x 1.067 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.01 in Height [Metric] 2.5654 cm Horsepower 1 hp Length 4.15 in Length [Metric] 10.5410 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.57 in x 1.07 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards UL 498, File No. E2186 Listed, UL 94-V-2 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Isolated Ground UNSPSC 39121406 UPC 11 78358514679 UPC 12 783585146799 Wattage 2,500 W Width 1.57 in Width [Metric] 3.9878 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Orange Number of Wires 3 Voltage Rating 125 V Hubbell-Pro Heavy Duty Isolated Ground Withstands 2000 VAC dielectric voltage Certified for current interrupting at full rated current Triangle marking on face indicates isolated ground Slender/compact design Smooth face 12 to 10 AWG solid or stranded copper conductor terminal accommodation Nylon base, 0.031 in brass power contact Terminals identified in accordance with UL 498 and CSA 0.031 in brass ground contact Nickel plated steel clamping plate Brass terminal screws Galvanized steel mounting strap Stainless steel automatic self-grounding clip Stainless steel mounting screws Traditional duplex receptacle Indoor dry unless protected by additional means
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hubbell-Pro Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IG5352 |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.281 in H x 1.322 in W x 1.067 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.01 in |
| Height [Metric] | 2.5654 cm |
| Horsepower | 1 hp |
| Length | 4.15 in |
| Length [Metric] | 10.5410 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.57 in x 1.07 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | UL 498, File No. E2186 Listed, UL 94-V-2 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Isolated Ground |
| UNSPSC | 39121406 |
| UPC 11 | 78358514679 |
| UPC 12 | 783585146799 |
| Wattage | 2,500 W |
| Width | 1.57 in |
| Width [Metric] | 3.9878 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Orange |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hubbell-Pro Heavy Duty |
| Isolated Ground |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Triangle marking on face indicates isolated ground |
| Slender/compact design |
| Smooth face |
| 12 to 10 AWG solid or stranded copper conductor terminal accommodation |
| Nylon base, 0.031 in brass power contact |
| Terminals identified in accordance with UL 498 and CSA |
| 0.031 in brass ground contact |
| Nickel plated steel clamping plate |
| Brass terminal screws |
| Galvanized steel mounting strap |
| Stainless steel automatic self-grounding clip |
| Stainless steel mounting screws |
| Traditional duplex receptacle |
| Indoor dry unless protected by additional means |
