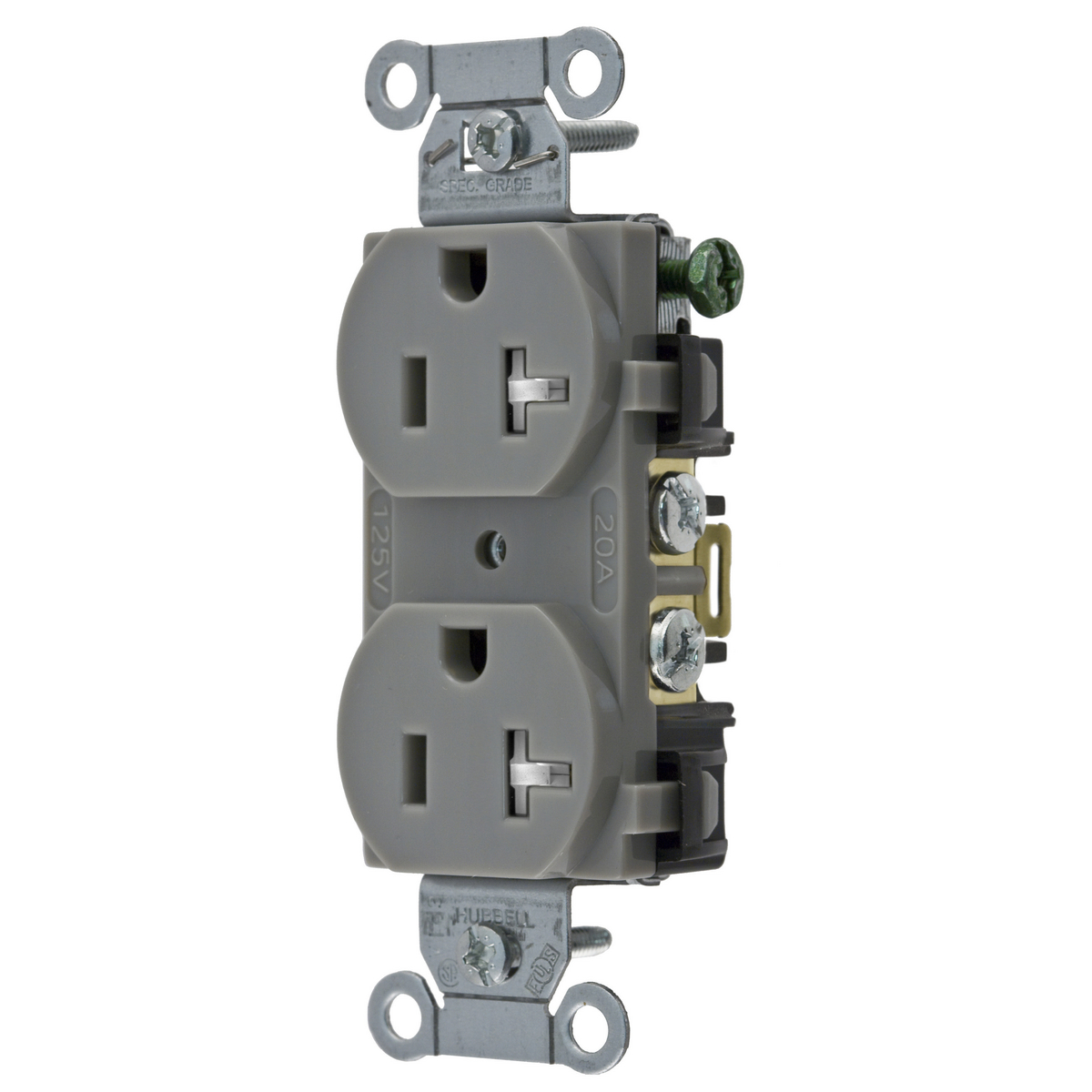

Hubbell Wiring Device-Kellems Hubbell-PRO BR20GRYTR Commercial Duplex Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Hubbell-PRO BR20GRYTR Commercial Duplex Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU450014
MFGR #BR20GRYTR
Your Cost: $8.29/ea
List: Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex Tamper Resistant, Series: Commercial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Gray, 3.281 in H x 1.322 in W x 1.147 in D
Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex Tamper Resistant, Series: Commercial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Gray, 3.281 in H x 1.322 in W x 1.147 in D
Application Commercial Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number BR20GRYTR Connection Back and Side Wired Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.32 in W x 0.83 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Industrial/Specification Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.09 in Height [Metric] 2.7686 cm Horsepower 1 hp Length 4.01 in Length [Metric] 10.1854 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 1.32 in x 1.47 in x 3.28 in Standard Certified to CSA C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42Federal Specification WC596NEMA WD1/WD5UL 498 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Tamper-Resistant UNSPSC 39121406 UPC 11 78358514414 UPC 12 783585144146 Wattage 2,500 W Width 1.55 in Width [Metric] 3.9370 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Commercial Specification Grade Tamper Resistant- Self Grounding Smooth face Tamper resistant shutter complies with national electrical code requirements Triple wipe contacts Wrap around galvanized steel strap Withstands 2000 VAC minimum dielectric voltage Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Terminals identified in accordance with UL498 (brass, white, green) 14 to 10 AWG copper stranded or solid conductor only terminal accommodation Ratings are a permanent part of the device Triple wipe contact Tamper resistant shutter complies with national electrical code requirements Screw mounted Tamper-resistant shutter complies with national electrical code requirements
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BR20GRYTR |
| Connection | Back and Side Wired |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.32 in W x 0.83 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Industrial/Specification |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.09 in |
| Height [Metric] | 2.7686 cm |
| Horsepower | 1 hp |
| Length | 4.01 in |
| Length [Metric] | 10.1854 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.32 in x 1.47 in x 3.28 in |
| Standard | Certified to CSA C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42Federal Specification WC596NEMA WD1/WD5UL 498 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 78358514414 |
| UPC 12 | 783585144146 |
| Wattage | 2,500 W |
| Width | 1.55 in |
| Width [Metric] | 3.9370 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Specification Grade |
| Tamper Resistant- Self Grounding |
| Smooth face |
| Tamper resistant shutter complies with national electrical code requirements |
| Triple wipe contacts |
| Wrap around galvanized steel strap |
| Withstands 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL498 (brass, white, green) |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device |
| Triple wipe contact |
| Tamper resistant shutter complies with national electrical code requirements |
| Screw mounted |
| Tamper-resistant shutter complies with national electrical code requirements |
