Hubbell Wiring Device-Kellems

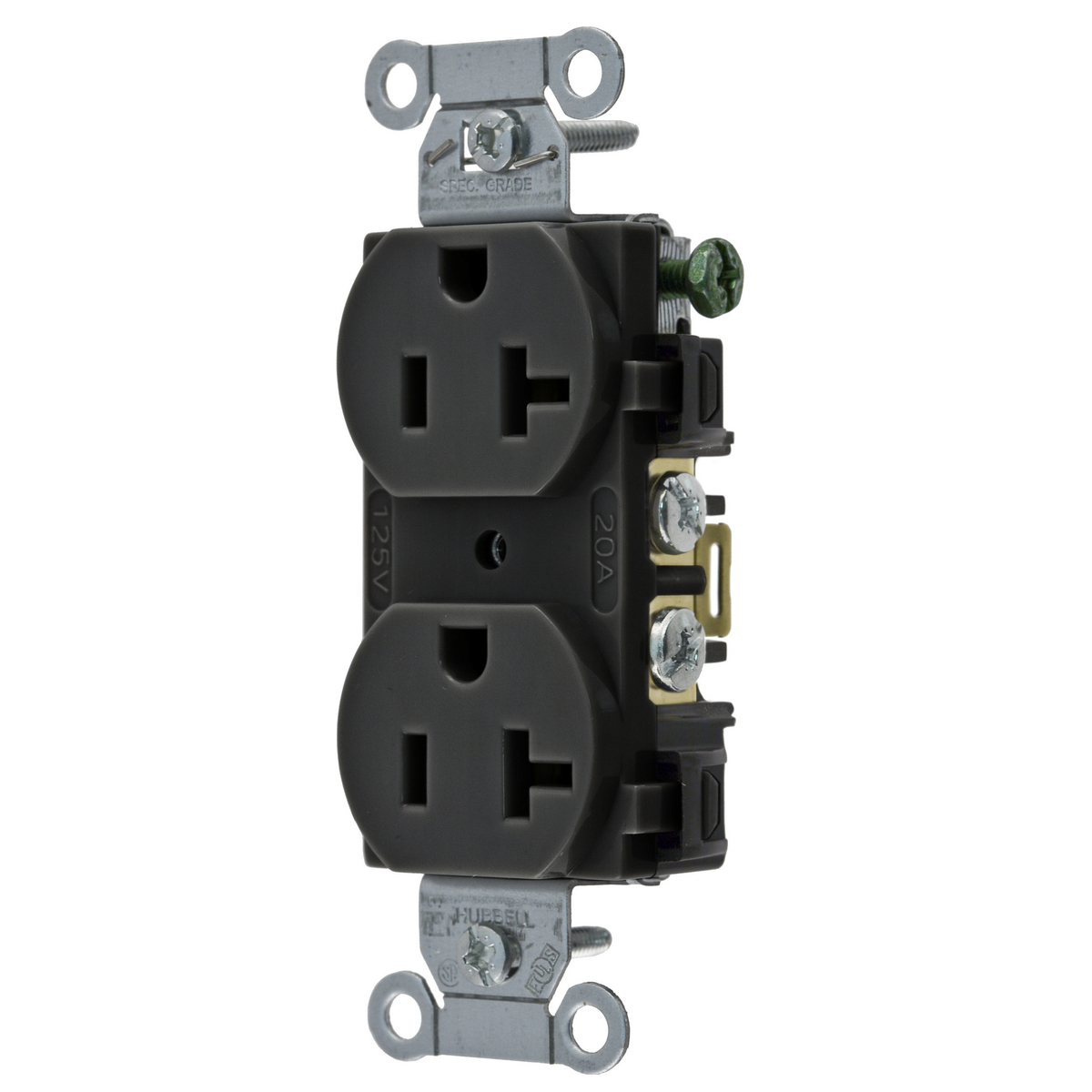

Hubbell Wiring Device-Kellems Hubbell-PRO BR20BLK Commercial Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Hubbell-PRO BR20BLK Commercial Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
SKU476662
MFGR #BR20BLK
$/ea
Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex, Series: Commercial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Black, 3.281 in H x 1.322 in W x 1.067 in D
Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex, Series: Commercial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Black, 3.281 in H x 1.322 in W x 1.067 in D
Application Commercial Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number BR20BLK Connection Back and Side Wired Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.32 in L x 0.83 in W x 3.28 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Specification Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.01 in Height [Metric] 2.5654 cm Horsepower 1 hp Length 4.17 in Length [Metric] 10.5918 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 1.32 in x 0.83 in x 3.28 in Standard Certified to CSA 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL94 V-2 Flammability RatingNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Standard Duplex UNSPSC 39121406 UPC 11 78358510968 UPC 12 783585109688 Wattage 2,500 W Width 1.56 in Width [Metric] 3.9624 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Black Number of Wires 3 Voltage Rating 125 V Commercial Specification Grade Self Grounding Nylon face and base Triple wipe power contacts Wraparound galvanized steel strap Easy access split circuit tab Steel-zinc plated mounting screw Withstands 2000 VAC minimum dielectric voltage Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current Terminals identified in accordance with UL498 (brass, white, green) 14 to 10 AWG copper stranded or solid conductor only terminal accommodation Ratings are a permanent part of the device Triple wipe contacts Nylon face and base Easy access split circuit tab
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BR20BLK |
| Connection | Back and Side Wired |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.32 in L x 0.83 in W x 3.28 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Specification |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.01 in |
| Height [Metric] | 2.5654 cm |
| Horsepower | 1 hp |
| Length | 4.17 in |
| Length [Metric] | 10.5918 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.32 in x 0.83 in x 3.28 in |
| Standard | Certified to CSA 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL94 V-2 Flammability RatingNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358510968 |
| UPC 12 | 783585109688 |
| Wattage | 2,500 W |
| Width | 1.56 in |
| Width [Metric] | 3.9624 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Specification Grade |
| Self Grounding |
| Nylon face and base |
| Triple wipe power contacts |
| Wraparound galvanized steel strap |
| Easy access split circuit tab |
| Steel-zinc plated mounting screw |
| Withstands 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current |
| Terminals identified in accordance with UL498 (brass, white, green) |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device |
| Triple wipe contacts |
| Nylon face and base |
| Easy access split circuit tab |
