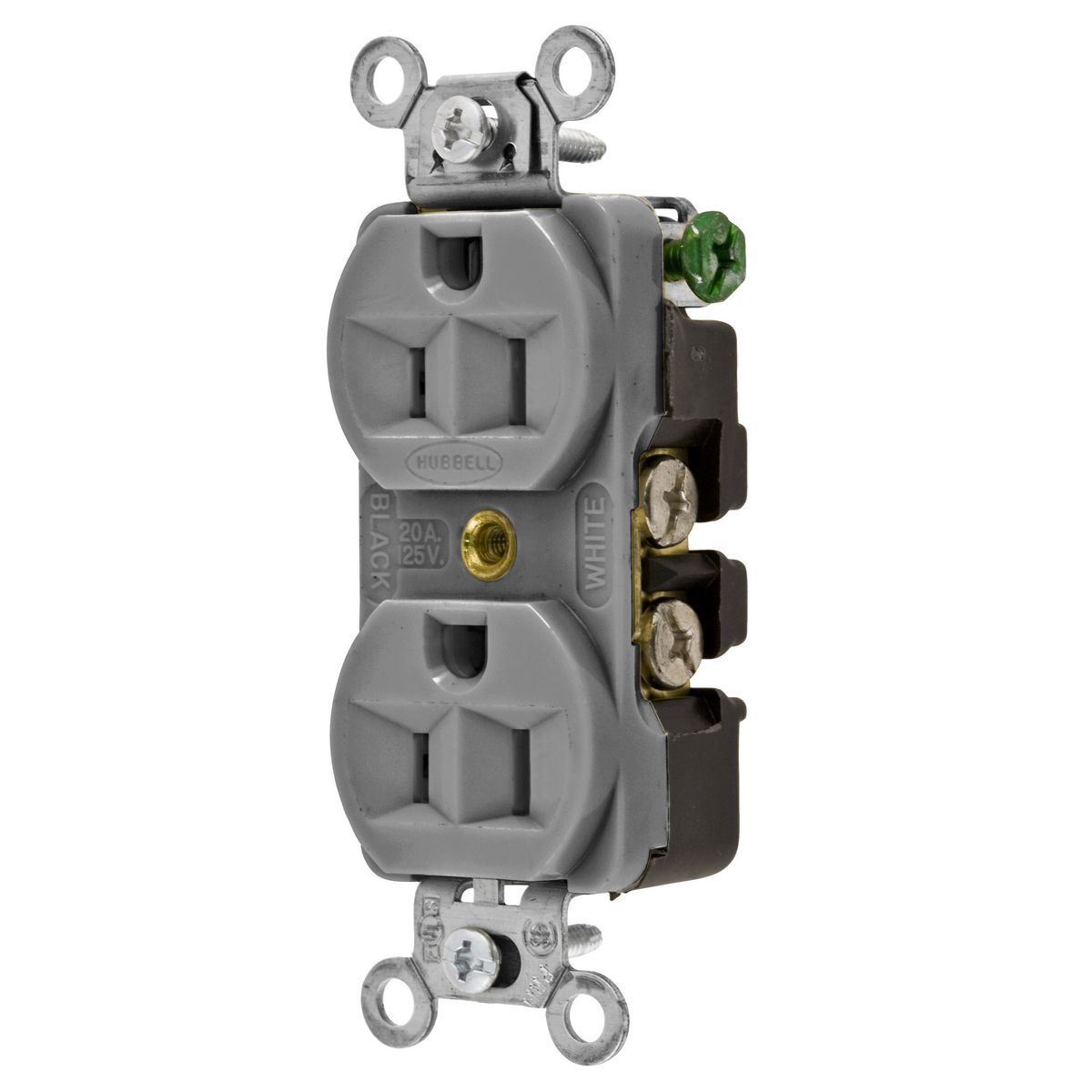

Hubbell Wiring Device-Kellems Hubbell-PRO 5262G 5262 Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Straight Blade Receptacles
415102
MFG #: 5262G
Hubbell Wiring Device-Kellems
6.37000
/ ea
Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, Duplex Grounding, Series: 5262, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Gray, 3.281 in H x 1.406 in W x 1.094 in D
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_1M4YEXBKRDVFN8S0.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537663783228.pdf(Install Instructions URL)
- Line Drawing URL - 11456_QGC63FYJMNKXV4D2.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_UHQS8NIR1K2D9YVP.pdf(Spec Sheet URL)
- Tech Drawing URL - M10822_ACAD.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Hubbell-Pro Extra Heavy Duty |
| Self Grounding |
| Steel mounting strap, self-grounding |
| Finder groove face style |
| Triple wipe brass contacts |
| Nylon face, PBT base, galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 10 AWG copper stranded or solid conductor terminal accommodation |
| 0.03 in brass power contacts material, 0.04 in galvanized steel mounting strap material |
| Hubbell PRO heavy duty receptacle |
