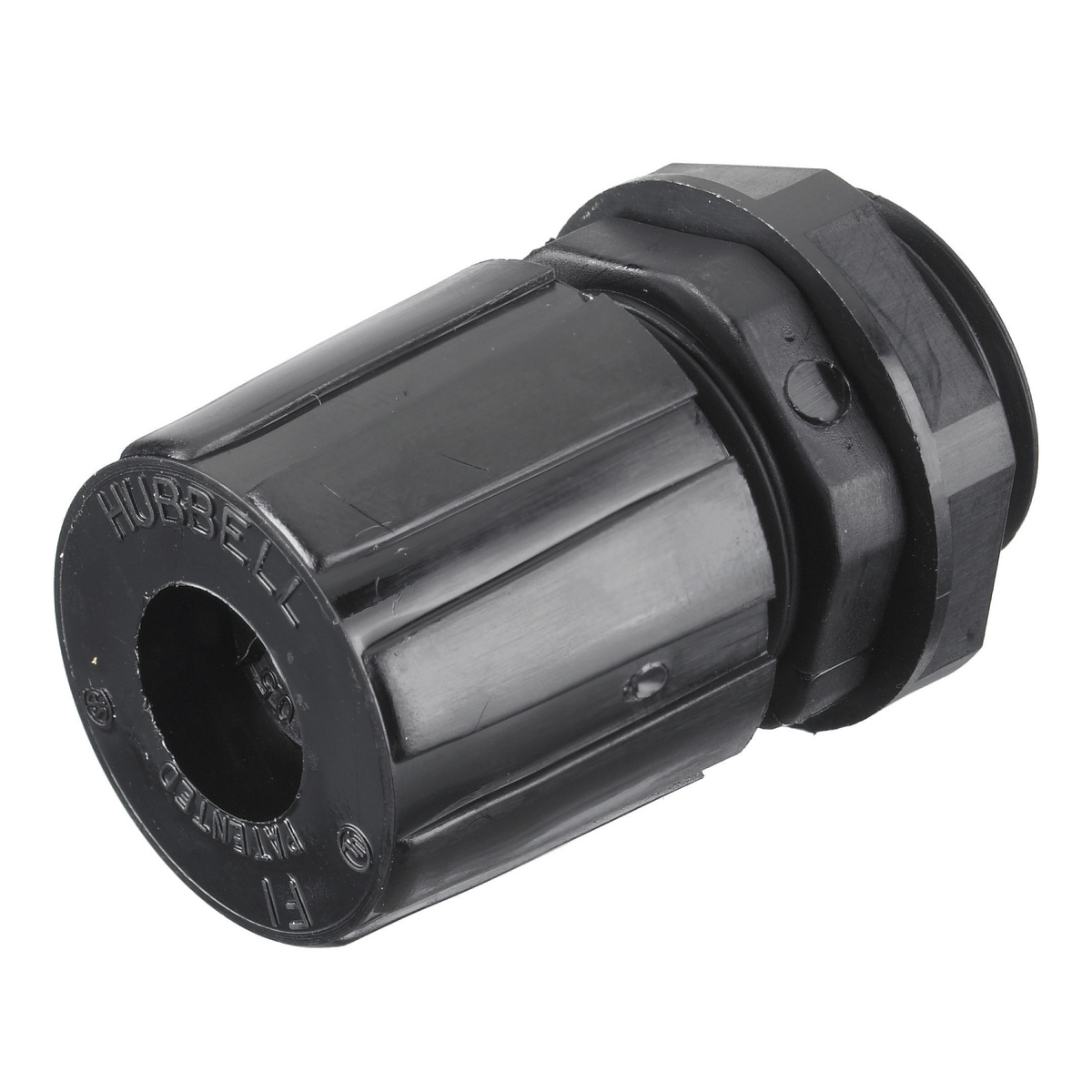

Hubbell Wiring Device-Kellems HJ1004BPK25 Miniature Cord Connector, 0.15 to 0.21 in Cable Openings, Nylon
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HJ1004BPK25 Miniature Cord Connector, 0.15 to 0.21 in Cable Openings, Nylon
SKU326432
MFGR #HJ1004BPK25
Your Cost: $119.56/ea
Hubbell Juniors are a miniature liquidtight version of the full-sized Hubbell cord connectors. They feature the same GOTCHA® ring technology and neoprene bushings.
Hubbell Juniors are a miniature liquidtight version of the full-sized Hubbell cord connectors. They feature the same GOTCHA® ring technology and neoprene bushings.
Application Straight Male Connector ARRA Compliant C Buy American Compliant C Catalog Number HJ1004BPK25 Color Black Conductor Range 0.15-0.21 in (3.7-5.3 mm) Connection Type MNPT Straight Country of Origin PR Currency USD Dimensions 0.81 in Dia x 1.44 in L Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 1.20 in Height [Metric] 3.0480 cm Length 12.00 in Length [Metric] 30.4800 cm Mounting Locknut or Tapped Opening NEMA Rating IP66 Number Of Conductors Single Returnable Y Size 3/8" NPT in Standard UL Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514BIP66 RatedCSA CertifiedUL94 V-2 Flammability Rating Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F Type Connector UNSPSC 39121431 UPC 11 78358502293 UPC 12 783585022932 Width 12.00 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.15 to 0.21 in Dia Material Nylon Trade Size 3/8 in Straight Male Connector Standard Product 3-gang/8 in hub size 0.67 to 0.68 in knockout hole size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male Connector |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HJ1004BPK25 |
| Color | Black |
| Conductor Range | 0.15-0.21 in (3.7-5.3 mm) |
| Connection Type | MNPT Straight |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 0.81 in Dia x 1.44 in L |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 1.20 in |
| Height [Metric] | 3.0480 cm |
| Length | 12.00 in |
| Length [Metric] | 30.4800 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | IP66 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 3/8" NPT in |
| Standard | UL Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514BIP66 RatedCSA CertifiedUL94 V-2 Flammability Rating |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F |
| Type | Connector |
| UNSPSC | 39121431 |
| UPC 11 | 78358502293 |
| UPC 12 | 783585022932 |
| Width | 12.00 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.15 to 0.21 in Dia |
| Material | Nylon |
| Trade Size | 3/8 in |
| Straight Male Connector |
| Standard Product |
| 3-gang/8 in hub size |
| 0.67 to 0.68 in knockout hole size |
