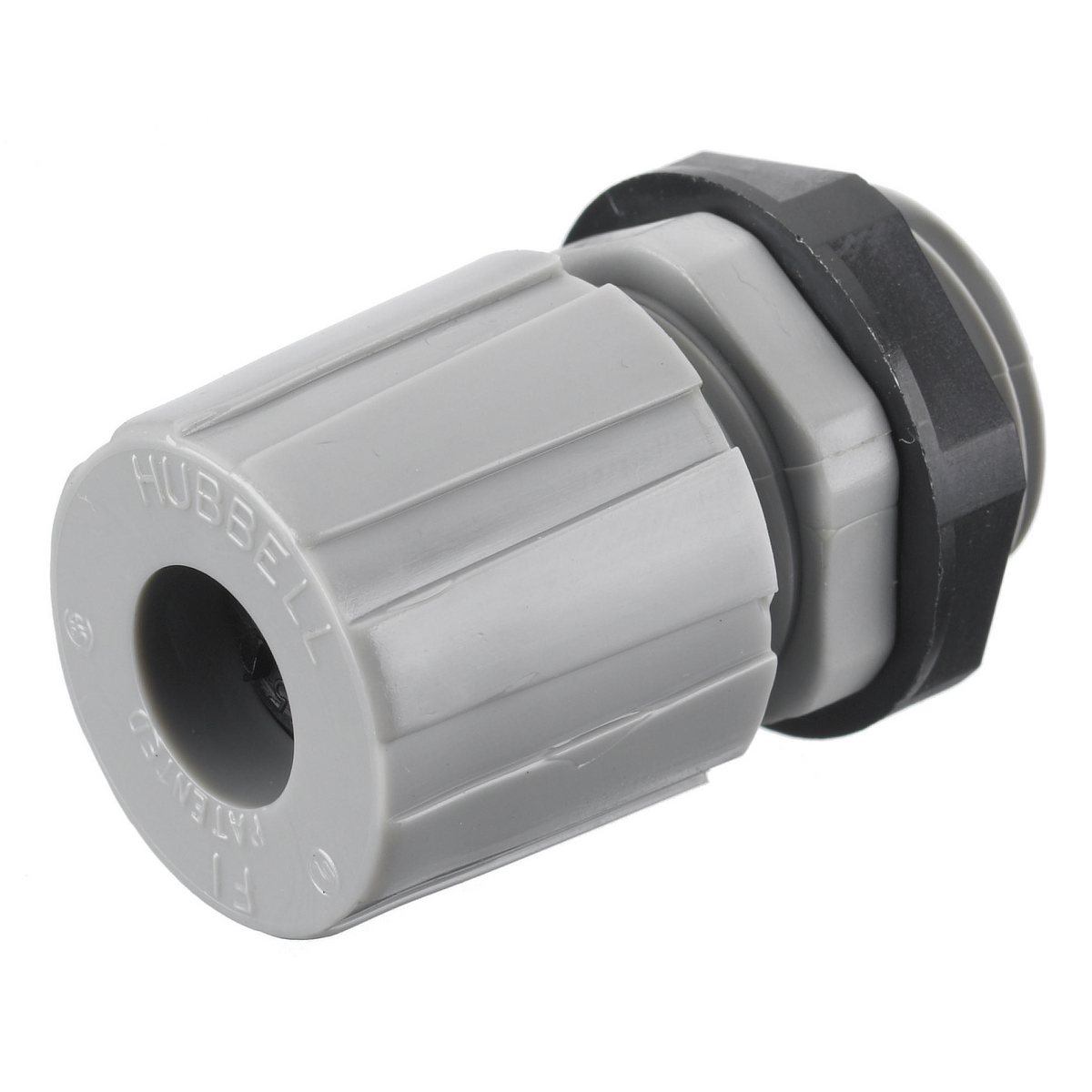

Hubbell Wiring Device-Kellems HJ1003GPK25 JR CORD CONN, .20-
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HJ1003GPK25 JR CORD CONN, .20-
SKU59756
MFGR #HJ1003GPK25
Your Cost: $119.56/ea
Hubbell Juniors are a miniature liquidtight version of the full-sized Hubbell cord connectors. They feature the same GOTCHA® ring technology and neoprene bushings.
Hubbell Juniors are a miniature liquidtight version of the full-sized Hubbell cord connectors. They feature the same GOTCHA® ring technology and neoprene bushings.
Application Straight Male Connector ARRA Compliant C Buy American Compliant C Catalog Number HJ1003GPK25 Color Gray Conductor Range 0.20-0.27 in (5.1-6.7 mm) Connection Type MNPT Straight Country of Origin US Currency USD Dimensions 0.65 in Dia x 1.3 in L Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 1.29 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 6.50 in Height [Metric] 16.5100 cm Length 12.00 in Length [Metric] 30.4800 cm Mounting Locknut or Tapped Opening NEMA Rating IP66 Number Of Conductors Single Returnable Y Size 1/4" NPT in Standard UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514BIP66 RatedCSA CertifiedUL94 V-2 Flammability Rating Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F Type Connector UNSPSC 39121431 UPC 11 78358502292 UPC 12 783585022925 Width 12.30 in Width [Metric] 31.2420 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.2 to 0.27 in Dia Material Nylon Trade Size 1/4 in Straight Male Connector Standard Product 1/4 in hub size 0.53 to 0.54 in knockout hole size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male Connector |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HJ1003GPK25 |
| Color | Gray |
| Conductor Range | 0.20-0.27 in (5.1-6.7 mm) |
| Connection Type | MNPT Straight |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.65 in Dia x 1.3 in L |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 1.29 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 6.50 in |
| Height [Metric] | 16.5100 cm |
| Length | 12.00 in |
| Length [Metric] | 30.4800 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | IP66 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 1/4" NPT in |
| Standard | UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514BIP66 RatedCSA CertifiedUL94 V-2 Flammability Rating |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F |
| Type | Connector |
| UNSPSC | 39121431 |
| UPC 11 | 78358502292 |
| UPC 12 | 783585022925 |
| Width | 12.30 in |
| Width [Metric] | 31.2420 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.2 to 0.27 in Dia |
| Material | Nylon |
| Trade Size | 1/4 in |
| Straight Male Connector |
| Standard Product |
| 1/4 in hub size |
| 0.53 to 0.54 in knockout hole size |
