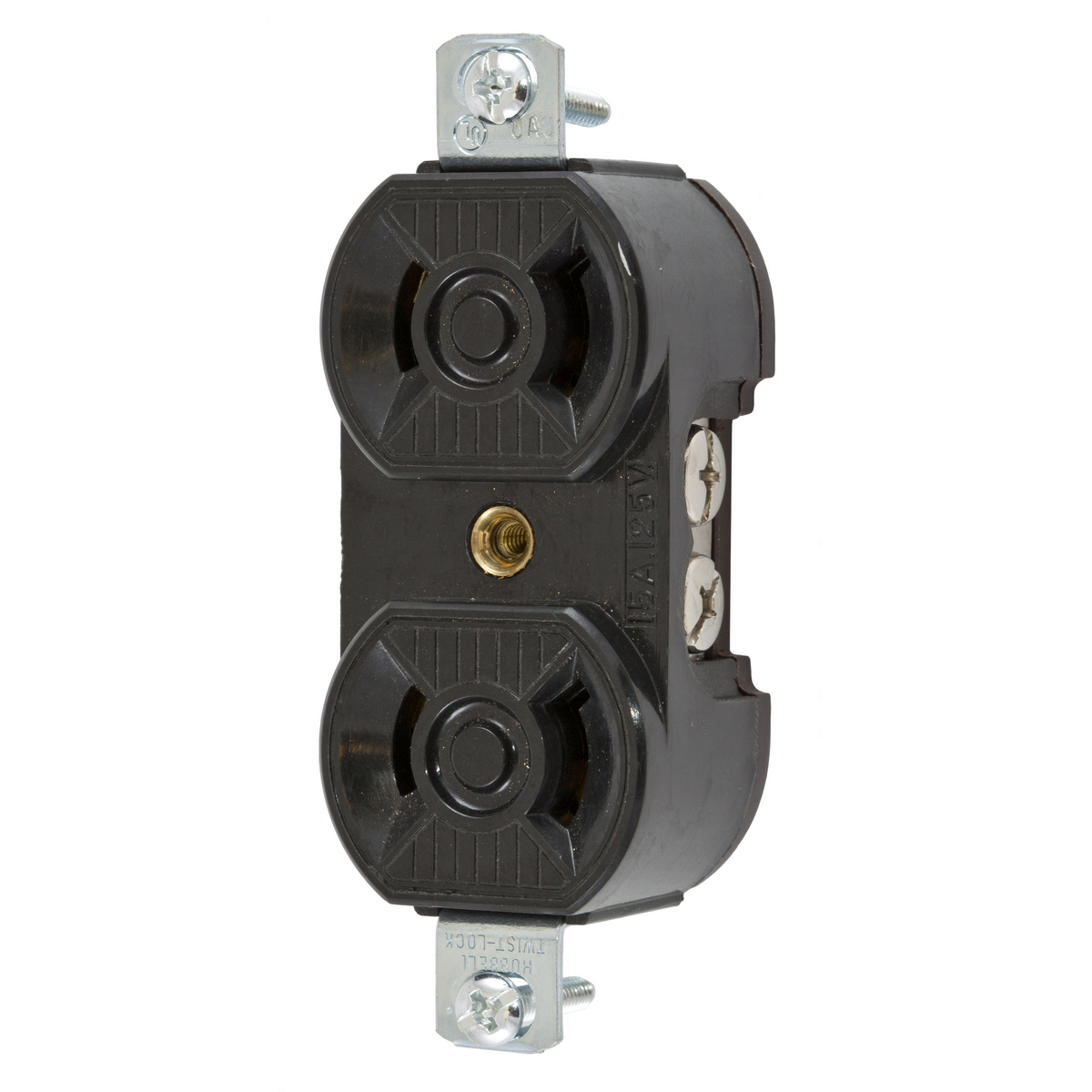

Hubbell Wiring Device-Kellems HCI HBL7540 LKG DUP RCPT, 15A 125V,
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HCI HBL7540 LKG DUP RCPT, 15A 125V,
SKU91973
MFGR #HBL7540
$/ea
LKG DUP RCPT, 15A 125V, L1-15R
LKG DUP RCPT, 15A 125V, L1-15R
Application Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number HBL7540 Connection Screw Terminals Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in L x 1.32 in W x 1.19 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Grade Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.50 in Height [Metric] 3.8100 cm Horsepower 1/2 hp Length 4.20 in Length [Metric] 10.6680 cm Material Thermoplastic Mounting Screw Mount NEMA Rating L1-15R Number Of Poles 2 Phase 1 Returnable N Size 3.28 in x 1.32 in x 1.19 in Standard Certified to CSA C22.2 No.42;Listed to UL 498 Standards NEMA WD-1, WD-5UL 498CSA C22.2 File No. 42CSA C22.2 File No. 0.17UL 94-HB Flammability Rating Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358523760 UPC 12 783585237602 Wattage 1,875 W Width 1.80 in Width [Metric] 4.5720 cm Wire Size #18 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Black Number of Wires 2 Voltage Rating 125 V Heavy Duty Industrial Standard Thermoset construction offers high heat resistance High performance copper alloy contacts Corrosion resistant zinc plated steel 1-piece mounting strap Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 Terminals identified in accordance with UL 498 (X, Y, Z, white, green) 15 A 14 AWG terminal accommodation 0.031 in brass contact spring 0.031 in brass ground contact 0.05 steel zinc plated bridge mounting strap Withstands 2000 VAC minimum dielectric voltage Black thermoset base Black thermoset cover (top) Corrosion resistant zinc plated steel one-piece mounting strap
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL7540 |
| Connection | Screw Terminals |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in L x 1.32 in W x 1.19 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Horsepower | 1/2 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | L1-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 3.28 in x 1.32 in x 1.19 in |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| Standards | NEMA WD-1, WD-5UL 498CSA C22.2 File No. 42CSA C22.2 File No. 0.17UL 94-HB Flammability Rating |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523760 |
| UPC 12 | 783585237602 |
| Wattage | 1,875 W |
| Width | 1.80 in |
| Width [Metric] | 4.5720 cm |
| Wire Size | #18 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 2 |
| Voltage Rating | 125 V |
| Heavy Duty Industrial |
| Standard |
| Thermoset construction offers high heat resistance |
| High performance copper alloy contacts |
| Corrosion resistant zinc plated steel 1-piece mounting strap |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL 498 (X, Y, Z, white, green) |
| 15 A 14 AWG terminal accommodation |
| 0.031 in brass contact spring |
| 0.031 in brass ground contact |
| 0.05 steel zinc plated bridge mounting strap |
| Withstands 2000 VAC minimum dielectric voltage |
| Black thermoset base |
| Black thermoset cover (top) |
| Corrosion resistant zinc plated steel one-piece mounting strap |
