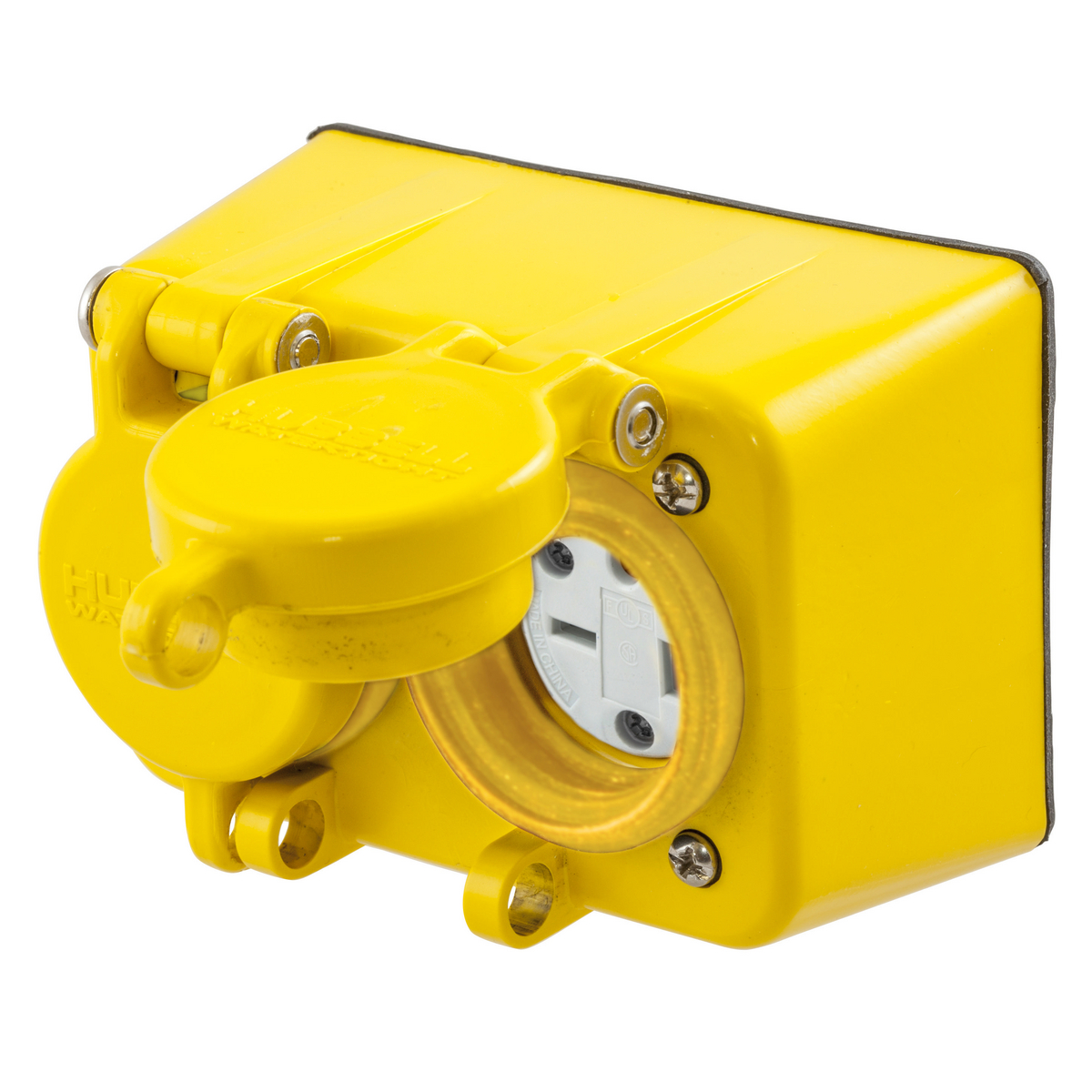

Hubbell Wiring Device-Kellems HCI HBL60W48D WATERTIGHT 20A/250V,
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HCI HBL60W48D WATERTIGHT 20A/250V,
SKUPDW~11470158
MFGR #HBL60W48D
Your Cost: $161.00/ea
List: WATERTIGHT 20A/250V, 6-20 DUPLX REC
WATERTIGHT 20A/250V, 6-20 DUPLX REC
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL60W48D Connection Terminal Screws Country of Origin CN Currency USD Enclosure NEMA 4/4X/12/6/6P Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.9000 lb Gross Weight per Pack Metric 0.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 2.70 in Height [Metric] 6.8580 cm Horsepower 2 hp Length 4.50 in Length [Metric] 11.4300 cm Material Composite Mounting Mounting Screws NEMA Rating 6-20R Number Of Poles 2 Phase 1 Returnable N Size Standard Sized Product Standard UL498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedCSA C22.2 No. 42NEMA WD1/WD6UL 498 Sub Brand Straight Blade Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358552873 UPC 12 783585528731 Wattage 5,000 W Width 3.10 in Width [Metric] 7.8740 cm Wire Size #14 AWG to #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Yellow Number of Wires 3 Voltage Rating 250 V Industrial/Commercial Standard Product Impact resistant PBT lid, cover plate and receptacle body Thermoplastic elastomer seal Stainless steel hardware and corrosion resistant connection points
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL60W48D |
| Connection | Terminal Screws |
| Country of Origin | CN |
| Currency | USD |
| Enclosure | NEMA 4/4X/12/6/6P |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.9000 lb |
| Gross Weight per Pack Metric | 0.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 2.70 in |
| Height [Metric] | 6.8580 cm |
| Horsepower | 2 hp |
| Length | 4.50 in |
| Length [Metric] | 11.4300 cm |
| Material | Composite |
| Mounting | Mounting Screws |
| NEMA Rating | 6-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | Standard Sized Product |
| Standard | UL498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedCSA C22.2 No. 42NEMA WD1/WD6UL 498 |
| Sub Brand | Straight Blade |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358552873 |
| UPC 12 | 783585528731 |
| Wattage | 5,000 W |
| Width | 3.10 in |
| Width [Metric] | 7.8740 cm |
| Wire Size | #14 AWG to #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Industrial/Commercial |
| Standard Product |
| Impact resistant PBT lid, cover plate and receptacle body |
| Thermoplastic elastomer seal |
| Stainless steel hardware and corrosion resistant connection points |
